Valley UNDERMOUNT - Installation Phase 1: Framing and Rough-in; Construct Framing; Install Rough Plumbing; Install Bathtub Drain

website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124
UNDERMOUNT
BATHTUB
INSTALLATION GUIDE
4
01
Make sure the suboor is level.
Provide drain access from below.
Provide access to all plumbing connections.
Observe all local building and plumbing codes.

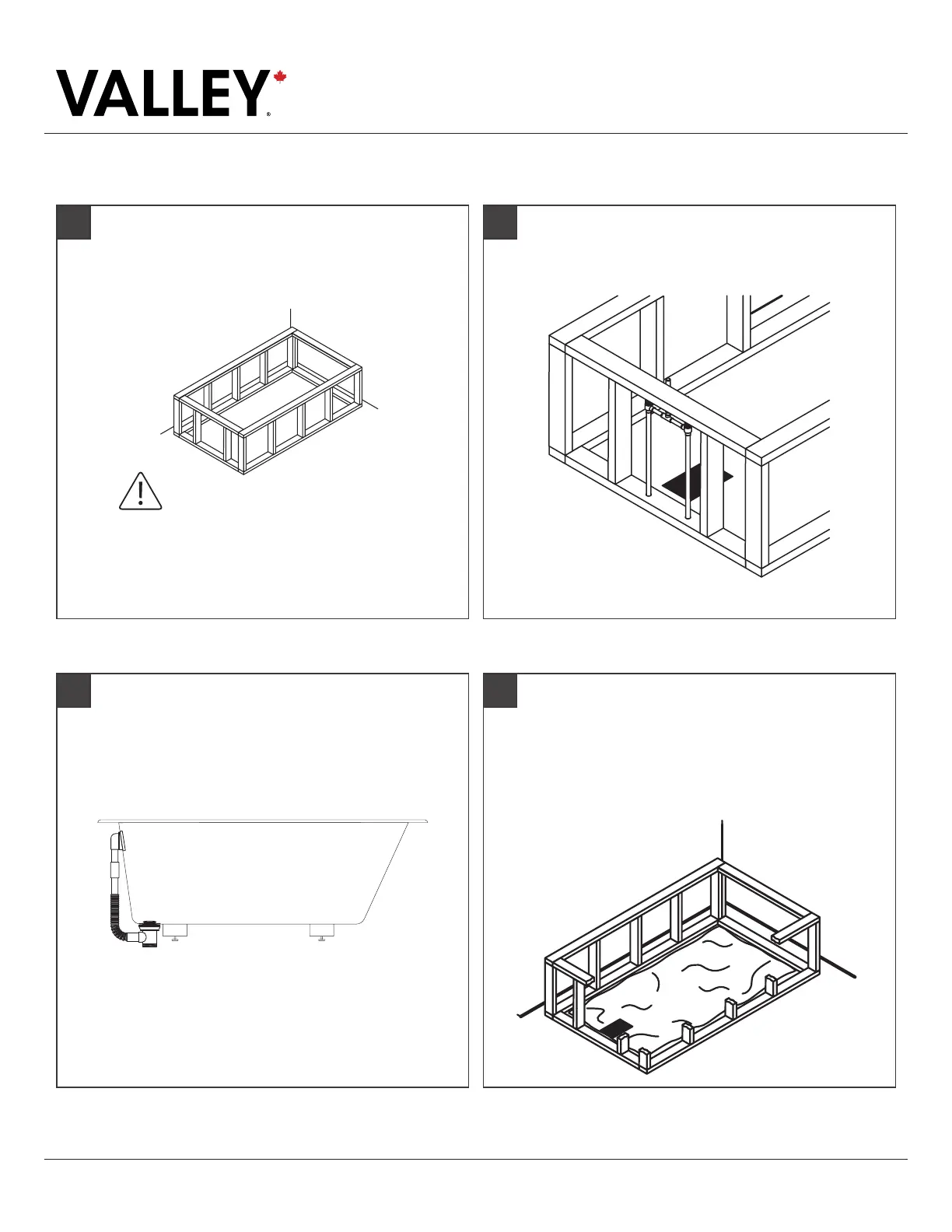

A. Construct the framing.
Refer to the bathtub specication sheet.
We recommend to install Valley Acrylic
A18305 / A18305XL Bathtub Drain
A. Install bathtub drain
03
A. Install the rough plumbing.
02
04.A
A. Mortar Bed Use:
Lay plastic lm on wooden
suboors if desired to prevent
water absorption.
