5.9 INSTALL FACIA OUTER SURROUND TO FRONT
FRAME
The outer surrounds are supplied disassembled.
The top and side channels will have to be
connected as described below.
5.9.1 With #777FSK 4” beveled trim
5.9.1.1 Assemble the two outer surround sides to the top
cross piece using four nuts, screws and washers
provided (fig. 20).
5.9.1.2 Attach the outer facia to the front frame with the
four nuts, bolts and washers supplied (fig. 21).
5.9.2 With #778FSK or #779FSK 2½” contoured trim
5.9.2.1 Assemble the left and right side channels to the top
channel using the corner fixing brackets and 8
thread cutting screws provided (fig.22).

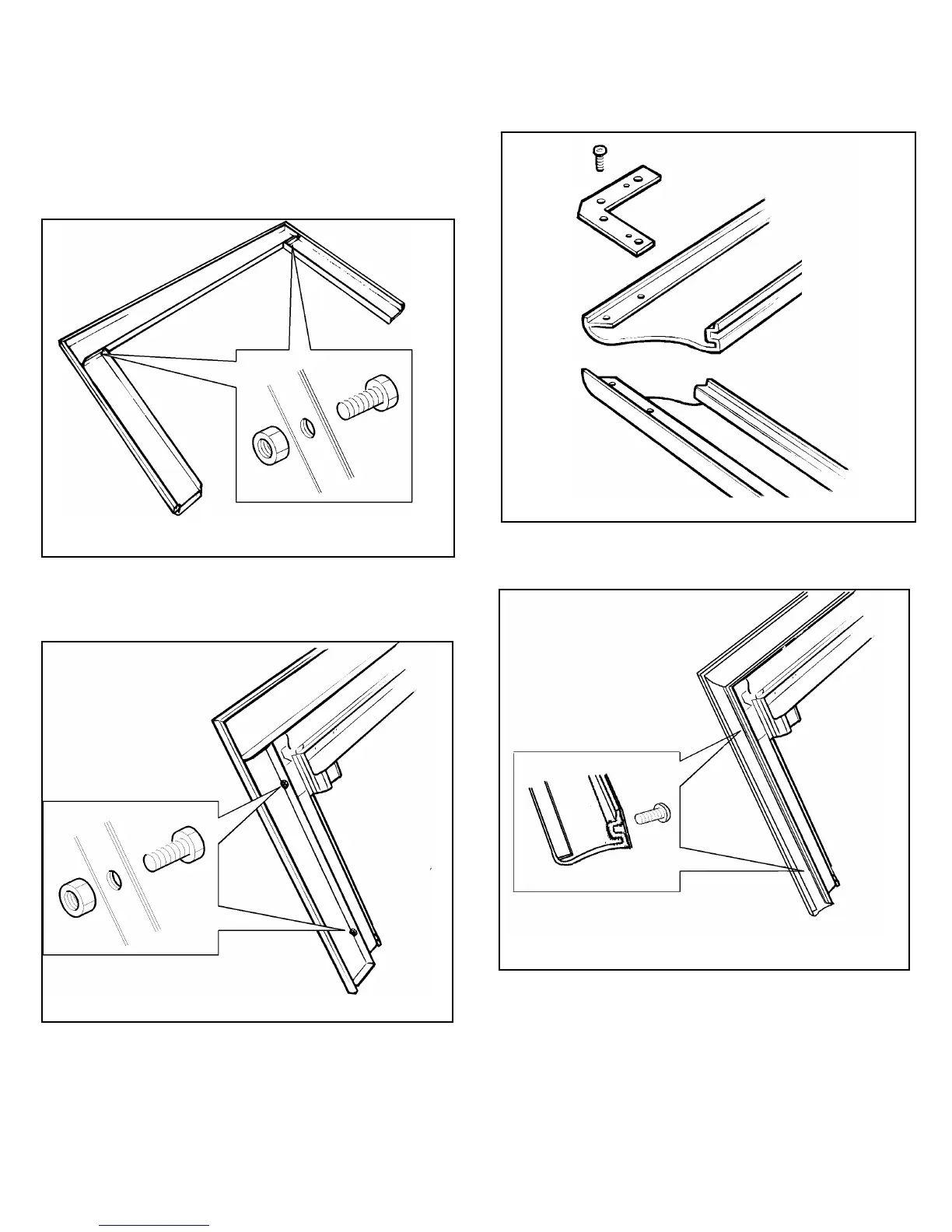

Fig. 22 #778FSK and #779FSK assembly
Fig. 20 #777FSK assembly
5.9.2.1 Attach the outer facia to the front frame with 4
thread cutting screws provided (fig.23).
Fig. 23 #778FSK and #779FSK surround to front frame
attachment
Fig. 21 #777FSK surround to front frame attachment
16
