Valor DD-858W User Manual

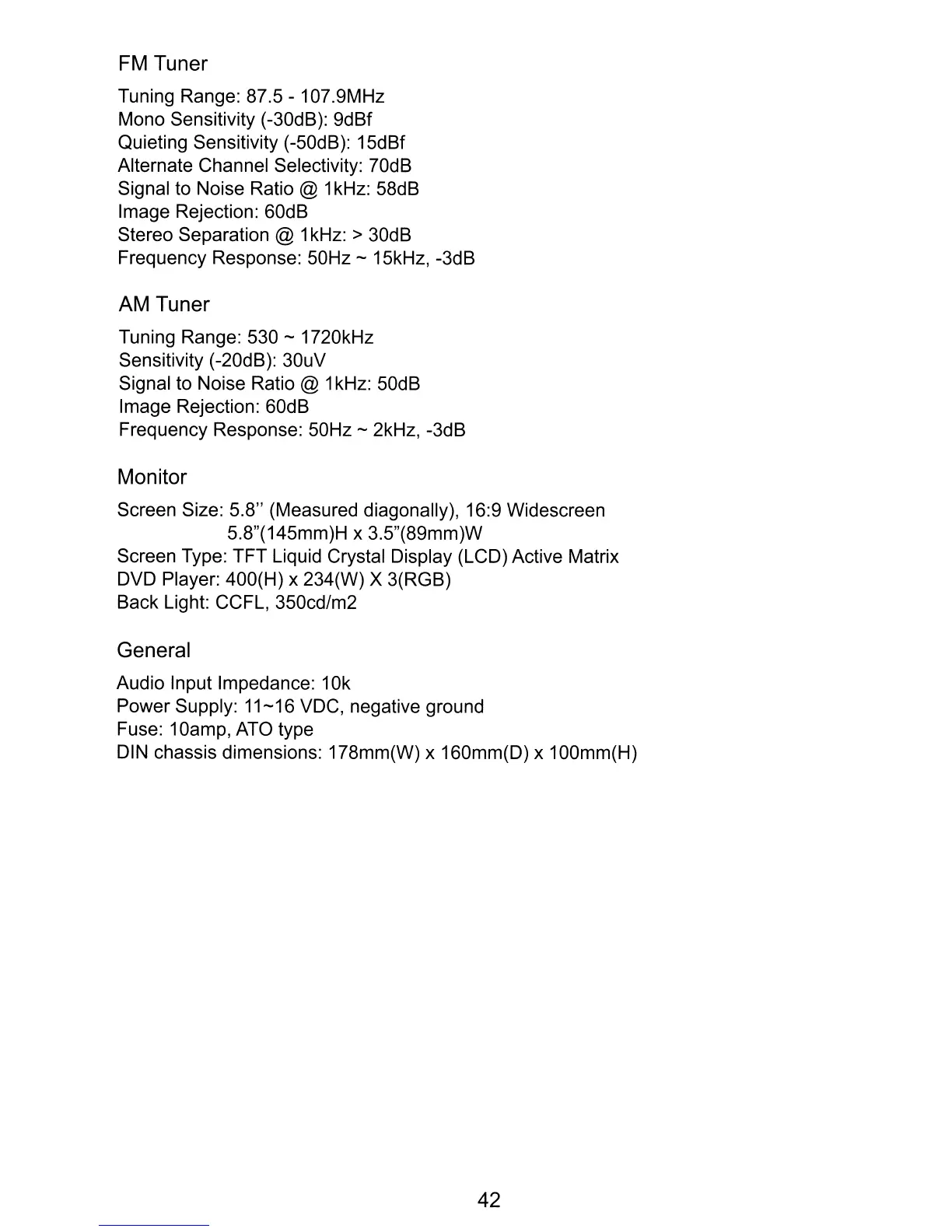

FM Tuner
Tuning Range: 87.5 - 107.9MHz
Mono Sensitivity (-30dB): 9dBf
Quieting Sensitivity (-50dB): 15dBf
Alternate Channel Selectivity: 70dB
Signal to Noise Ratio @ 1kHz: 58dB
Image Rejection: 60dB
Stereo Separation @ 1kHz:
> 30dB
Frequency Response: 50Hz - 15kHz, -3dB
AM Tuner
Tuning Range: 530 - 1720kHz
Sensitivity (-20dB): 30uV
Signal to Noise Ratio @ 1kHz: 50dB
Image Rejection: 60dB
Frequency Response: 50Hz - 2kHz, -3dB
Monitor
Screen Size: 5.8" (Measured diagonally), 16:9 Widescreen
5.8"(145mm)H x 3.5"(89mm)W
Screen Type: TFT Liquid Crystal Display (LCD) Active Matrix
DVD Player: 400(H) x 234(W) X 3(RGB)
Back Light: CCFL, 350cd/m2
General
Audio Input Impedance: 10k
Power Supply:
11-16 VDC, negative ground
Fuse: 10amp, ATO type
DIN chassis dimensions: 178mm(W) x 160mm(D) x 100mm(H)
42

Valor DD-858W Specifications

General

Brand	Valor
Model	DD-858W
Category	Car Video System
Language	English
