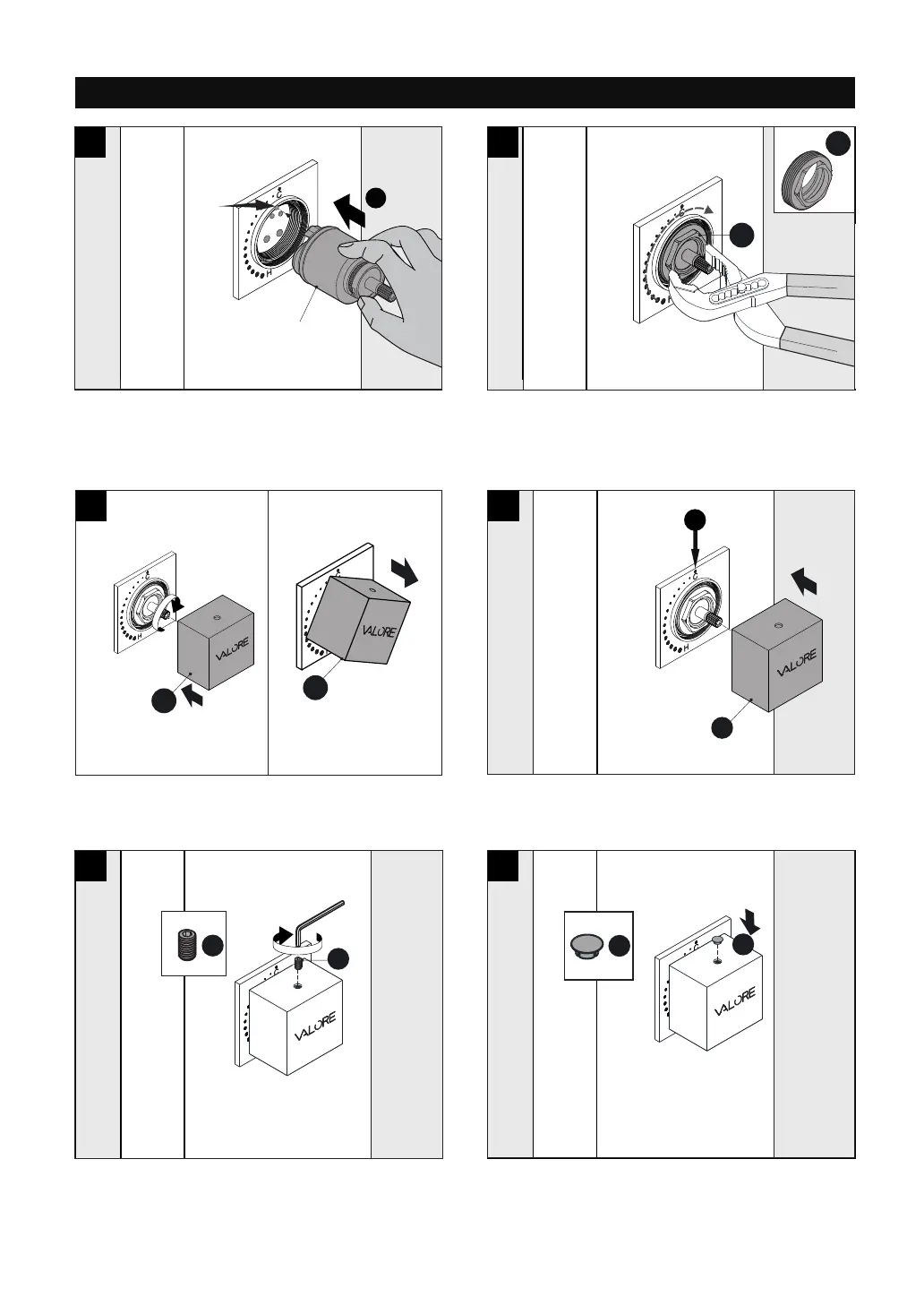

How to install the Pressure Balance Valve
• Place the Pressure Balance valve (#10), into the valve
body. Note the one pillar on the bottom of the Pressure
Balance valve (#10) must be aligned with the hole in
the rear of the body.
1
Pressure Balance valve
10
• Tighten the gland nut (#9). Take precaution to avoid
scratching the trim plate. Do not force the nut too tightly.
2
9
9
• Replace the cover (#3) and nish the install.
• Tighten the set screw (#1) to secure it. Do not
overtighten.
• Reinstall the knob (#8) with the handle pointing towards
the “C” position.
4
• Using the knob (#8), rotate the valve counter clockwise
to its fully closed position.
3
8
8
8
C
- 14 -
6
5
1
3
3
1
(2.5 mm)
