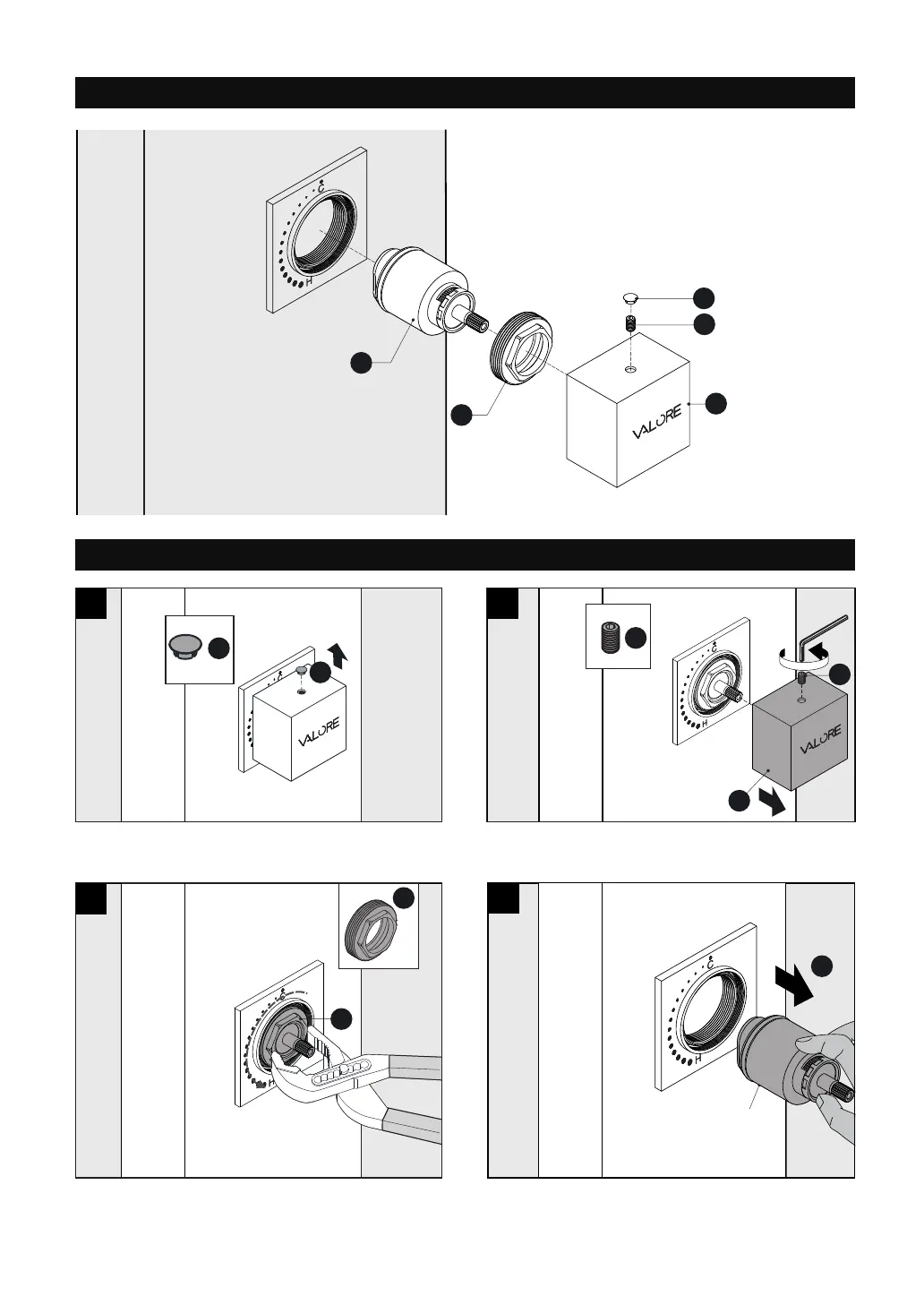

Pressure Balance Valve Structure
How to Remove the Pressure Balance Valve
Pressure Balance valve
9
10
3
1
8
• Remove the cover (#3) to open the set screw access hole. • Loosen the set screw (#1) from the valve stem and pull
the knob (#8) straight out.
1
3
3
2
(2.5 mm)
8
1
1
• Loosen and remove the gland nut (#9).
3
9
9
• Remove the Pressure Balance valve (#10) by pulling it
straight out.
4
10
Pressure Balance valve
