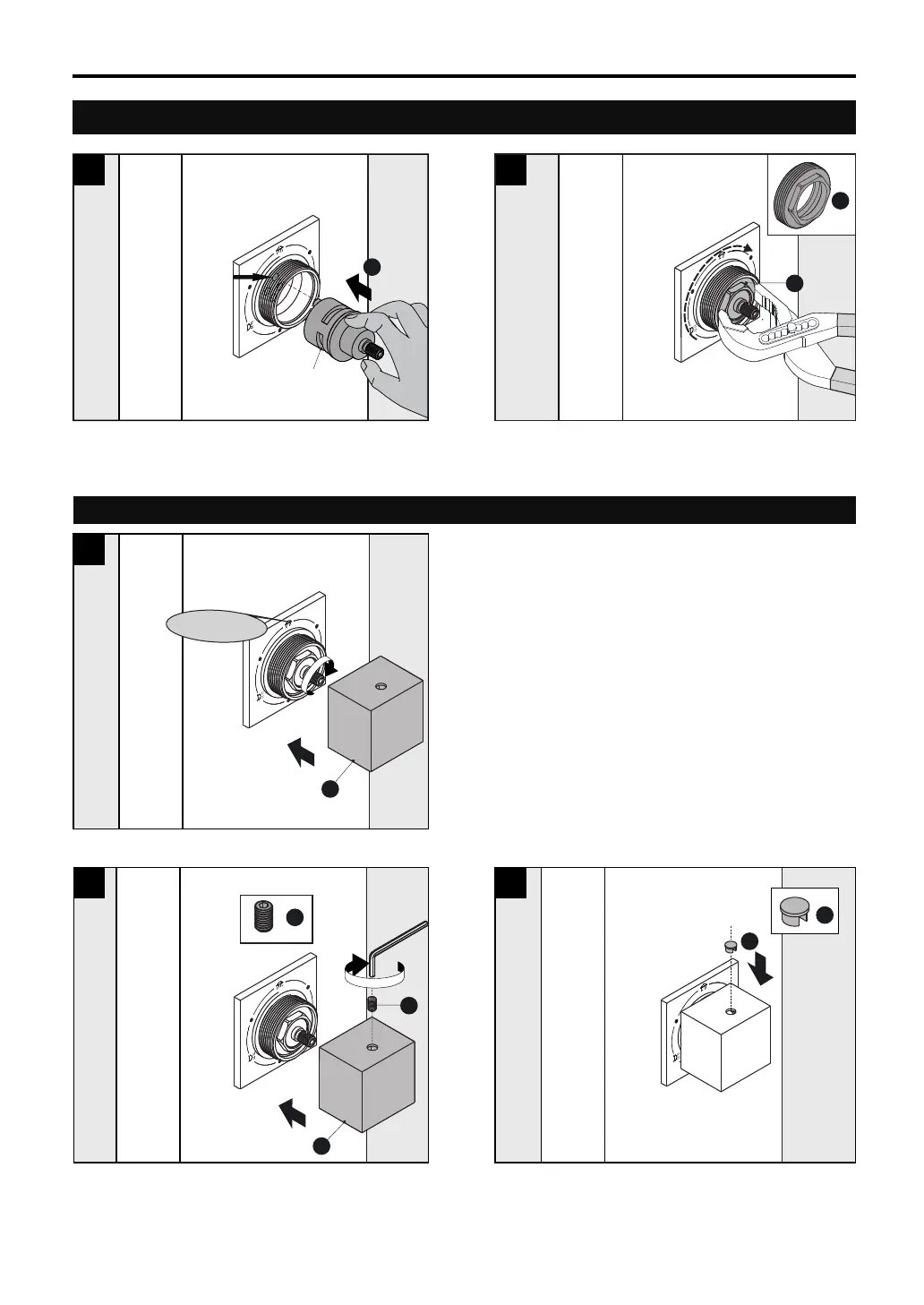

How to Install the Diverter Valve
3
Adjust the knob with right position
2
• Replace the knob (#2) on the valve stem.
• Before securing the knob, turn on the water to know
which way the handle is to be pointed.
5
4
• Replace the cover (#3) and nish the install.• Once the correct position of the knob has been
determined, place the knob on the valve stem and
tighten the set screw (#1). Do not overtighten.
5
Diverter valve
• Place the Diverter valve (#5) into the valve body. Note
the one pillar on the bottom of the Diverter valve (#5)
must be aligned with the hole in the rear of the body.
2
4
2
• Tighten the gland nut (#4). Take precaution to avoid
scratching the trim plate. Do not force the nut too
tightly.
4
(2.5 mm)
2
1
1
3
3
Shower Head Mode
- 12 -
