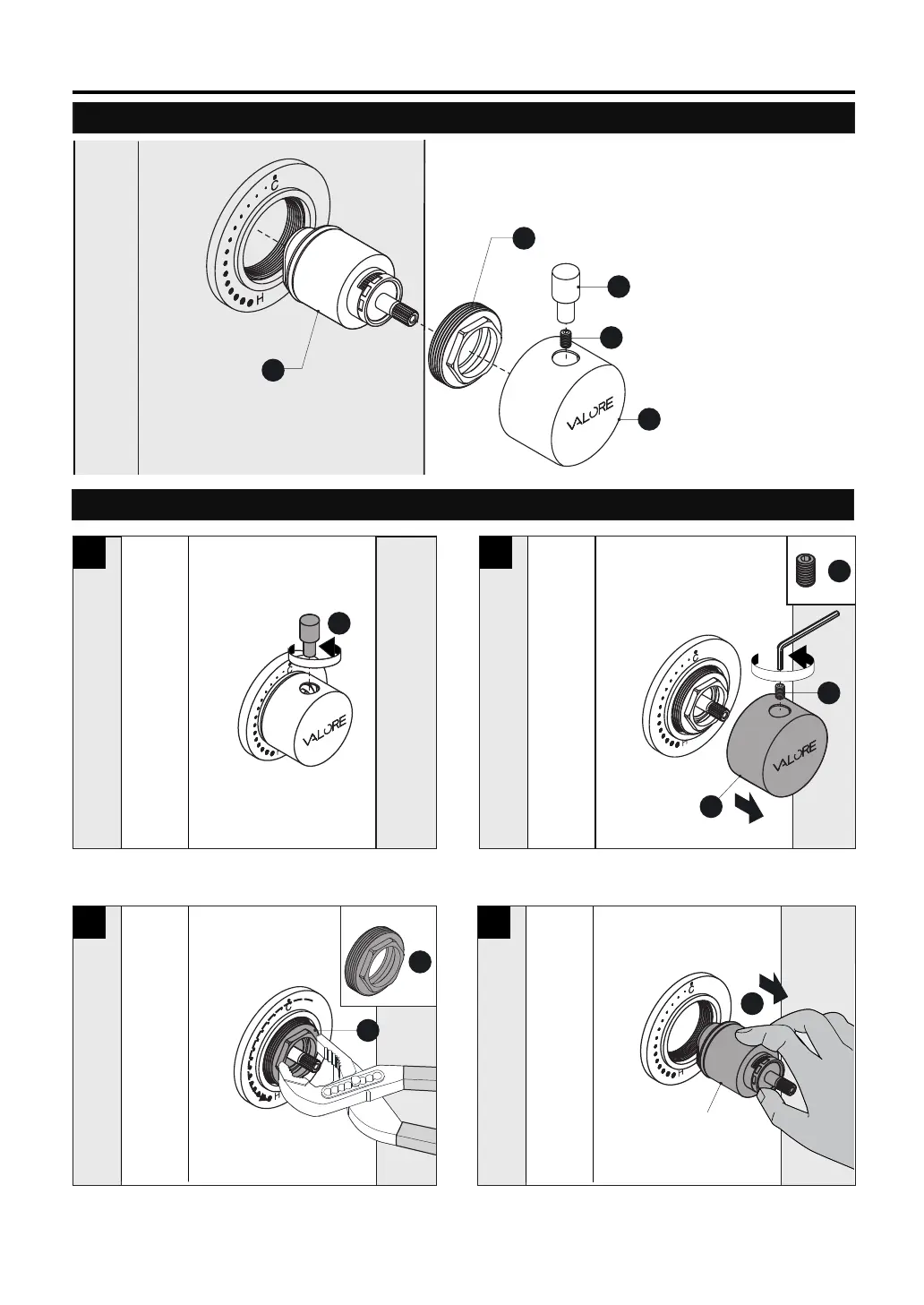

Pressure Balance Valve Structure
How to Remove the Pressure Balance Valve
Pressure Balance valve
• Remove the handle to open the set screw access hole.
1
• Loosen the set screw (#1) from the valve stem and pull the
knob (#8) straight out.
2
(2.5 mm)
• Loosen and remove the gland nut (#10).
3
• Remove the Pressure Balance valve (#11) by pulling it
straight out.
4
Pressure Balance valve
10
10
11
8
1
1
9
1
8
10
11
9
