• Place the Pressure Balance valve (#11), into the valve
body. Note the one pillar on the bottom of the Pressure
Balance valve (#11) must be aligned with the hole in the
rear of the body.
1
Pressure Balance valve
• Tighten the gland nut (#10). Take precaution to avoid
scratching the trim plate. Do not force the nut too tightly.
2
• Tighten the handle (#9) and nish the install.
6
• Using the knob (#8), rotate the valve counter clockwise to
its fully closed position.
3
• Reinstall the knob (#8) with the handle pointing towards
the “C” position.
4
• Tighten the set screw (#1) to secure it. Do not overtighten.
5
(2.5 mm)

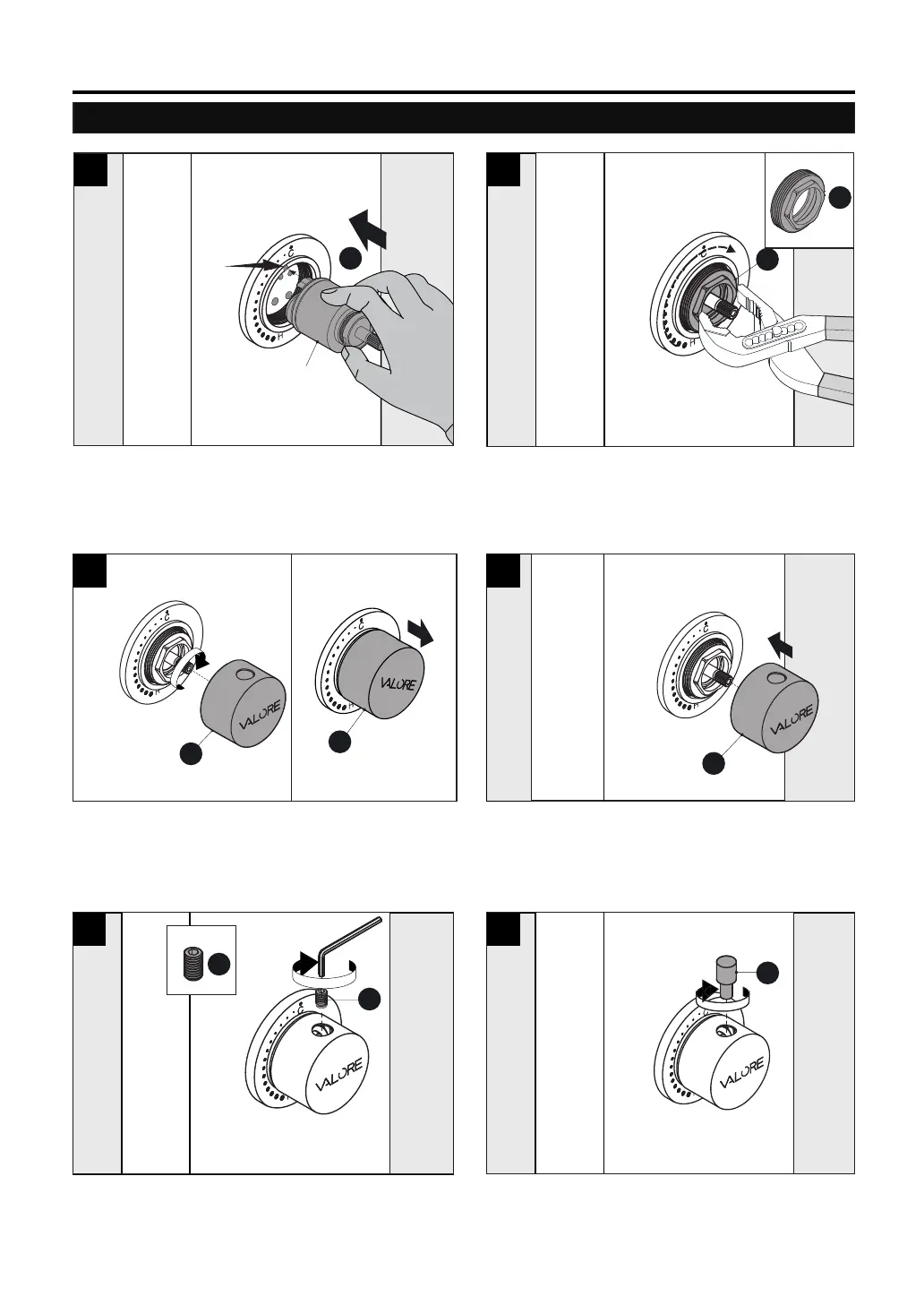

How to install the Pressure Balance Valve
10
10
11
8
8
8
9
1
1
