Valtra A85 User Manual

31
Model Code Page
21. Engine
205-- 555 210 11
1. 12. 1986

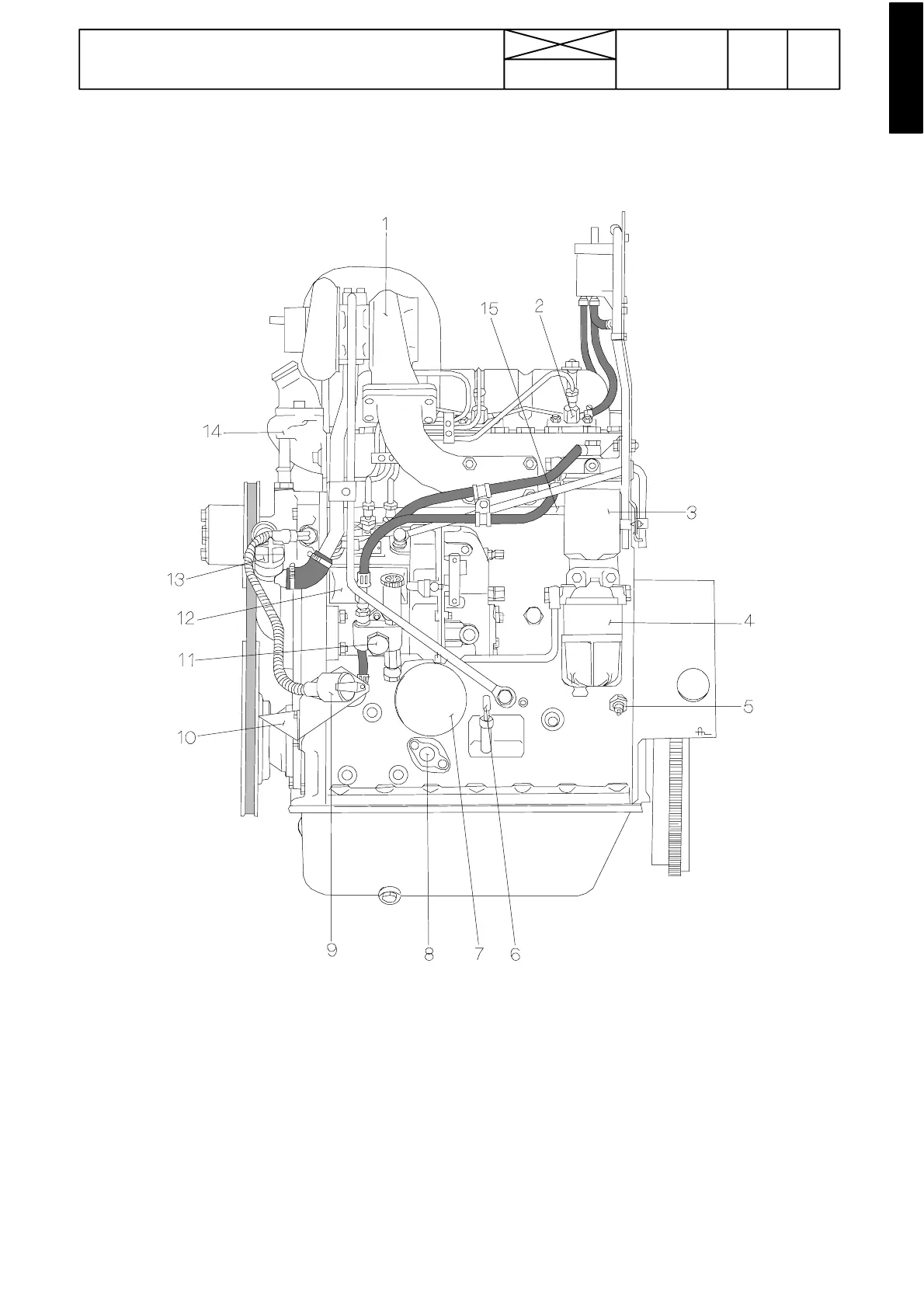

Engine, description
The engine on tractors 305---555 is a liquid---cooled, four---
stroke, turbocharged, direct---injection diesel engine. The
peripheralsof the engine are shown in Figs. 210 1 and 210---2.
309 left side
1. Turbocharger
2. Injector
3. Fuel filter
4. Water trap
5. Oil pressure gauge sender
6. Oil dipstick
7. Oil filter
8. Oil pressure relief valve
9. Engine heater
10. Timing indicator
11. Fuel feed pump
12. Fuel injection pump
13. Oil filler
14. Thermostat housing
15. Serial number

Valtra A85 Specifications

General

Engine Power	85 hp
Fuel Capacity	110 liters
Hydraulic System	Open center
PTO	540/1000 rpm
Engine Cylinders	4
Displacement	3.3 liters
Transmission	12F+12R
Rated engine power	63 kW
Gears	12 forward / 12 reverse
Max. lift capacity	3, 500 kg
