Position Capacity (A) Fuse
F13 15 Brake lamp
F14 10 Work lamp and reverse alarm
F21 5 Dashboard
F22 10 Telemetry
F23 10 Continuous flow
F24 15 Diagnostic connector (12 V)
F25 3 ECU for the engine
F26 25 Starter motor

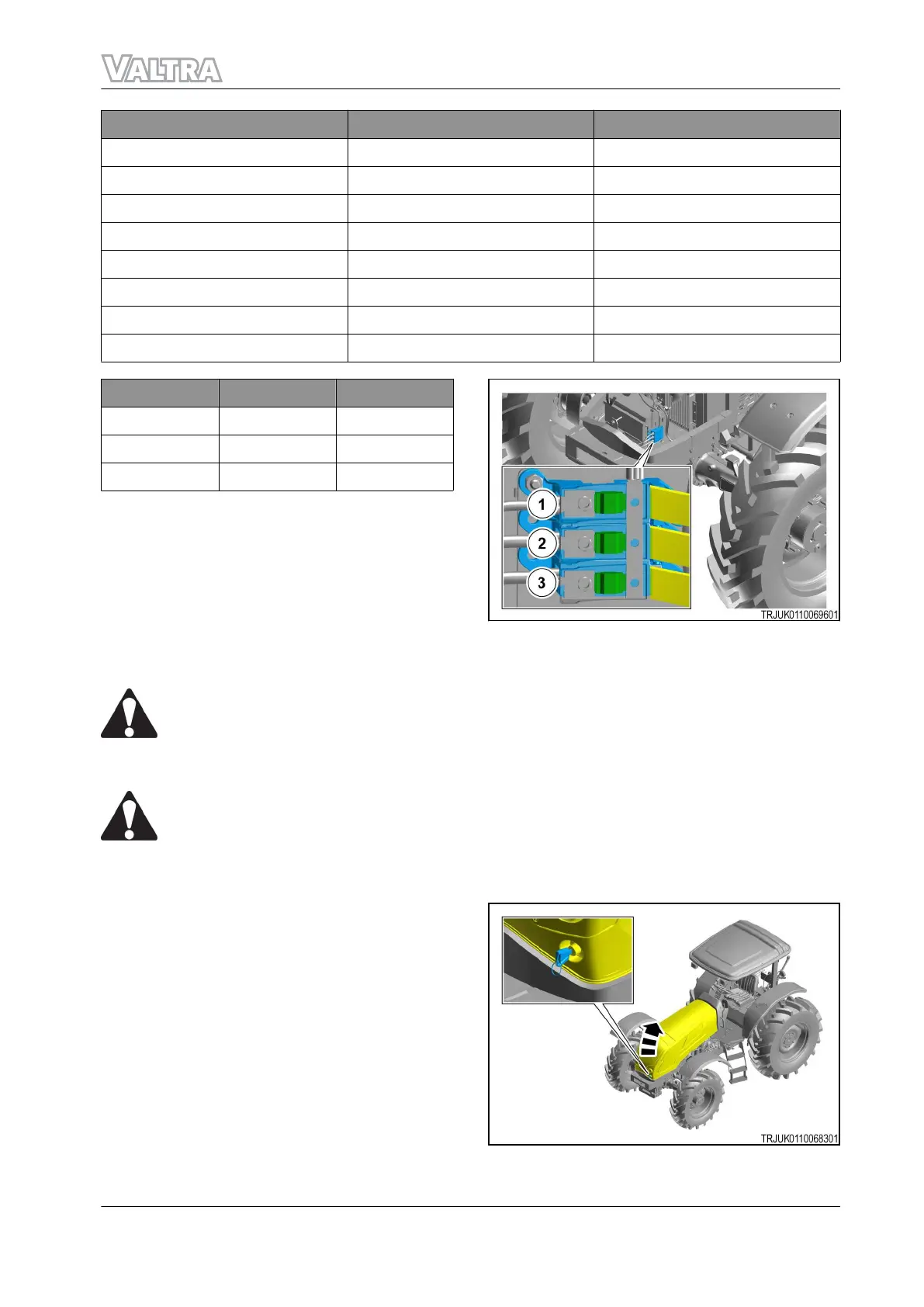

Position Capacity (A) Fuse
(1) 40 Starter motor
(2) 80 ECU
(3) 100 Generator
GUID-ED2F27DF-3BF1-4677-BB1F-F6401FB7BC28-high.jpg [High]
Fig. 9
Before starting the procedure
WARNING: The machine can move without warning.
The machine is heavy and can cause death or injury.
Park the machine on a clean, hard and level area. Set the parking brake to ON and install
the wheel chocks.
WARNING: The machine has parts that move without operator input.
The parts that move can hit persons.
Stop the engine on the machine and remove the ignition key.
Procedure
1. Make sure that all electrical systems are OFF.
2. Unlock and lift the engine cover.
3. Go to the necessary fuse box location.
4. Remove the cover.
5. Remove the fuse that caused the
malfunction.
6. NOTE:
Make sure that you replace the fuse with the
same or equivalent specifications.
Replace the broken fuse.
7. Install the cover.
GUID-F88F4AA6-6AA6-492C-8396-739D8E72969C-high.jpg [High]
Fig. 10
1. Introduction
1-29
ACX2831410
