Your ventilation system is equipped with a heat recovery core specifically designed to control excess
humidity and reduce ventilation costs by recovering the heat energy from the exhausted air, and
using that same heat energy to warm the fresh air being supplied. This heat recovery process is
accomplished in such a way that the stale air is never mixed with the fresh air.
1.3 RECOVERY
EXAMPLE (IN WINTER)

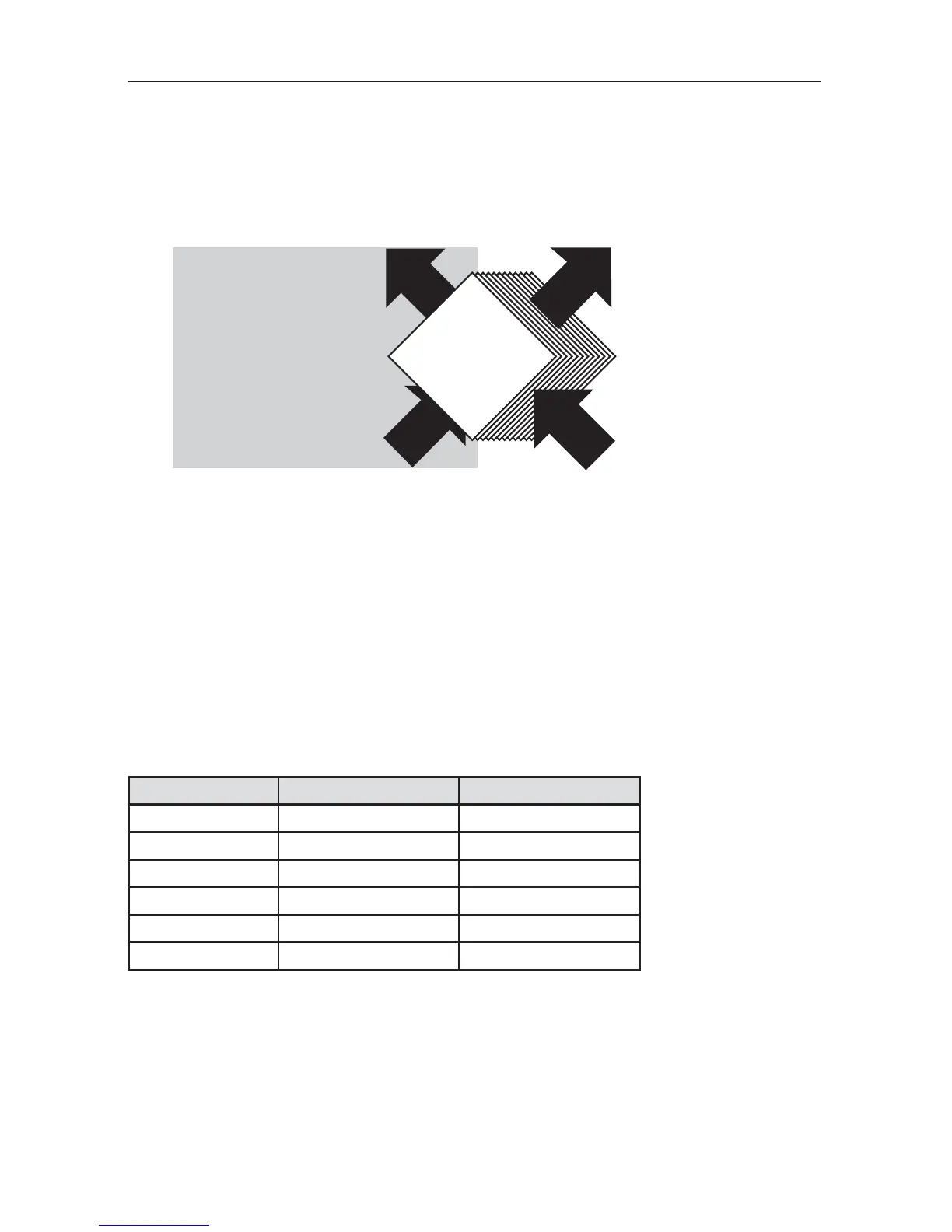

VF0026
OUTDOORS
INDOOR
Stale air to outdoors
6°C/42°F
Fresh air from outdoors
0°C/32°F
Fresh air to building
16°C/61°F
Stale air from building
22°C/72°F
When the outdoor temperature is below -5°C (23°F), heat recovery creates frost in the module. To
maintain its proper operation, the unit is programmed to defrost the recovery module. The defrost
frequency varies according to the outdoor temperature. Defrost lasts 7 minutes for 100H model and
6 minutes for 200H model (or 10 minutes for both models if set on “Extented Defrost”). During the
defrost cycle, the unit shifts to maximum speed and the dampers close.
After defrosting, the unit returns to the operating mode selected by the user.
1.4 DEFROST MODE
1. YOUR UNIT AND ITS PURPOSE (CONT’D)
MODEL 100H 200H
WIDTH 30¼" 30¼"
HEIGHT 16½" 16½"
DEPTH 178" 178"
WEIGHT 65 LB. (29.5 KG) 65 LB. (29.5 KG)
E
LECTRICAL SUPPLY 120 V, 60 HZ 120 V, 60 HZ
POWER CONSUMPTION 160 WATTS 195 WATTS
1.5 SPECIFICATIONS
