VM-5500 Operator’s Manual
Rev 0418.1 | Optional Setup
To select the desired Sensor type Press on the Sensor Selection button. This button will provide a
selection dialog box as follows. The list includes Off, Raven – Pressure, Dickey John – Pressure, Dickey
John – Vacuum and John Deere – Vacuum.

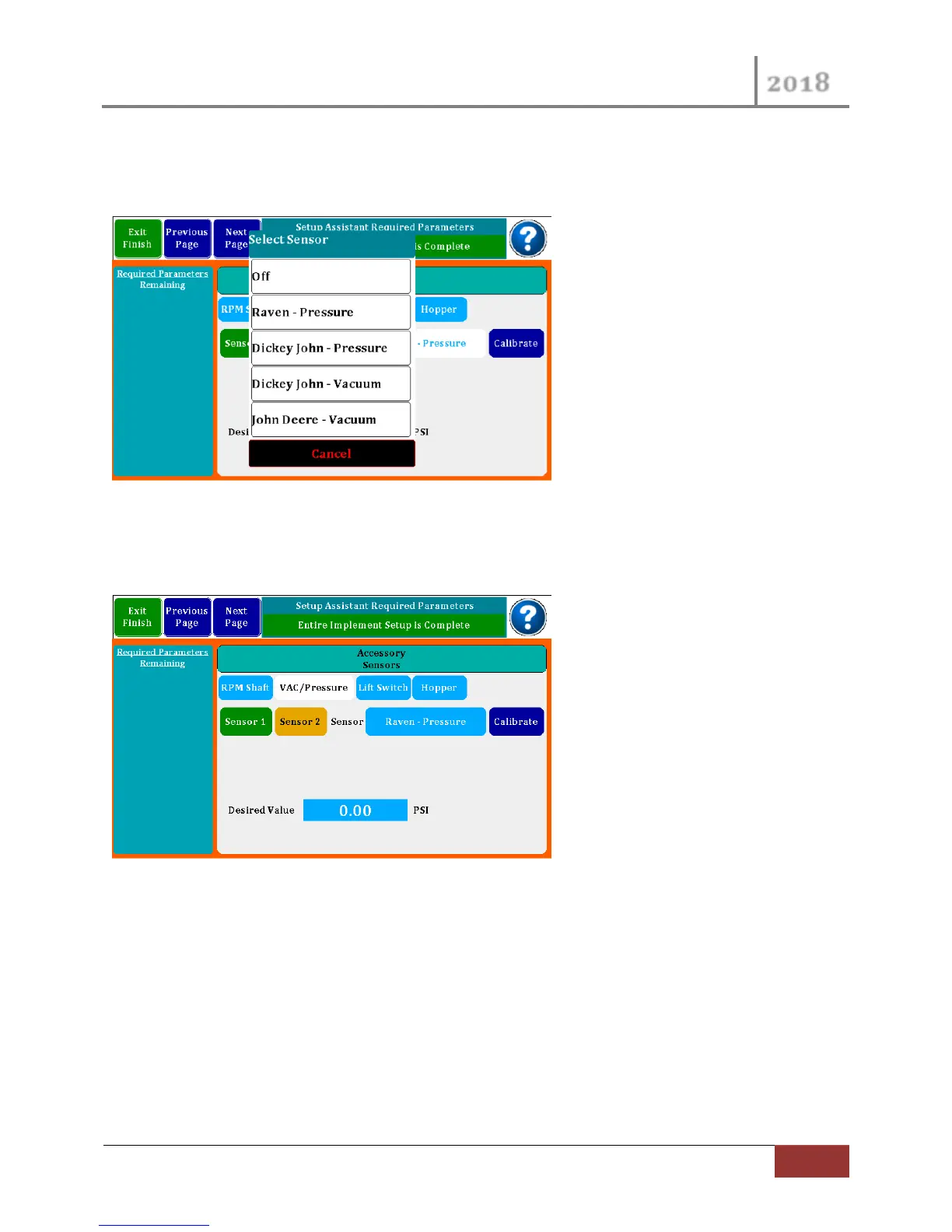

Figure 18 VAC / Pressure Sensor Select
After you Select your Sensor, you will again have to Enter the Desired Values just as you did for the RPM
and Product Sensors.
The Raven- Pressure Sensor requires a calibration. You may press the “Calibrate” purple button to
calibration your sensor. When you do this the following screen will provide you with more steps.
