User Guide 7
Quick Start
3. Select Install the software automatically (Recommended), and then click
Next. If the driver is not detected automatically, you can browse to the folder
containing the driver (default path C:\Program files\Vansco\USB-DLA).
4. After installation is finished, click Finish. The USB DLA is now recognized
and ready to be used.
See the Parker Vansco USB DLA kit user manual for more detailed instructions.
2.3. Connect the VMM1615 to a Development
System
It is a good idea to connect the VMM1615 to a development system (PC,
Controller I/O Board, power source, and DLA) to verify your ladder logic
application. The development system is an ideal environment for creating and
downloading ladder logic software applications.
The following shows how to connect the VMM1615 in a development system:
Controller
DLA
I/O Board
Power
PC

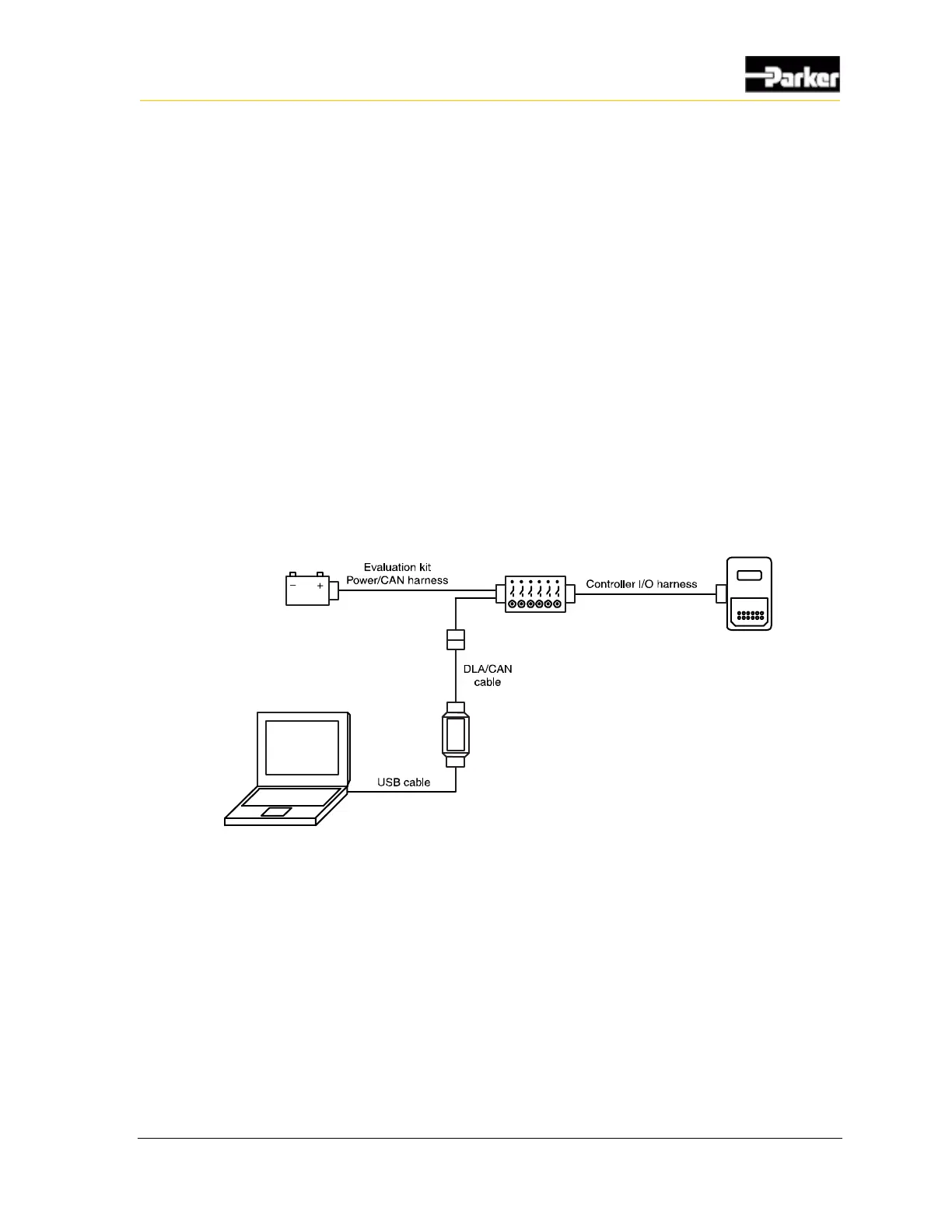

Figure 2: Development system connection
To connect the VMM1615 in a development system, do the following:
Note: Before connecting anything in the development system, ensure that the
power supply is set to a voltage that is less than 32 V DC.
1. Connect the Controller I/O harness to the VMM1615 connectors.
2. Connect the Controller I/O harness to the controller I/O board connectors.
3. Connect the evaluation kit power/CAN harness to the controller I/O board’s
JP3 connector.
