6
Assembly Instructions

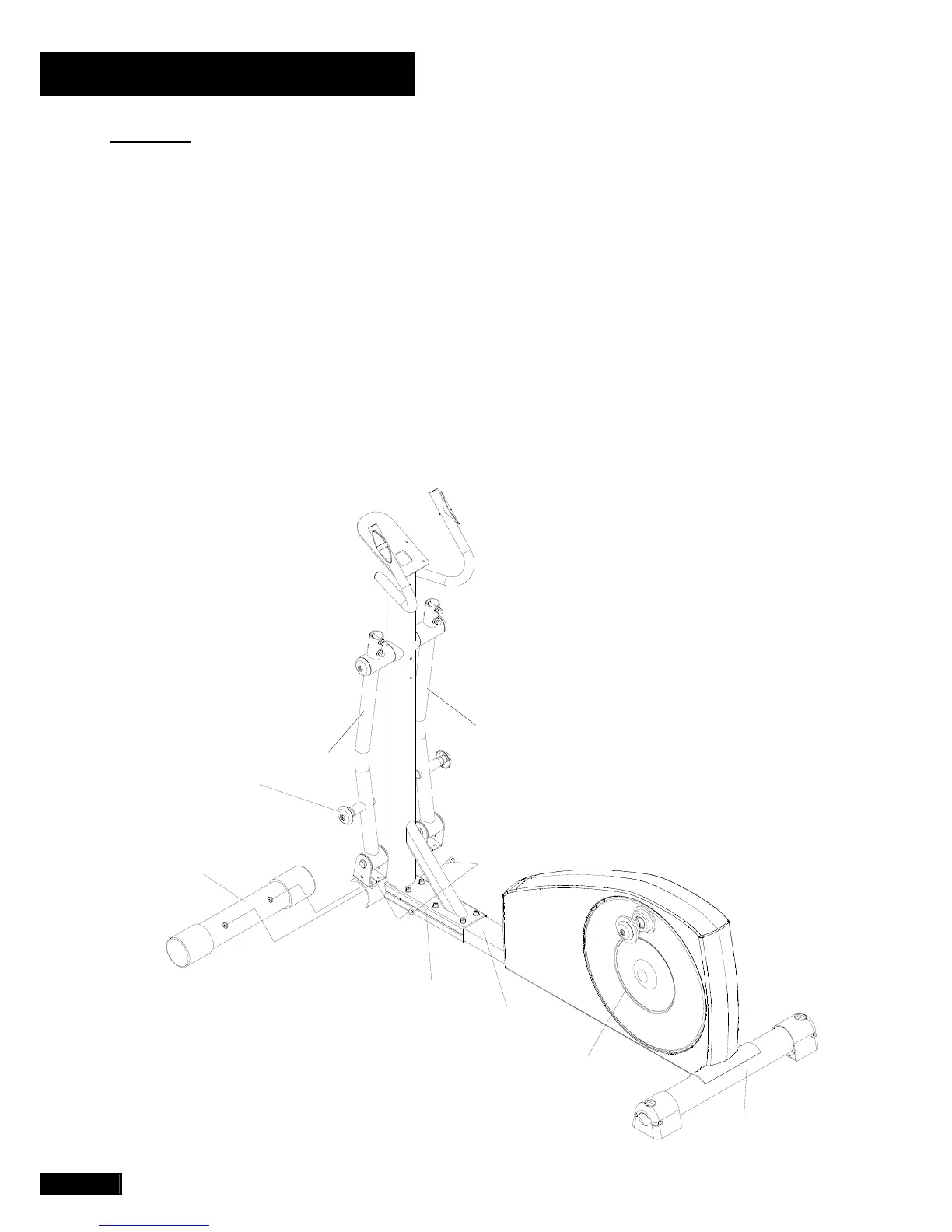

STEP 4
Attach the Front Stabilizer (M) to the Handlebar Post (B) using 2 Allen Bolts (05).
Remove the preassembled parts on the Steel Disc (N) and the Axle (D1) on the
Movable Handlebar Post (D/C) and set all of these removed parts aside, do not
mix them up (see diagram in STEP 6 for the parts needed to be removed and
then reassembled later in STEP 6). On the Steel Disc Axel (N) unscrew and
remove one Allen Bolt (16), one Washer (15), one Protecting Cover (14), one
Washer (15), one Snap-Ring (04), one Washer (03), the Plastic Roller (P), one
Wave Washer (86) and one Bushing (02). Next on the Axle (D1) of the Movable
Handlebar Post (D/C) unscrew and remove one Allen Bolt (16), one Washer (15),
One Protecting Cover (14), one Washer (15) and one Snap-Ring (04). Repeat
steps above on the other side of the Steel Disc Axle (N) and the Axle (D1) on
the Movable Handlebar (D/C).
M
05
B
A
D
C
L
M
D
C
D1
N
To Next Page
