Vapac LR10 - Page 5

LR UNIT A B L H min H1 H2
LR5 & LR5P 377 205 80 1000 500 200
LR10 & LR10P 377 205 80 1000 500 250
LR20 & LR20P 435 205 80 1000 500 500
LR30 & LR30P 602 205 80 1000 500 750
Within the area of H1 or H2 above the unit nothing must protrude out from the
wall, as this will effect the natural ventilation path of the Unit.

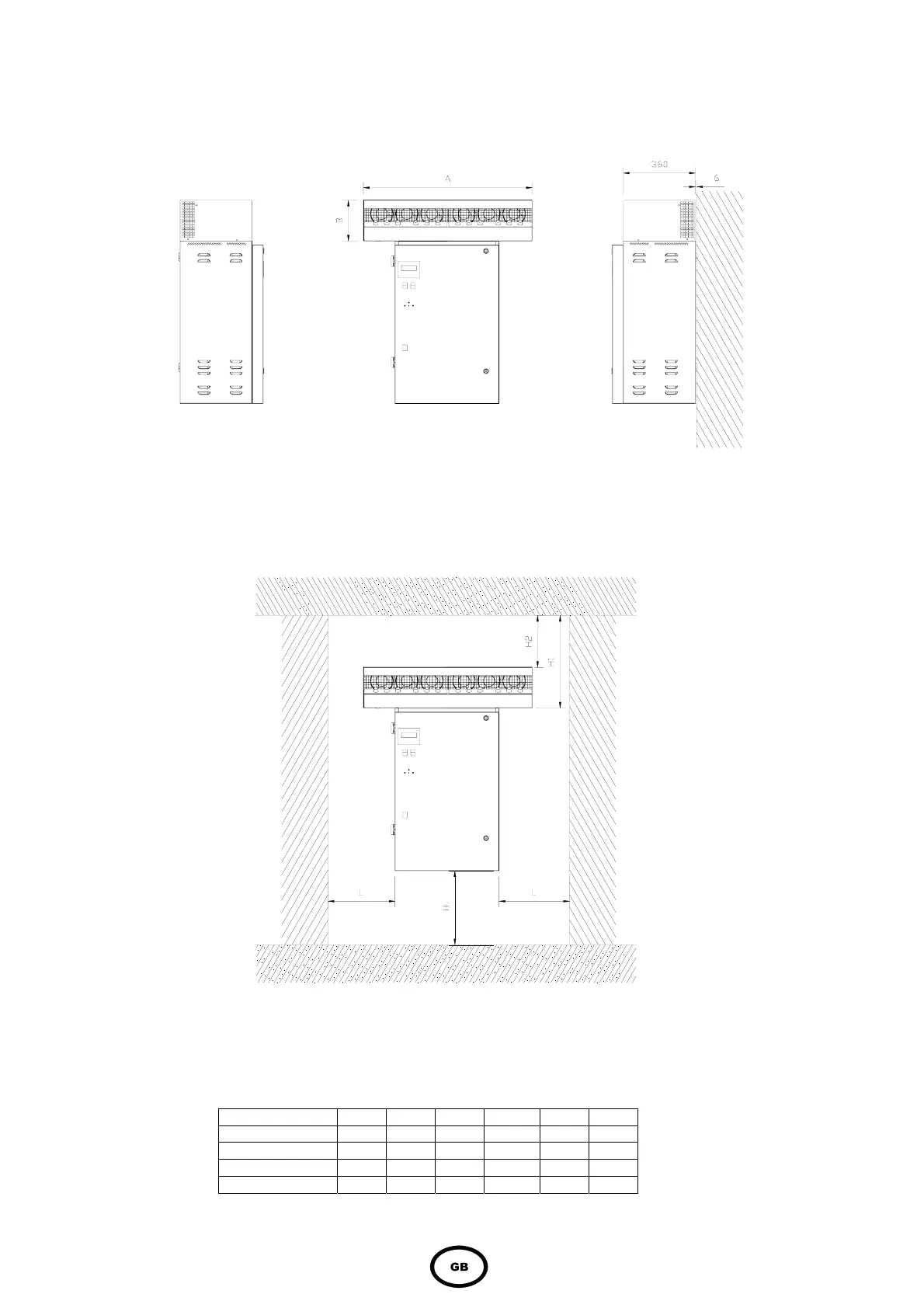

Fig 3 Clearances around LR units.
Fig 2 LR5 & LR5P to LR 30 & LR30P RDU
