8
Continual fresh air
A continual supply of fresh air is required in the
room in wich the stove is situated. This can be
achieved by installing 1-2 vents, whilst also ensur-
ring that these can not be blocked. The quantity
of air used for burning,
is approx. 20
m³ / h.
Overheating
Occors if too much wood is placed in the
stove or if the combustion receives too
much air.

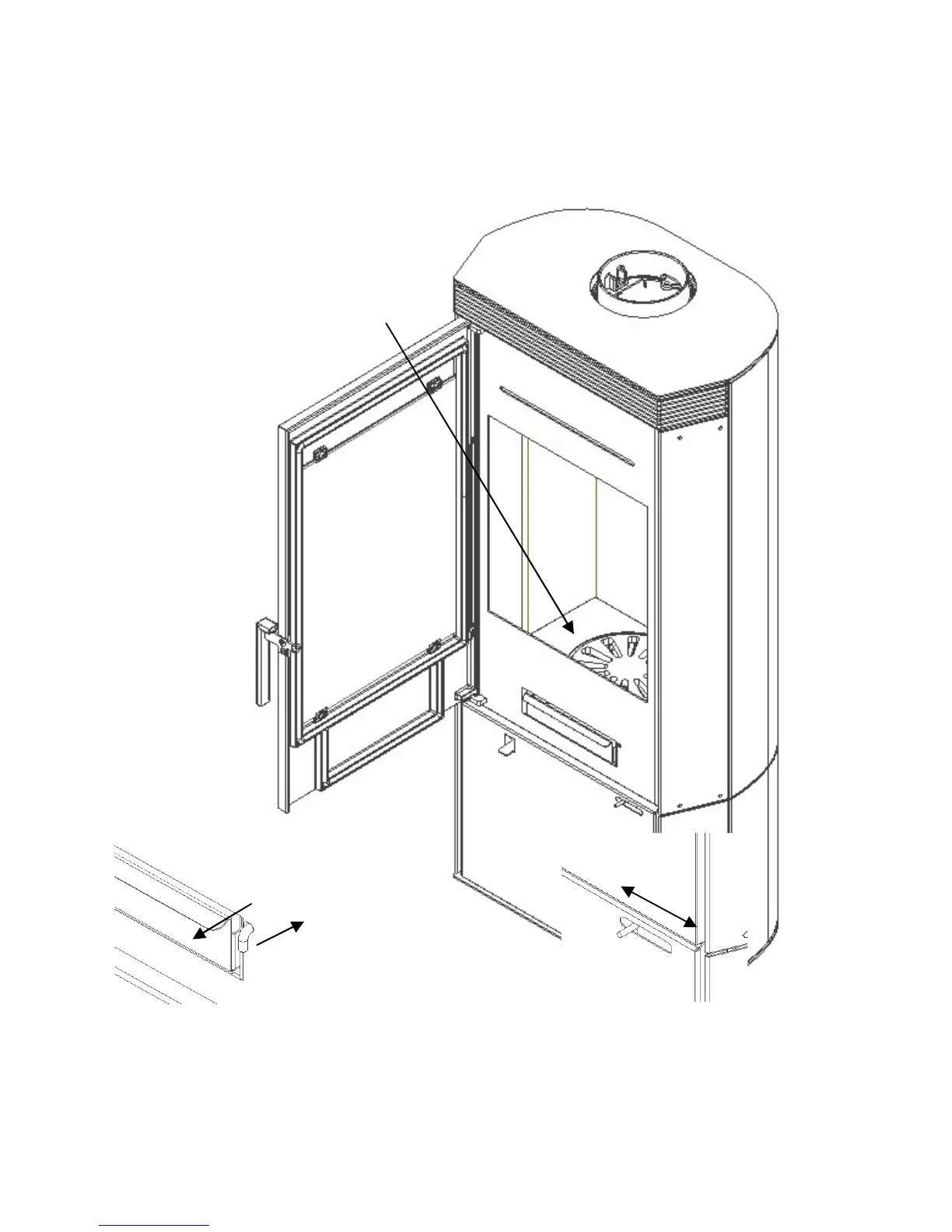

The Shake grate
The Shake grate is situated at the
bottom of the combustions chamber.
By turning the lower handle the
ashes will be shaken into the ashpan.
Combustion Air Throttel
Turn the Throttel towards left for Air Inlet.
Turn towards right to close.
The Shake grate
Operate by moving the handle inn and out.
Normaly operation of the Stove.
The handle should be in the inner positi-
on. The grate must be open.
