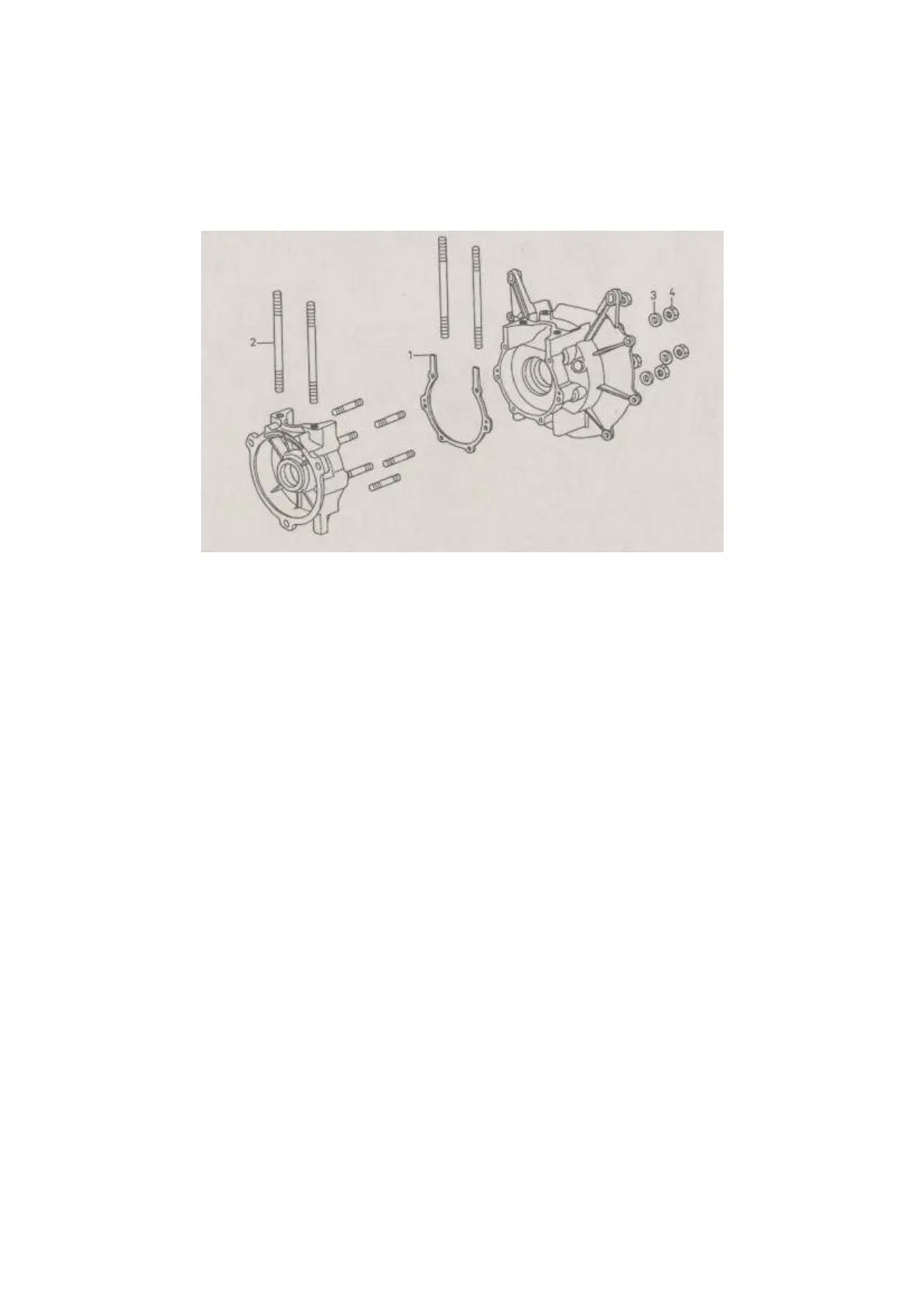

2. Crankcase

Pos. JKPOV Ordering No. Part Pcs

1. 627 832 019 003 626-2903 Crankcase sealing 1

2. 482 010 155 831 101-5581 Bolt M 8x153 ČSN 426518.52 4

3. 311 213 310 064 601-1605 Washer 6.4 ČSN 021733.05 6

4. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 6

obligatory order: crankcase-assembly: ordering no.: 960-3919

3. Cylinder with head

Pos. JKPOV Ordering No. Part Pcs

1. 482 013 066 032 130-6602 Cylinder head nut 4

2. 311 210 211 084 354-0253 Washer 8.4 ČSN 021702.15 4

3. 482 071 603 132 716-0312 Cylinder head 1

3*. 716-0324 Cylinder head 1

3**. 716-0323 Cylinder head 1

4. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 2

5. 311 214 510 064 652-1602 Washer 6.4 ČSN 021745.05 2

6. 278 432 510 097 625-1018 Sealing 2

7. 321 162 111 516 625-1017 Insulation pad 1

8. 309 276 140 620 101-5626 Bolt M 6x30 ČSN 021176.25 2

9. 482 071 607 234 716-0724 Cylinder 1

9*. Cylinder 1

10. 482 010 155 533 101-5553 Cap screw 2

11. 627 832 011 030 625-5002 Cylinder sealing 1

11*. 625-5003 Cylinder sealing 1

12*. 626-2605 Sealing under head 1

13*. 934-3103 Decompression valve 1

14*. 994-3014 Clip Gorbin 2

15*. 913-2563 Fuel hose 5x360mm 1

16**. 626-2604 Sealing under head diam. 56 mm 1

Note: Positions 13*, 14*, 15* also for engine 1454 VAPE DV CE

positions 3**,16** only for engines 1454 VAPE DV CE
