VIII. LIST OF COMPONENTS
JIKOV ENGINES
Spare parts supplied by the engine manufacturer: MOTOR JIKOV trading
Lipenská 37
370 04 ČESKÉ BUDĚJOVICE
Mail orders- Telephone 038/27801
Note: Tables include common parts for all engines. Position/s with * hold/s only for engine Model 1447 VAPE DV
CE (and if mentioned in the note below the Table also for engine Model 1454 VAPE DV CE); Position/s ** hold/s
only for engine Model 1454 VAPE DV CE. If the Position No. is listed as * or ** , the above engines are not to be
added positions without this supplementary marking.

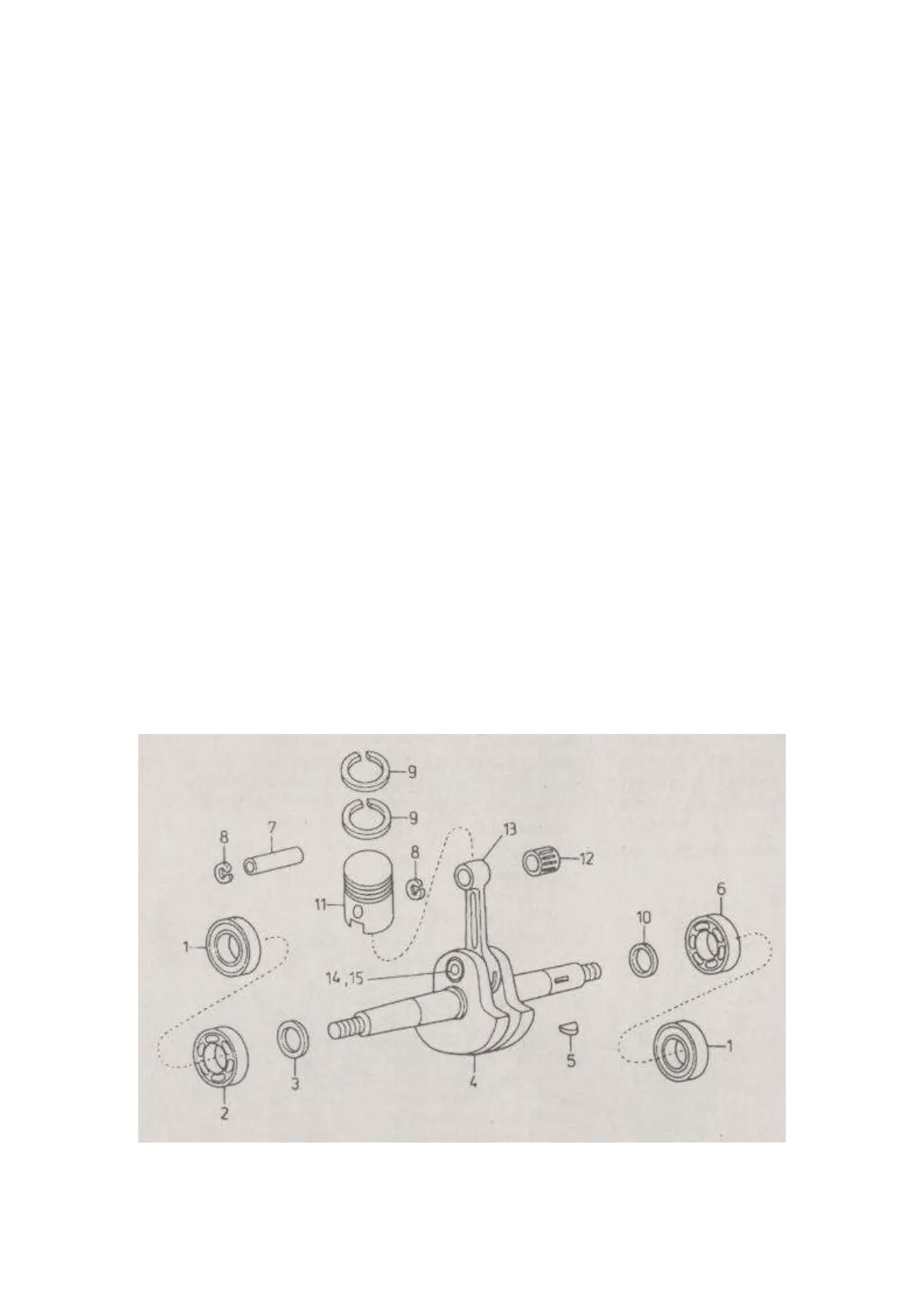

1. Crankshaft with piston
Pos. JKPOV Ordering No. Part Pcs
1. 273 521 003 717 997-3224 Gufero 17x35x10 ČSN 0294010 2
2. 324 163 020 383 994-3145 Bearing UR 6203 ČSN 024630 1
3. 482 060 102 236 601-0226 Shim block 2
4. 482 996 906 331 969-0631 Crankshaft assembly 1
5. 311 728 504 065 540-0408 Feather 3x5 ČSN 301385.11 1
6. 324 163 038 300 994-3144 Bearing 6303 UR ČSN 024630 1
7. 319 237 140 505 301-1971 Piston pin 1
8. 311 733 100 140 602-1802 Retaining ring 14 ČSN 022931 2
9. 326 070 701 310 304-3026 Piston ring 56x2 ČSN 27011.70 2
9*. 304-3048 Piston ring 60x2 ČSN 27011.70 2
10. 482 060 102 239 601-0229 Shim block 2
11. 319 231 211 290 723-0217 Piston A 56 mm 1
11*. 723-0267 Piston A 60 mm 1
12. 532 888 200 080 994-3136 Needle bearing KBK 14x17x20 INA 1
13. 482 079 304 035 793-0425 Connecting rod 1
14. 324 162 050 000 994-3130 Bearing 18x24x13 1
15. 482 030 119 832 301-1982 Crank pin 1
Parts available for engines 1453 ISKRA, 1454 VAPE, 1454 VAPE DV CE are as follows:
piston I. re-bore Drawing no.:723 0242 piston ring I. re-bore Drawing no.:304-3060
piston II. re-bore Drawing no.:723-0261 piston ring II. re-bore Drawing no.:304-3061
