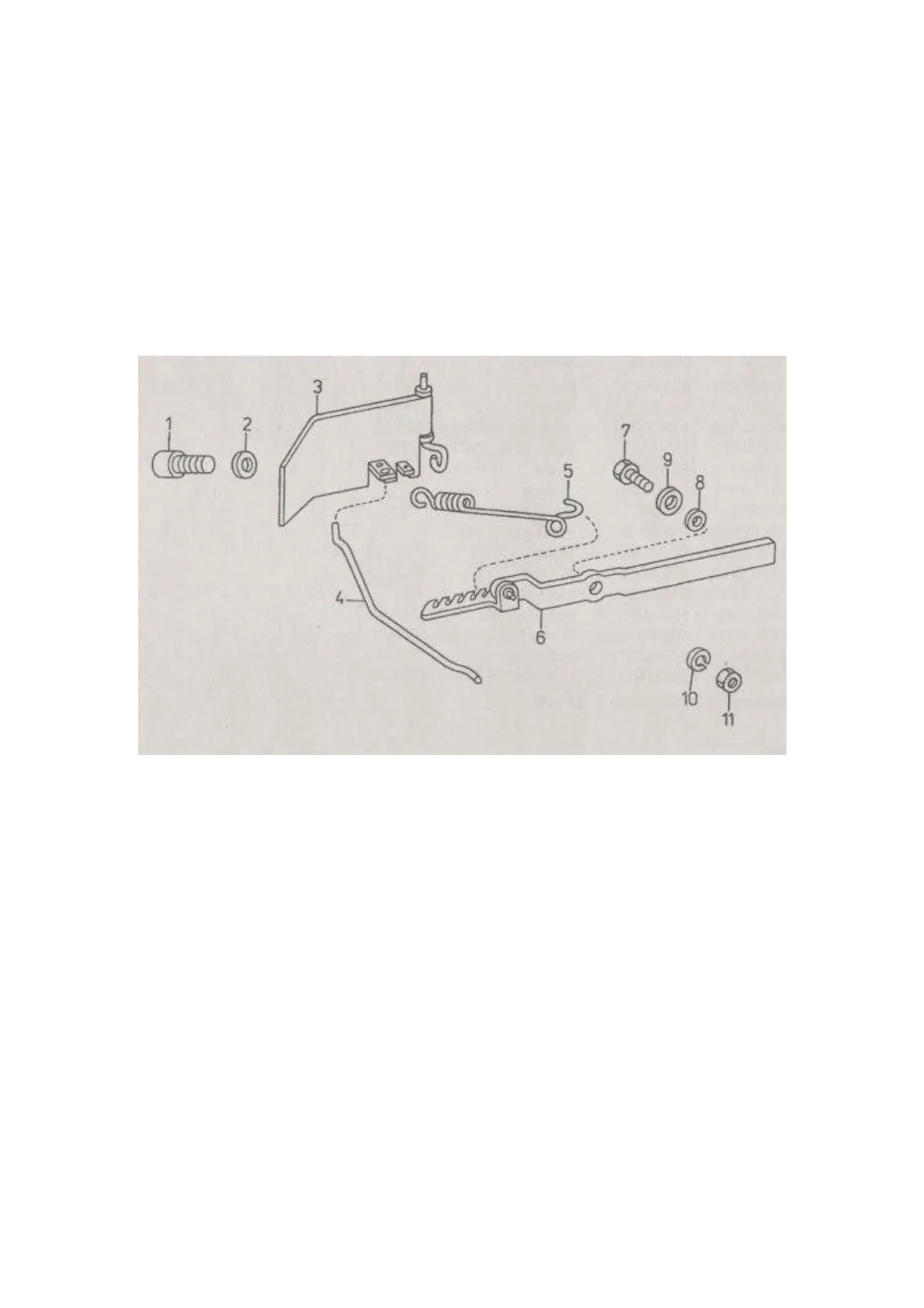

6. Pneumatic governor

Pos. JKPOV Ordering No. Part Pcs

1. 309 231 140 811 101-1655 Bolt M 8x12 ČSN 021131.25 1

2. 311 214 610 084 601-0804 Washer 8.4 ČSN 021746.05 1

3. 482 993 039 034 930-3904 Regulation flap-Assembly 1

4. 482 013 535 032 135-3502 Steering linkage 1

5. 315 111 702 480 134-2501 Return spring of the regulator 1

6. 482 992 003 239 920-0329 Lever-Assembly 1

7. 309 203 140 615 101-2521 Bolt M 6x18 ČSN 021103.25 1

8. 482 060 250 338 602-5038 Insert 1

9. 311 212 610 064 304-0501 Washer 6.4 ČSN 021726.15 1

10. 311 214 010 060 651-0920 Washer 6 ČSN 021740.05 1

11. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 1
