Varimixer W40(A) - 86 MM Meat Grinder

42
86 MM Meat Grinder
PART NUMBERDESCRIPTION
FIG
NO.
.......
1.
1A.
2.
4.
5.
5A
6.
7.
8.
9.
9A.
9B.
9C.
10.
11.
12.
13.
14.
Housing #17
Housing #12
Key
Bushing
Worm with Pin #17
Worm with Pin #12
O-Ring
Precutter
Knife
Disc 1/16”
Disc 1/8”
Disc 3/16”
Disc 1/4”
Tightening Ring
Cap
Meat Tray
Stomper
Tray (Optional)
6R001M
6R001
STA 2082
6R388
6R003M
6R003
6R340
308
306/KNIFE
306/2
306/3
306/5
306/8
6R345
6R002
6R250
6R351
330

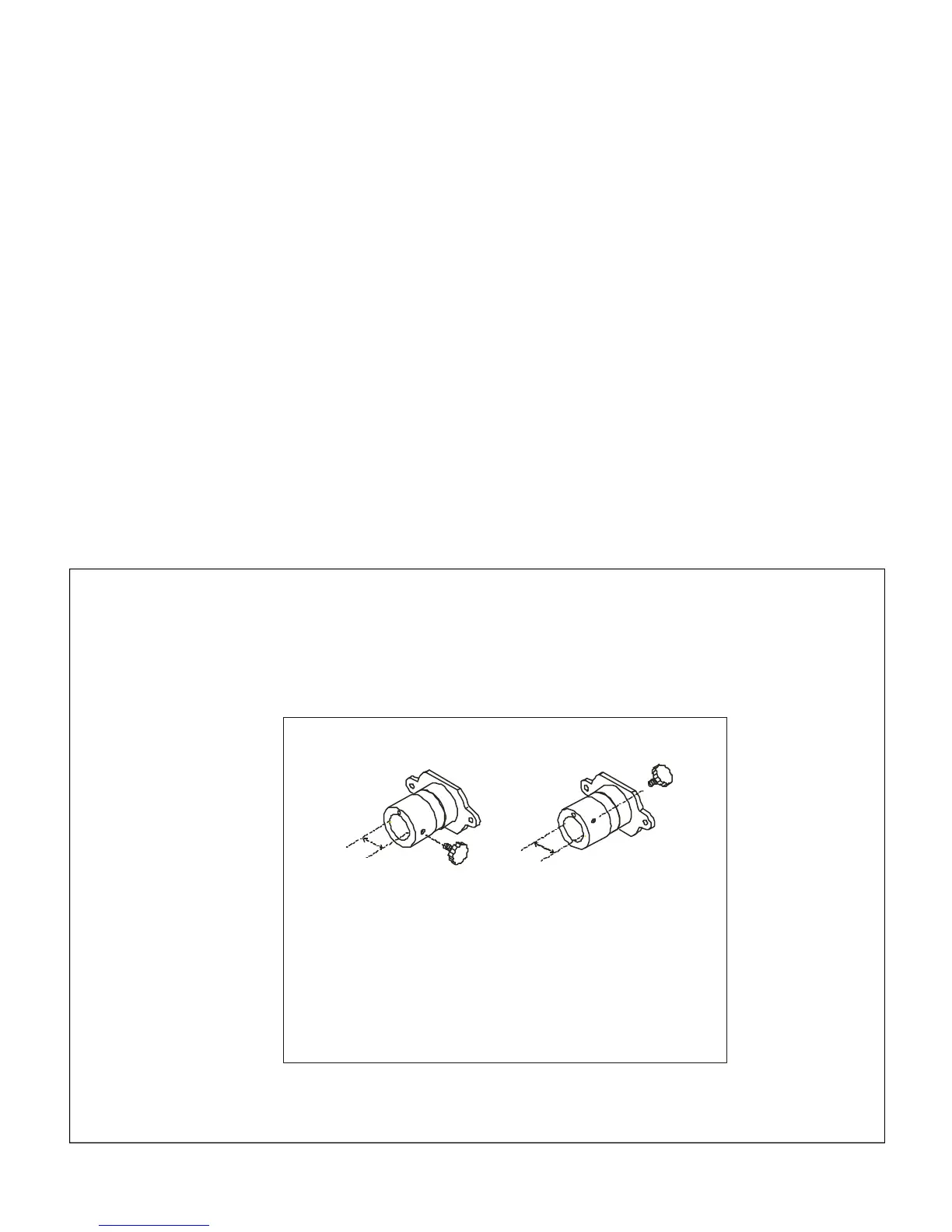

IDENTIFYING A #17 HUB VERSUS A #12 HUB
2”
I.D.
1.5”
I.D
#17
#12
.
THIS AFFECTS ITEM NUMBERS:
1, 1A, 5 and 5A
PLEASE DETERMINE HUB SIZE BEFORE
ORDERING PARTS
