Model #: XL-1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 55-12029 Page 10
Option #2a: SWINGING MOUNT with DLX. BRACKET

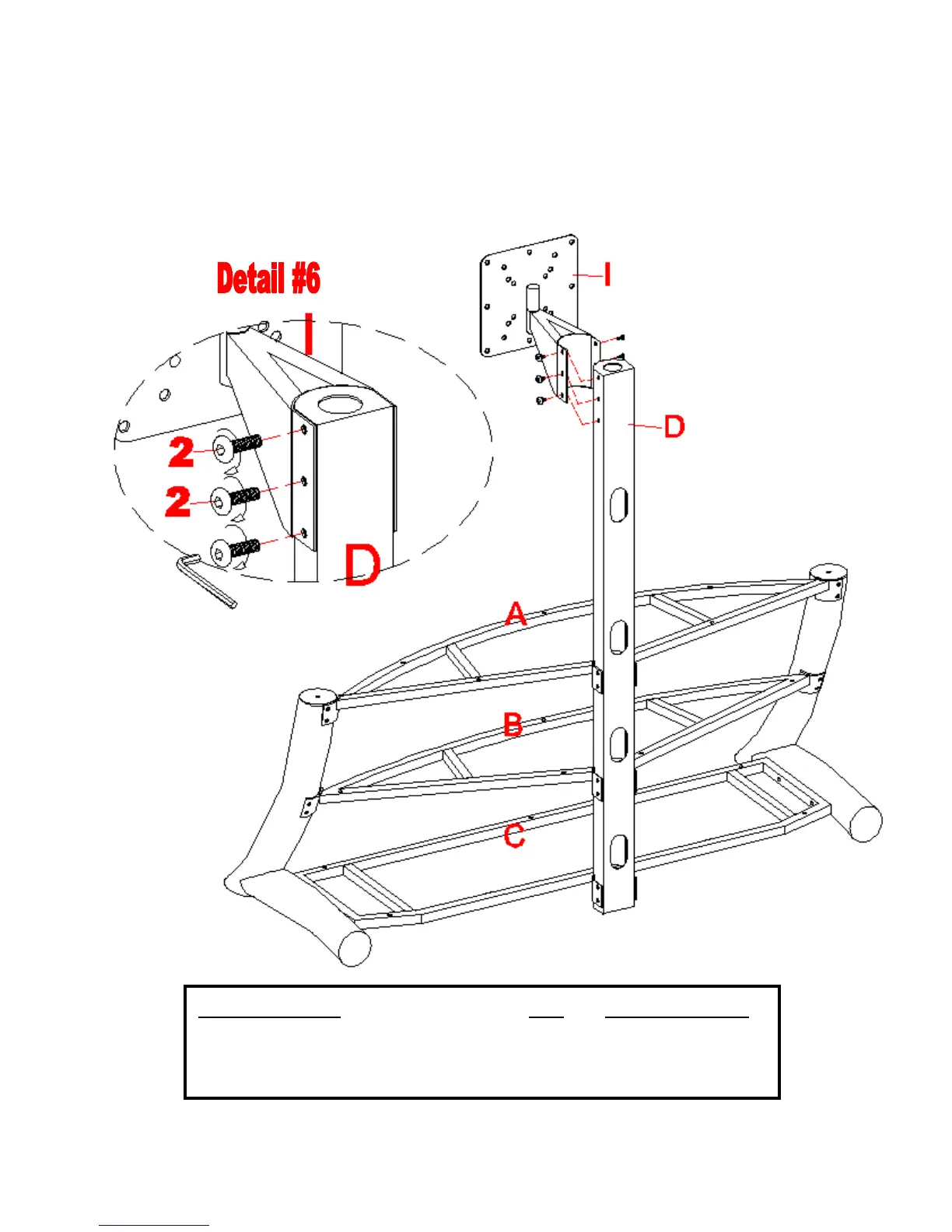

11. Attach the Deluxe Bracket w/Mounting Plate (I) to the Top of Long Spine (D), using six
5/8” Bolts (2) through the bracket holes into the threaded inserts located on the side of
the Spine (D), three bolts per side. See detail #6.
Parts Required Qty Tools Required
I – Deluxe Bracket w/Mounting Plate (1) Allen Wrench
(2) – 5/8” Bolt (6)
To Next Page
