Model #: XL-1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 55-12029 Page 12
Option #2b: SWINGING MOUNT W/ XYZ MOUNTING FRAME

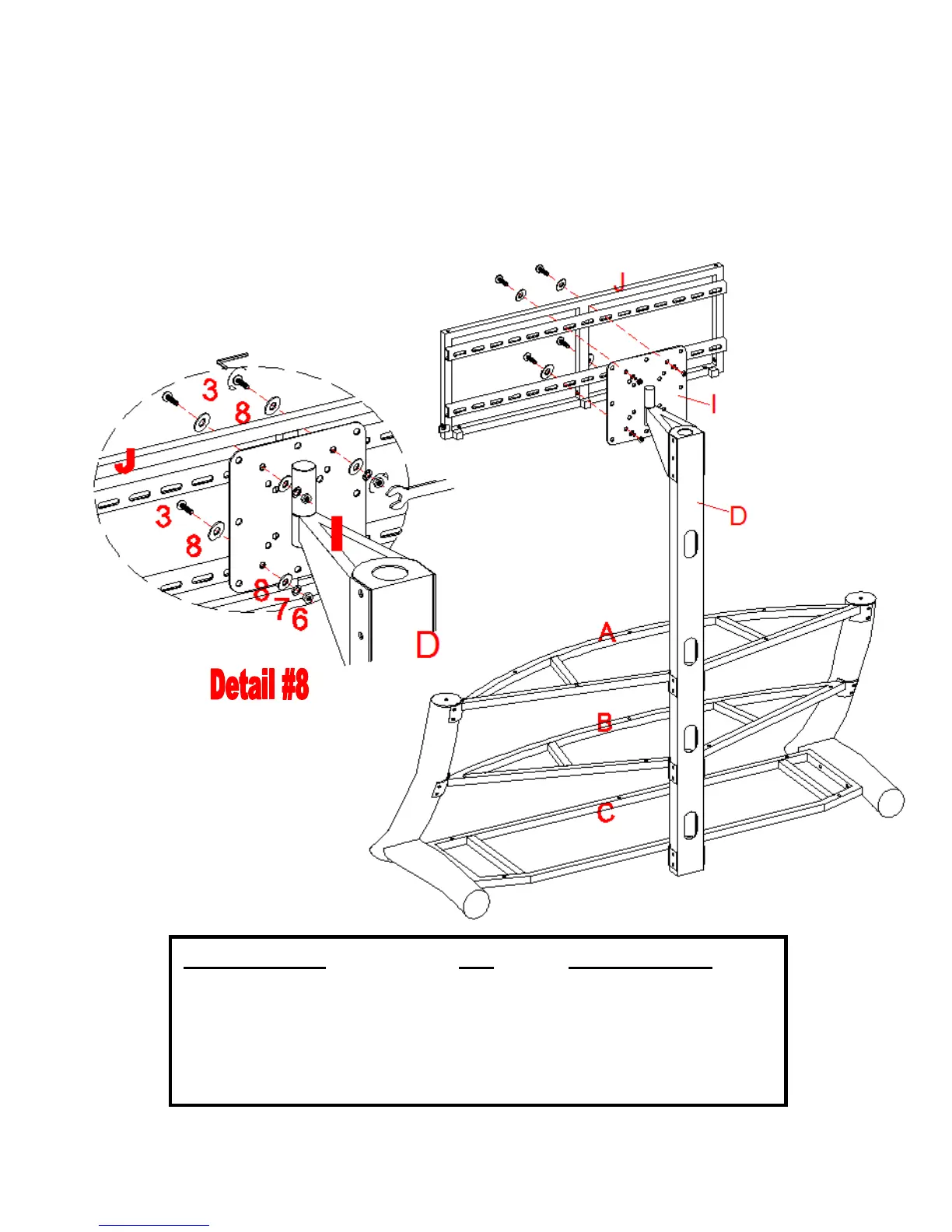

13. Do Step #11. Now attach the XYZ Mounting Frame (J) to the Deluxe Bracket w/Mounting
Plate (I), using four 3/4” Bolts (3) through the Flat Washer (8) through the holes of XYZ
Mounting Frame (J) and Mounting Plate, through the other Flat Washer (8) and Lock
Washer (7) and secure with the Nut (6). See detail #8.
Parts Required Qty Tools Required
J – XYZ Mounting Frame (1) Allen Wrench
(3) – 3/4” Bolt (4) Open Wrench
(6) – Nut (4)
(7)– Lock Washer (4)
(8) – Flat Washer (8)
To Next Page
