110 Climate control
Climate control
Climate control systems ............. 110
Heating and ventilation system 110
Air conditioning system ........... 111
Electronic climate control
system .................................... 114
Auxiliary heater ........................ 118
Air vents ..................................... 119
Adjustable air vents ................. 119
Fixed air vents ......................... 119
Maintenance .............................. 120
Air intake ................................. 120
Air conditioning regular
operation ................................ 120
Service .................................... 120
Climate control systems

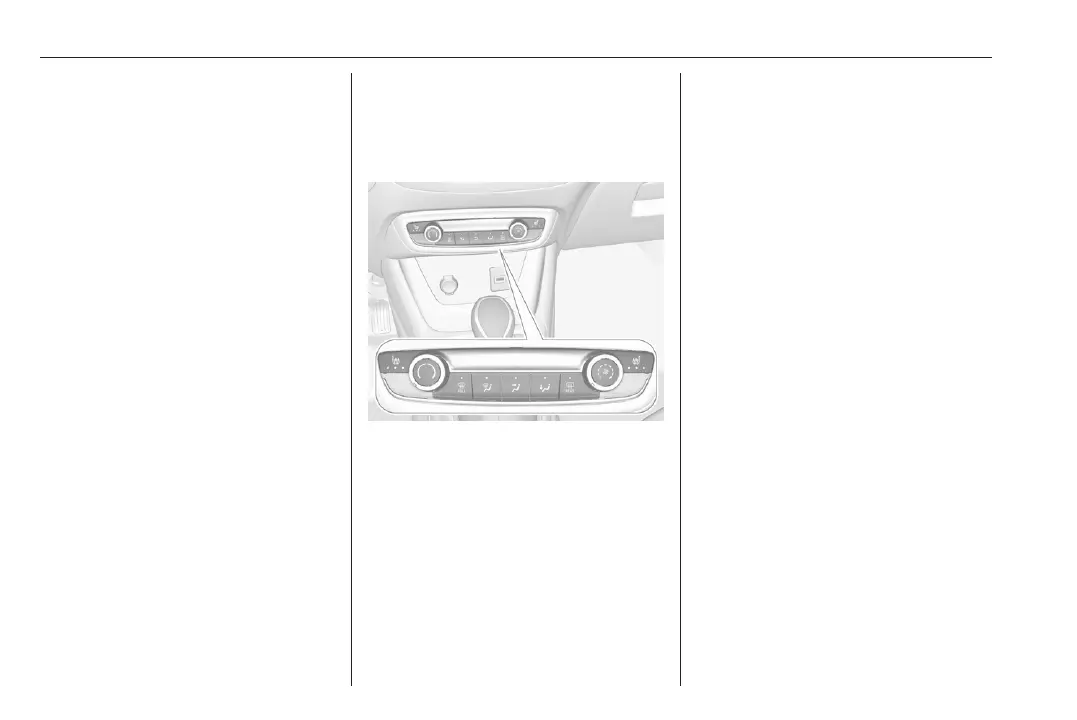

Heating and ventilation
system
Controls for:
● temperature £
●
air distribution l, M and K
● fan speed Z
● demisting and defrosting à
● heated rear window and heated
exterior mirrors b
● heated windscreen ,
●
heated seats ß
Temperature £
Adjust the temperature by turning
£ to the desired temperature.
red area : warmer
blue area : colder
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Air distribution l M K
Press:
l
: to windscreen and front door
windows
M
: to head area and rear seats via
adjustable front air vents
K
: to front and rear foot well and
windscreen
Combinations are possible.
Fan speed Z
Adjust the air flow by turning Z to the
desired speed.
