Vax Rapide User Manual

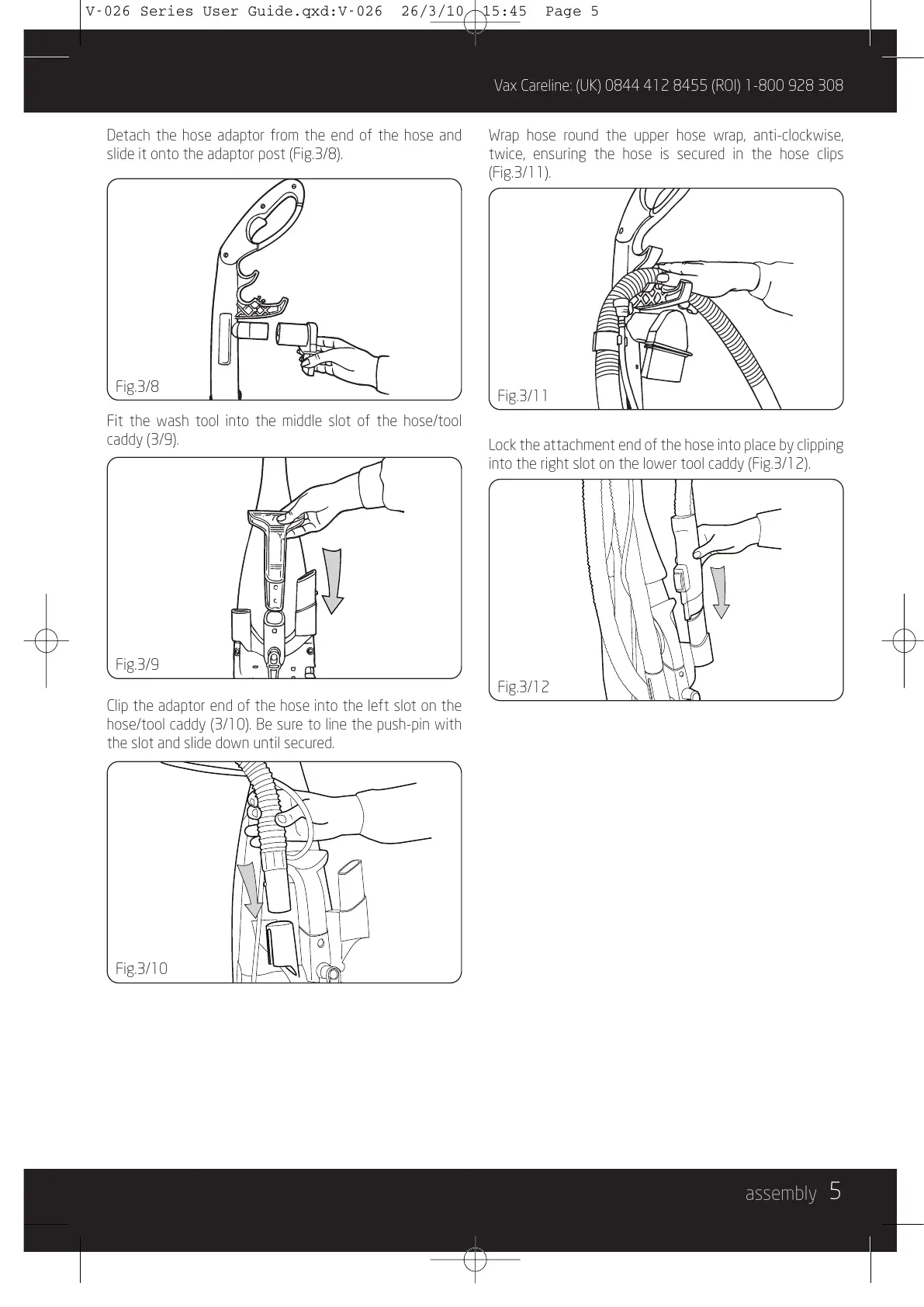

Detach the hose adaptor from the end of the hose and
slide it onto the adaptor post (Fig.3/8).
Fit the wash tool into the middle slot of the hose/tool
caddy (3/9).
Clip the adaptor end of the hose into the left slot on the
hose/tool caddy (3/10). Be sure to line the push-pin with
the slot and slide down until secured.
Wrap hose round the upper hose wrap, anti-clockwise,
twice, ensuring the hose is secured in the hose clips
(Fig.3/11).
Lock the attachment end of the hose into place by clipping
into the right slot on the lower tool caddy (Fig.3/12).
5
assembly
Fig.3/8
Fig.3/9
Fig.3/10
Fig.3/12
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
Fig.3/11
V-026 Series User Guide.qxd:V-026 26/3/10 15:45 Page 5
All manuals and user guides at all-guides.com

Vax Rapide Specifications

General

Brand	Vax
Model	Rapide
Category	Vacuum Cleaner
Language	English
