Vax V-020/V-020TF User Manual

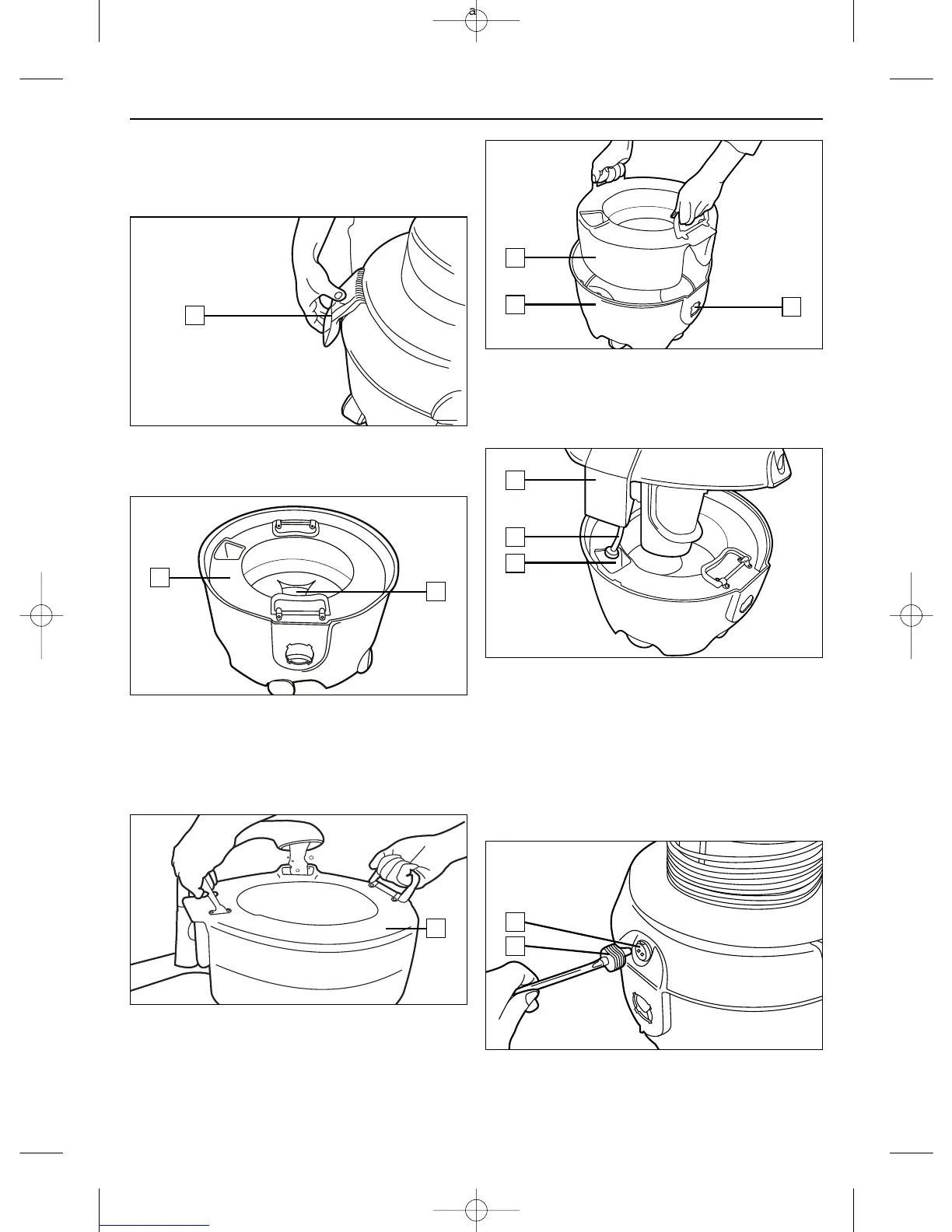

4. Preparing the Machine
1. Unclip Container Release Clips (A) on both sides
of machine (Fig.4/1).
2. Lift off Motor Container to reveal Clean Water
Tank (A) situated inside Dirty Water Tank (B)
(Fig.4/2).
3. Remove Clean Water Tank (A) from inside the
Dirty Water Tank and fill with warm (max 40°C)
water to point indicated on the tank. Add 1 capful
of Vax AAA solution (for carpets) or 1 capful of Vax
Multi hard floor cleaning solution (for hard floors)
per litre of water (Fig 4/3).
4. Replace Clean Water Tank (A) inside Dirty Water
Tank (B) taking care to ensure that the space to
allow the dirty water back into the tank is lined up
with the Solution Port (C) (Fig.4/4).
5. Replace Motor Container (A) ensuring that the
Solution Pump Hose (B) is aligned with the hole in
the Clean Water Tank (C) so that it goes inside
when the Motor Container is clipped back into
position (Fig.4/5).
WARNING: Machine must not be plugged in during
this stage.
5. Assembly
1. Push Solution Tube Cylinder Connector (A) firmly
into Solution Port (A1). Twist Solution Tube
Cylinder Connector (A1) a quarter turn to the right
to lock into place (Fig.5/1).
Preparing the Machine / Assembly
4
A
A
A
B
Fig.4/1
Fig.4/2
Fig.4/3
A
C
Fig.4/4
Fig.4/5
Fig.5/1
B
A
A
A1
B
C
