2. Push Hose Cylinder Connector (B) firmly into
Hose Connection Port (B1). Twist to the right until
Hose Cylinder Connector Locks into place
(Fig.5/2).
3. Wrap Solution Tube (A) around Hose (B). Ensure
that the solution tube is wrapped loosely enough
to allow the solution to flow freely through the
tube (Fig.5/3).
4. After wrapping the tube around the hose, affix
Solution Tube (A) to Hose (B) using Clips provided
(C) to hold it in place (Fig.5/4).
5. Push end of Solution Tube onto connective valve
on the Wash Head / Upholstery Tool (Fig.5/5).
6. Usage
1. Plug in machine to power supply.
2. Press the red button to turn on the power.
3. Press the green button to activate the pump.
4. On the Fibreflow wash head ensure that the
rocker switch (A) is towards the back of the head
to allow water to flow through the head (Fig.6/1).
5. In order to help suck up excess water, the rocker
switch (A) can be pushed to the front position on
the Fibreflow was head. This will prevent water
flow, allowing excess water to be removed
(Fig.6/2).
6. In order to wash upholstery, including stairs and
soft fur
nishings simply detach Fibr
eflow wash
head from wand and solution tube and replace
with upholstery wash tool as shown (Fig.6/3).
Assembly/Usage
5

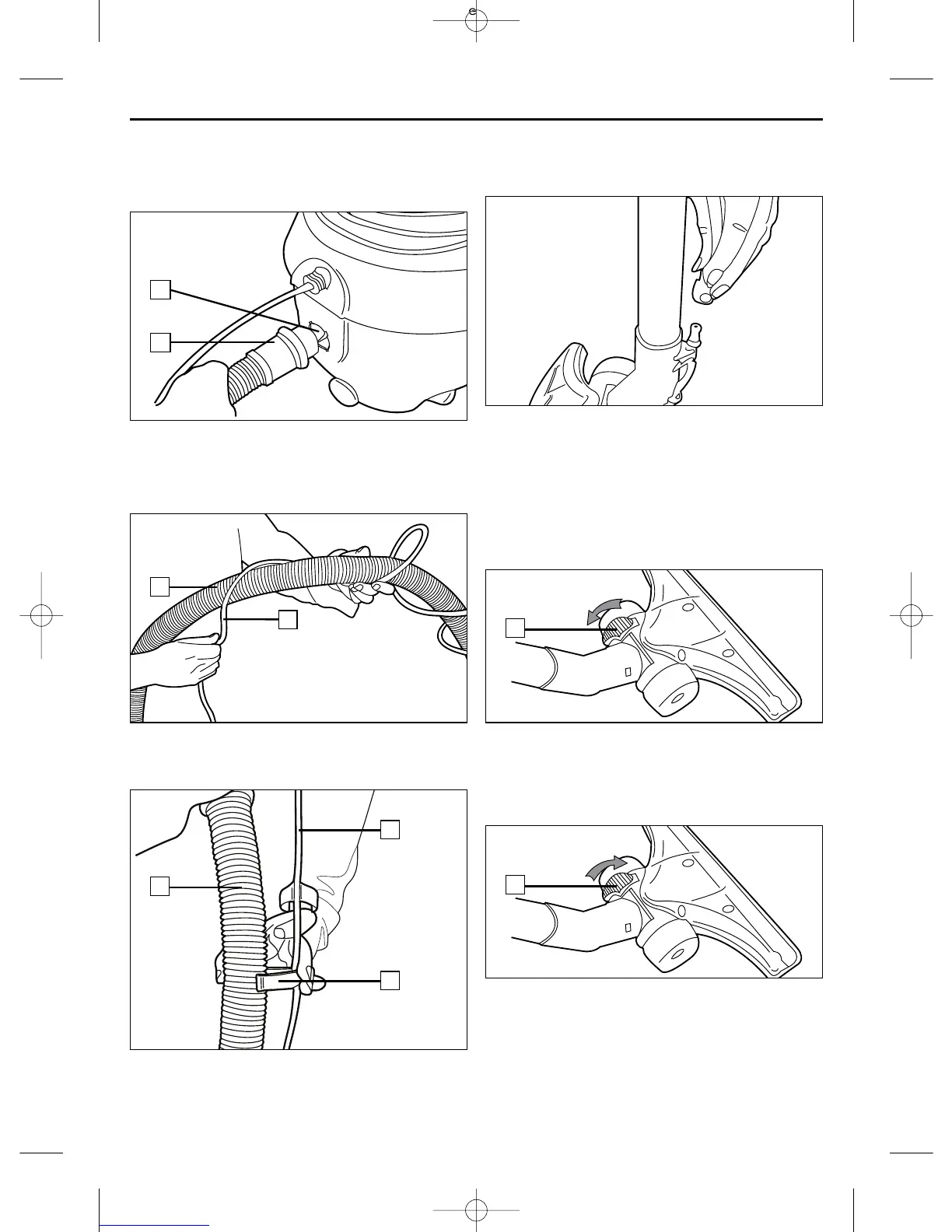

Fig.5/3
A
Fig.6/1
A
A
B
Fig.5/2
Fig.5/5
B
1
B
Fig.5/4
A
B
C
Fig.6/2
