Vax V-109 - Parts Overview

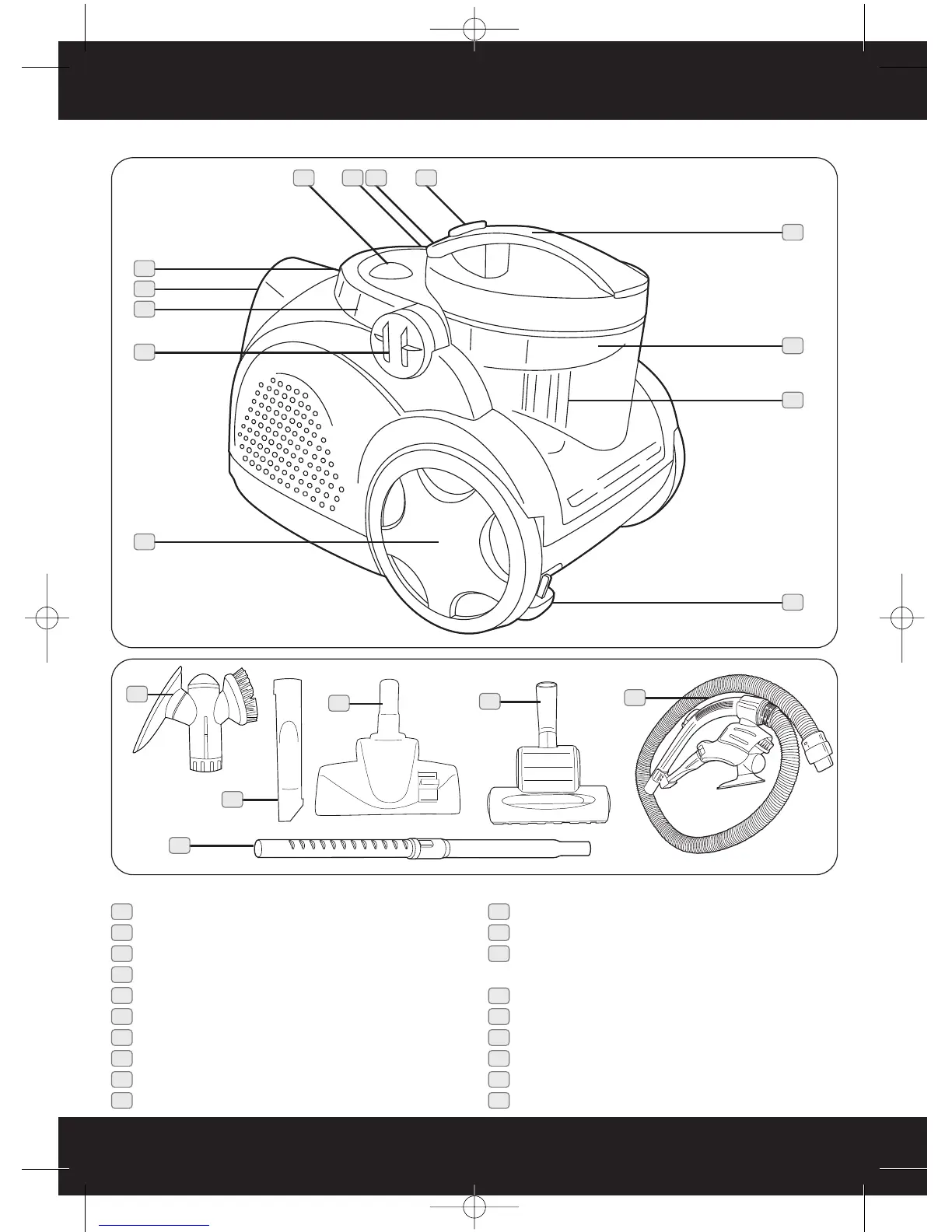

1. Diagram
www.vax.co.uk
2
parts overview
1
2
4 5 6 7
8
9
10
11
12
13
3
14
15
16
1 Carry handle
2 Hose inlet
3 Auto cord rewind
4 On/off button
5 Variable power
6 Post-motor filter
7 Dirt container release button
8 Dirt container handle
9 Dirt container
10 Central filter
11 Plug
12 Wheel
13 Parking slot
Accesories
14 2-in1 tool
15 Crevice tool
16 Combination floor tool
17 TurboBrush
(Model: V-109P, V-109PP, V-109PB only)
18 Flexible Hose
19 Telescopic Tube
Fig.1/1
18
19
17
Vax V-109PB User Guide.qxd:Vax V-109 User Guide 29/4/08 09:26 Page 2
