To change the filters
Motor protection filter

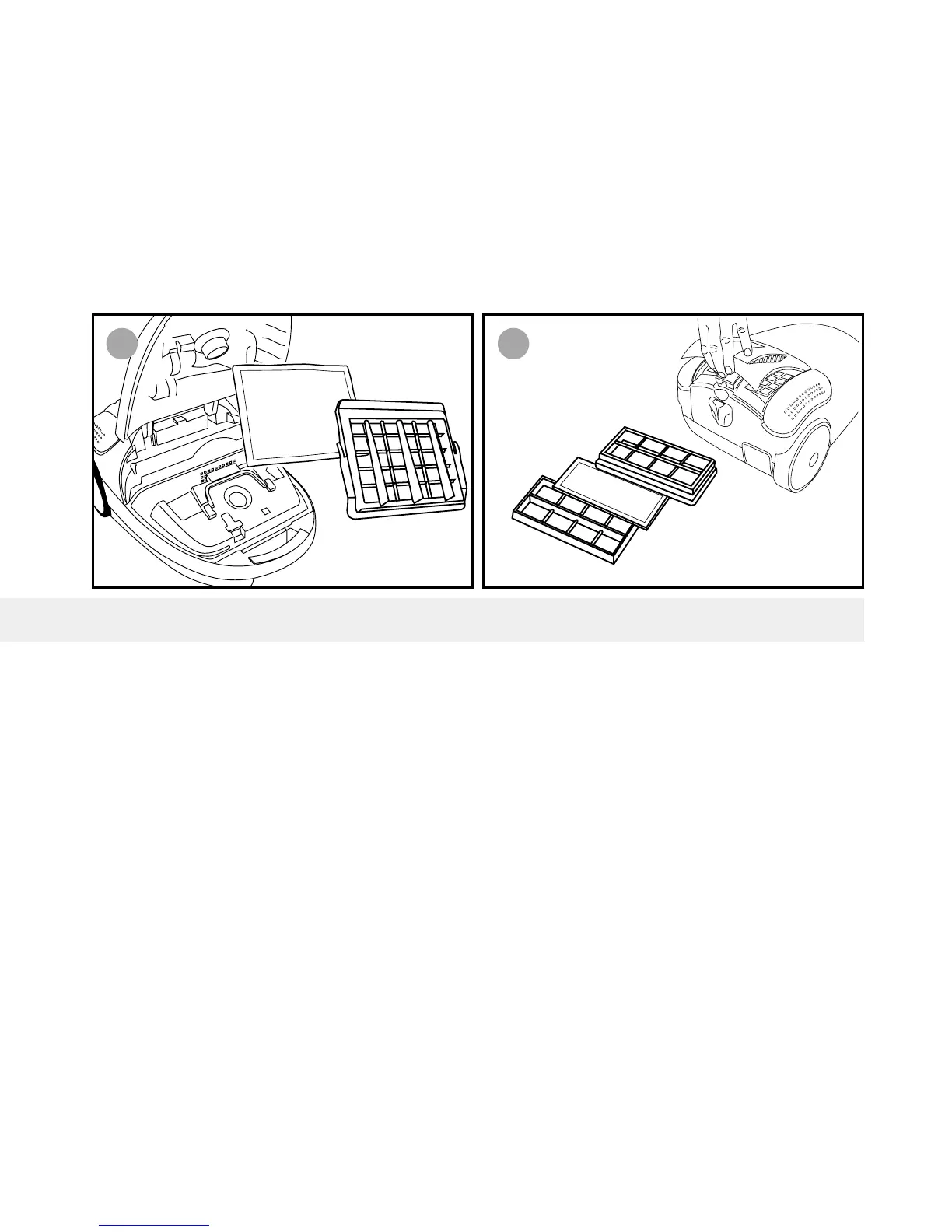

fig. 15 The filter is located in the dust bag compartment and protects the motor from dust. To reach this filter, lift up
the grill which secures it and replace it with a new one. We recommend changing the filter after 5 bag changes
or when it appears soiled.
Attention: Do not use the vacuum cleaner without the motor protection filter.
Air outlet filters
fig. 16 To remove the filters first remove the filter cover. Remove both filter cartridges. On each individual cartridge
remove holding bracket. Replace used filter medium with new - the gauze side first. Reassemble and replace
filter cover.
We recommend replacing the air outlet filters after one month’s use. Thereafter, replace every 4-6 months, after 5 bag
changes, when appearance is soiled or if a loss of suction is experienced (whichever is sooner).
