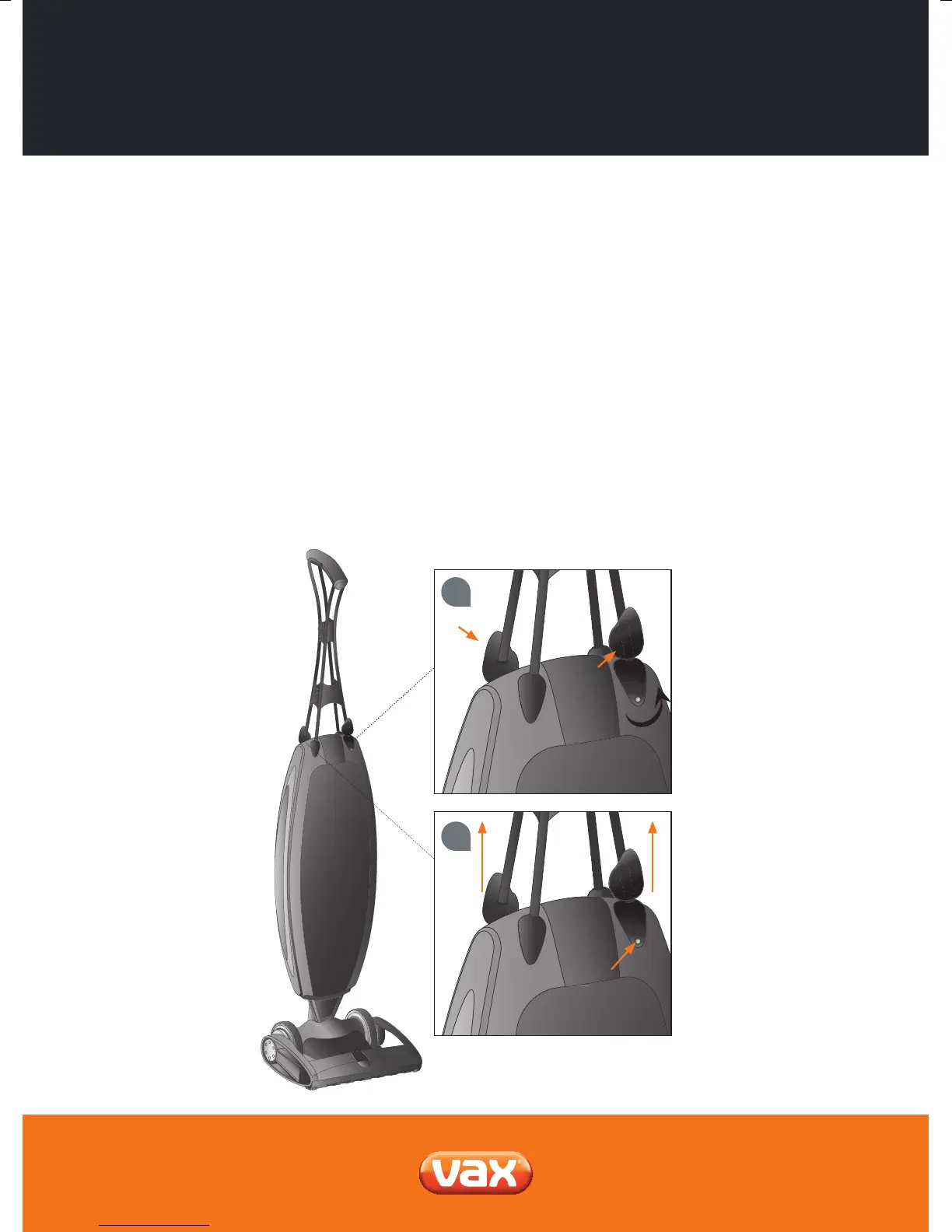

Disassembling the handle
NOTE: The upper handle assembly is held in place by two spring loaded pins. To remove the handle, both spring loaded pins
must be depressed at the same time.
1. Place the unit on a table so that the vacuum handle is at eye level.
2. Facing the front of the vacuum, ip rubber covers A & B up. Keep both aps ipped upright.
3. Locate the silver-coloured push pin under aps A & B.
4. Use a small household item such as a ballpoint pen, screwdriver, or paper clip to depress the silver-coloured push pin.
While keeping an upward pull on the handle, insert the tip of the household item into the silver-coloured push pin until you
feel a release.
NOTE: When button is depressed make sure to keep handle slightly pulled up.
5. Rotate the vacuum 180 degrees and repeat steps 1-4 in ap B.
6. After depressing both silver-coloured push pins in aps A & B, the handle will release.
