assembly/ operation
3. Assembly
Putting your cleaner together
Insert middle frame to machine base (Fig 3/1).
Insert one screw on either side of middle frame to secure
(Fig 3/2).
Slide the upper handle down onto the unit. The handle
will click and lock in place. Run the mains wire above the
upper cord hook and secure with the cord clip (Fig 3/3).
Insert locking pins into either side of handle (Fig 3/4).
Screw locking pins into handle (Fig 3/5).
4. Operation
IMPORTANT: Turn off when emptying and filling
the tanks and performing any maintenance.
Grasp the solution reservoir under the handle and press
the handle release lever in (Fig 4/1).
Tilt the solution reservoir away from the cleaner and
remove (Fig 4/2).
Unscrew the cap from the back of the solution reservoir
(Fig 4/3).
Pour the correct amount of Vax Solution as directed on
the solution label into the clean water tank.

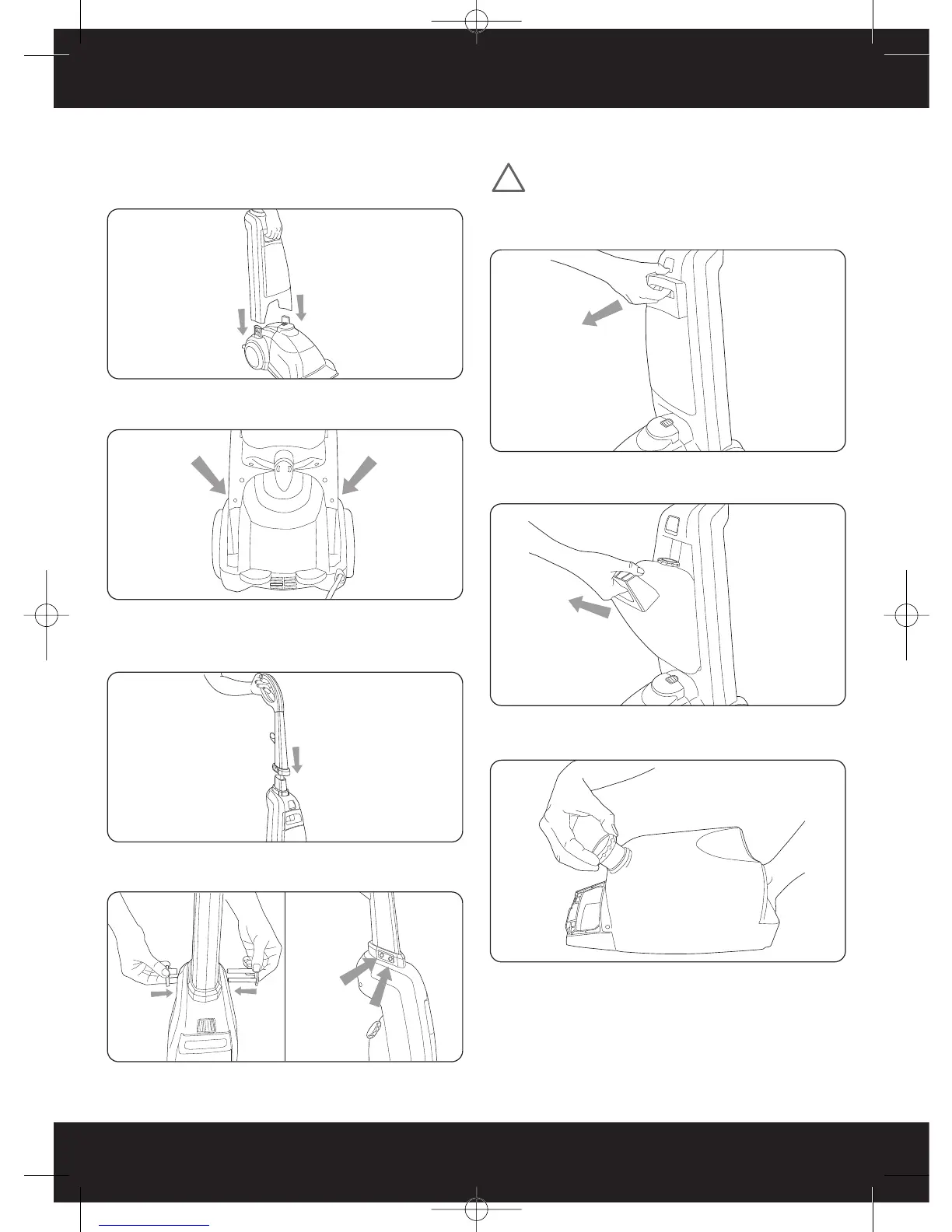

Fig.3/3
Fig.4/1
Fig.4/2
Fig.4/3
