PEDAL ASSEMBLY

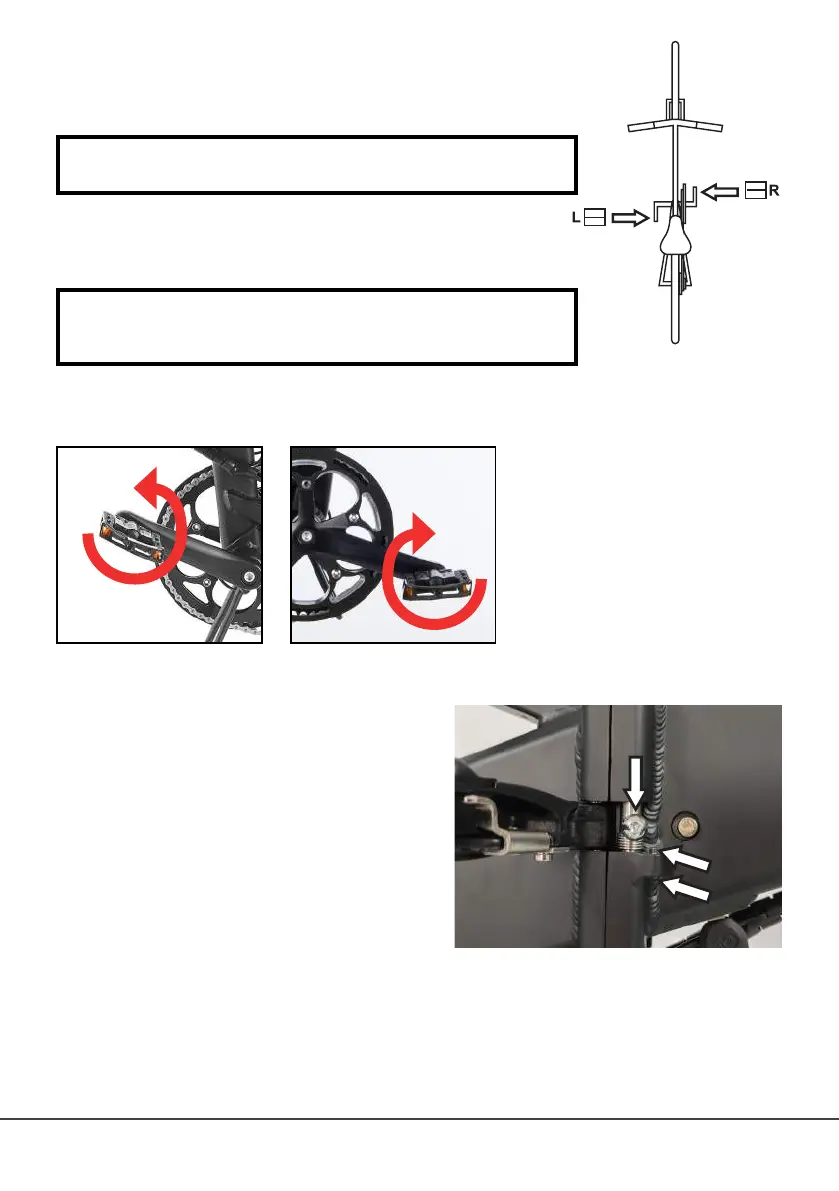

Each pedal is marked with an “L” for the left pedal and “R” for
the right pedal. The illustration to the right shows where the
pedals should be mounted.
Install the left pedal by turning counter-clockwise.
Install the right pedal by turning it clockwise.
To secure the pedals, you need to use a wrench on the pedals.
See the section “Recommended torques” for correct tightening
of the pedals.
Note: If the pedals do not easily turn during installation,
they must be removed again. Do not try to install them by
force as this can damage the threads.
WARNING: Tighten the pedals properly before using the bike
for the rst time.
L R
FRAME FOLDING MECHANISM
If the frame folding mechanism is not tight
enough or the safety lock does not click into
position, then the folding mechanism
needs adjusting.
Open the frame folding lock. Find the big silver
screw (shown in the photo on the right). Turn
counter-clockwise to tighten the folding lock.
Turn clockwise to loosen the folding lock.
SAFETY LOCK
Open the frame folding lock. Find the little
black screw (shown in the photo on the right).
Tighten the screw under the frame folding lock.
NOTE: It is important that the frame folding mechanism is adjusted correctly. If in doubt,
contact a bike mechanic or contact after-sales support.
