13
1
2
STOP
GO
38-08100
4
6
5
0 mm ~10 mm

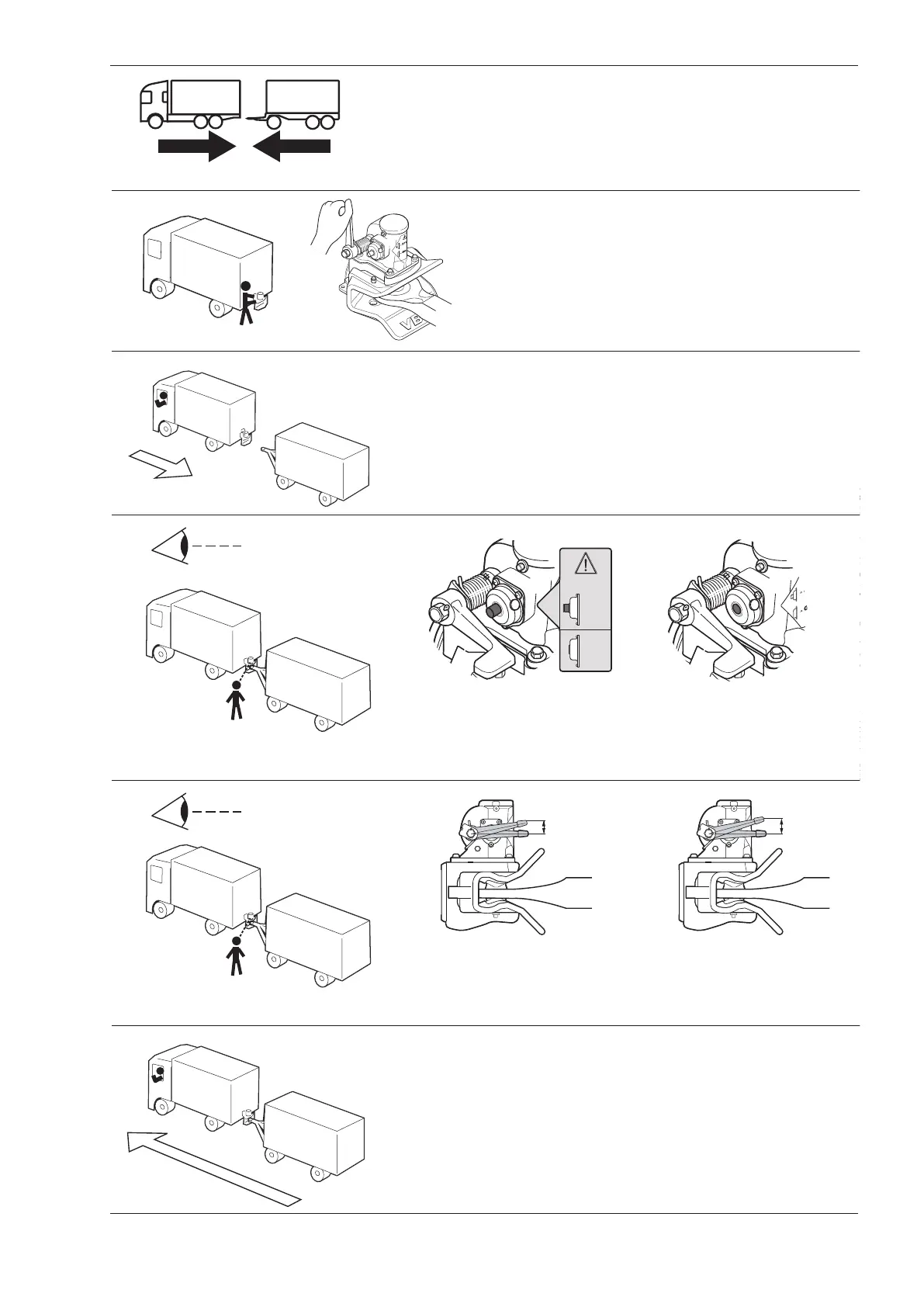

Check that the Indicator pin is completely in.
If the Indicator pin is not completely in, the coupling is open and
driving is not, under any circumstances, permitted!
Contact nearest workshop for remedial measures.
Connect to the trailer.
Check that there is approx. 10 mm movement of the handle before
the indicator pin moves outwards. If there is no free movement
of the handle the coupling is open and driving is not, under any
circum-stances, permitted! Contact nearest workshop for remedial
measures.
The trailer is secured and driving
can begin.
Stand by the coupling handle.
Lift the handle 90º, the handle
locks. The coupling is now open.
Coupling without power actuator
