15
Coupling
1
2
1
2
3
4
1
2
3
1+2
GO
5
STOP

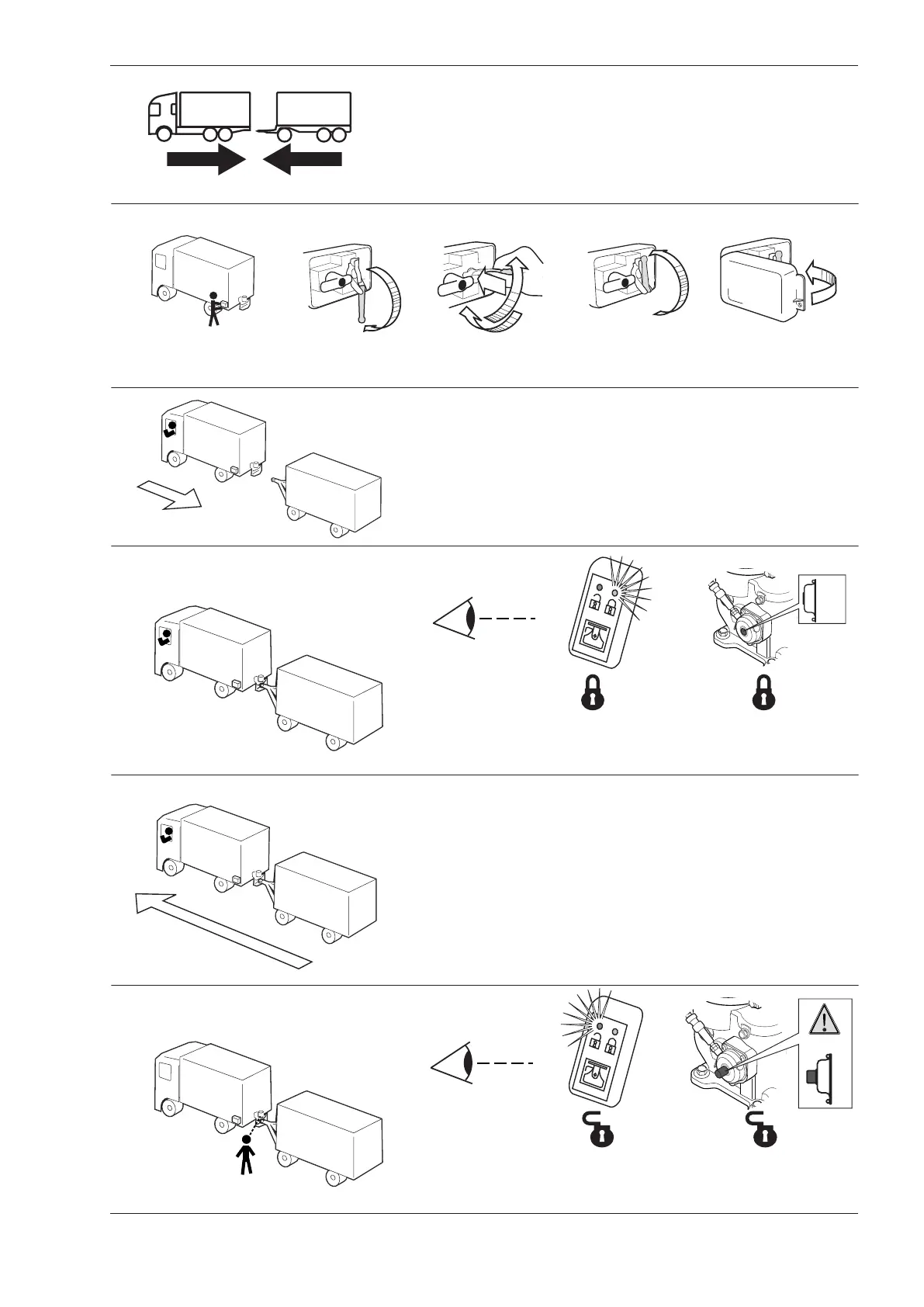

Simultaneously press on the handle where it says “Press” and turn the
handle anti-clockwise to “OPEN”. Then turn it back to “CLOSE”.
If the red lamp comes on and the signal pin is not completely in, the
coupling is open and the truck must under no circumstances be driven!
Contact nearest workshop for remedial measures.
Couple to the trailer.
The trailer is secured and driving
may begin.
Check that the signal pin goes fully in, and that the green warning
lamp in the cab is on. The coupling is closed and secured, and the
truck can now be driven.
