• Check that the coupling can be rotated in its moun-
ting. The coupling must be closed when the rotation is
carried out.
Wear limits
A Coupling pin max Ø 55.0 mm
B Drawbar eye max Ø 59.5 mm
Vertical play
in the coupling bolt max 5.0 mm
Lubrication
Lubricate the coupling weekly with VBG mechanism oil
or similar thin oil. For maximum effect, the coupling
should be open when it is lubricated.
•

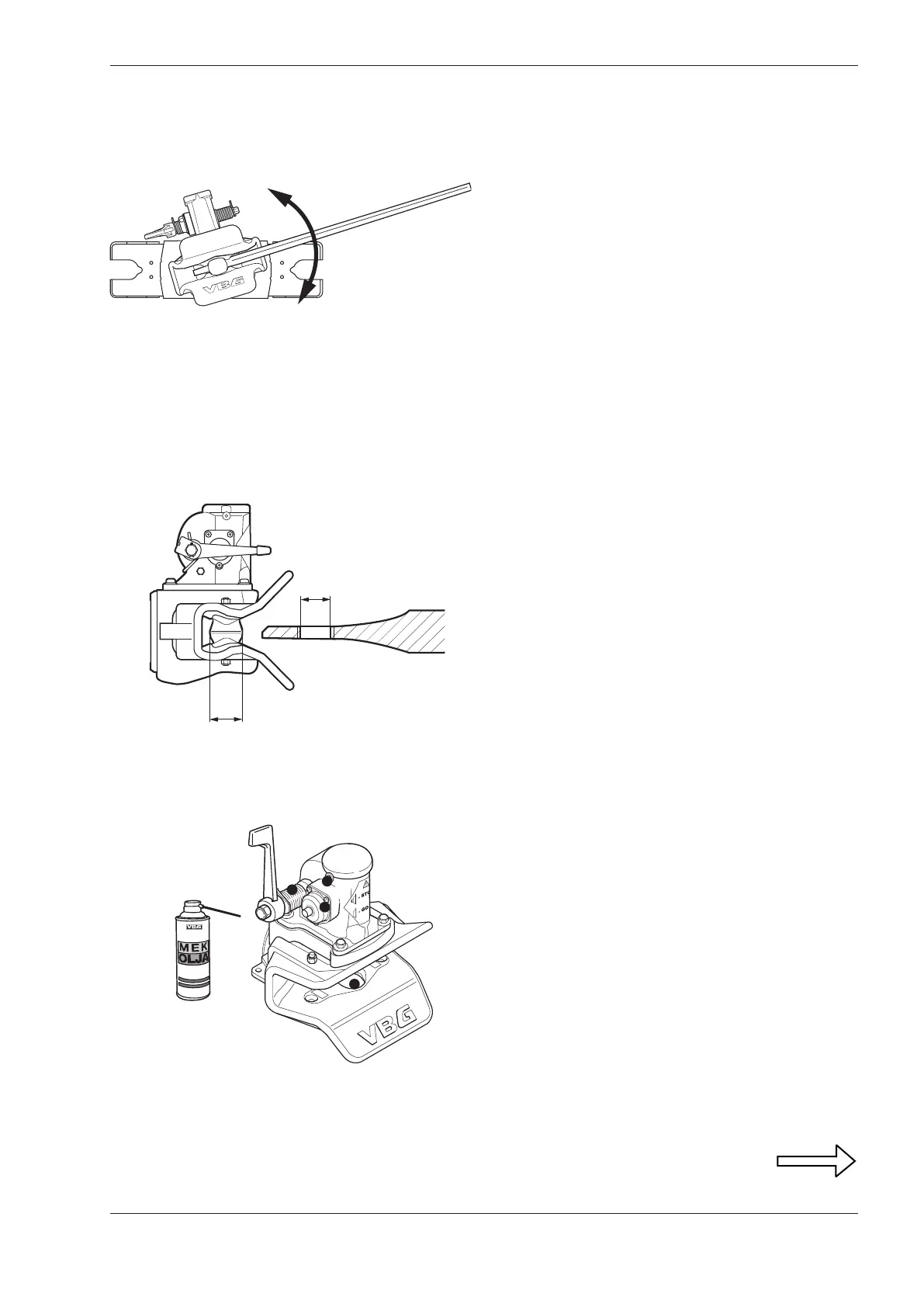

Lubrication points (see drawing on the left)
