parameters adjusted are the data in the same group.
Figure 5
Item 5：“In_Hori_Width ”
It is used to set the horizontal width of input image from which

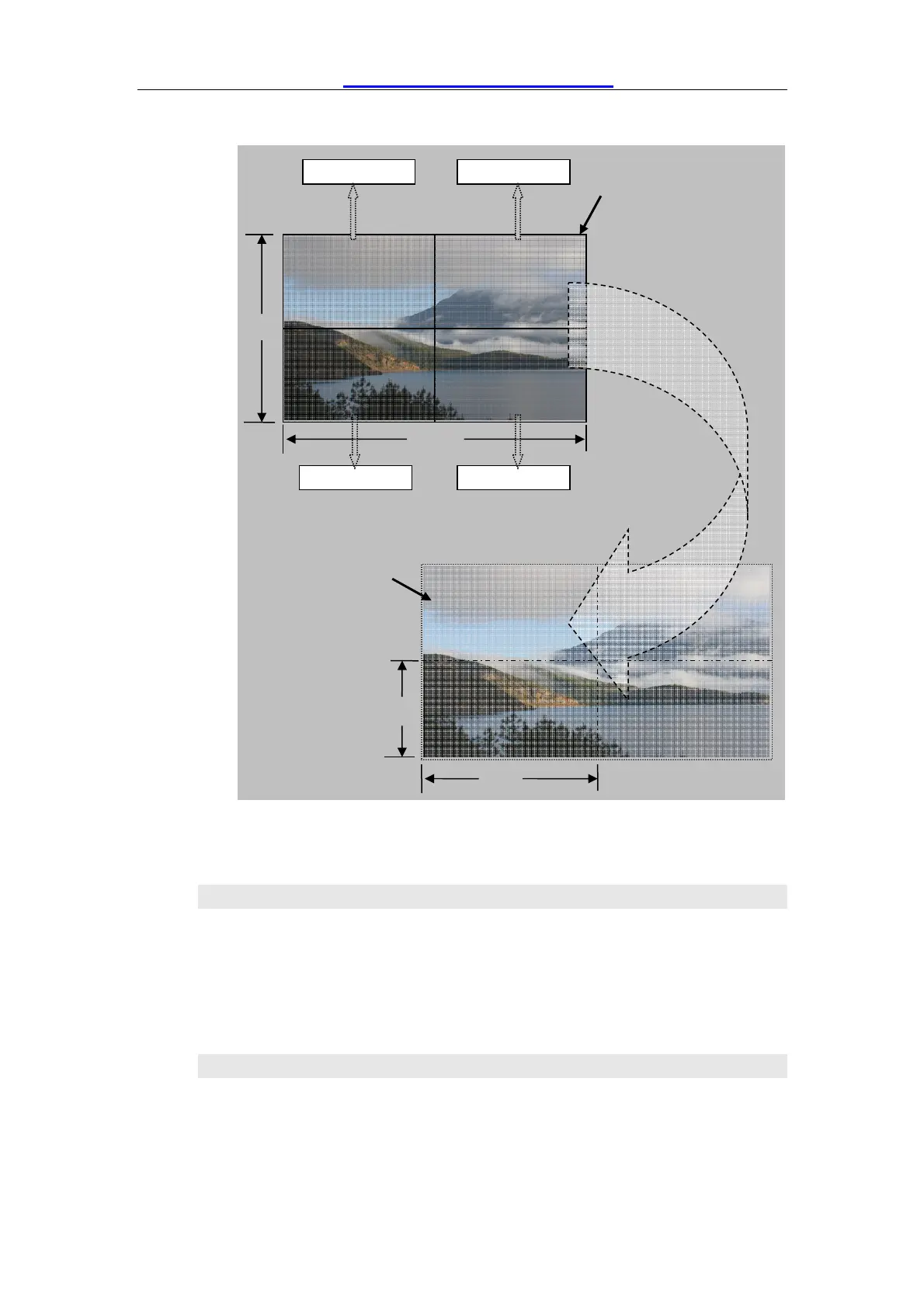

LVP605 will capture.As shown in Figure 5, the width of input image for
the 4 sets of LVP605 should be set as:
In_Hori_Width = 1 / 2
Item 6：“In_ Hori _Start ”
It is used to set the horizontal start point of input image from which
LVP605 will capture. As shown in Figure 5, the the horizontal start point
（
（
（
）
（
1# LVP605 2# LVP605
3# LVP605 4# LVP605
Input image
To Next Page
