4. Replace battery

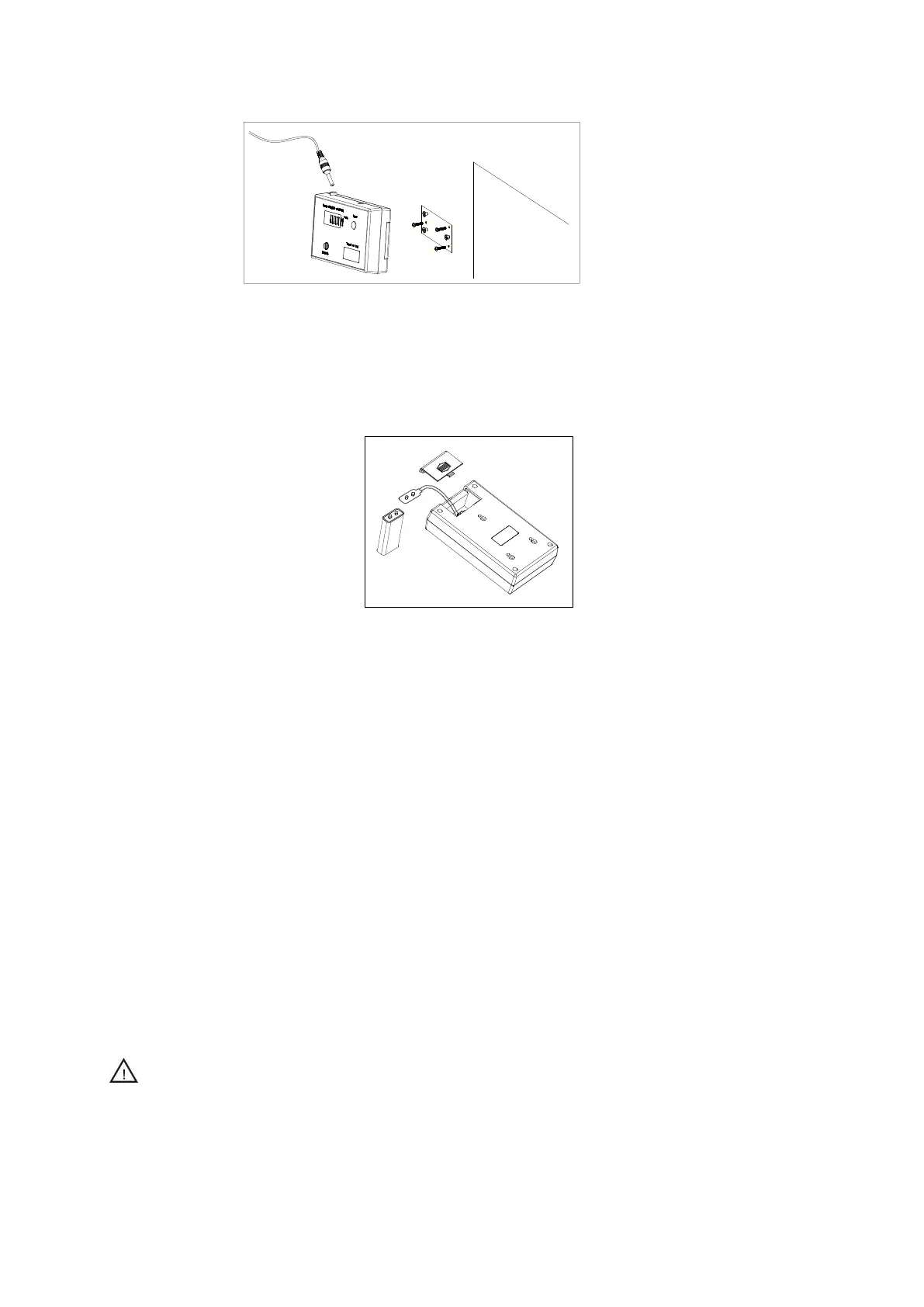

The battery can be easily replaced by removing the battery case on the back of the meter and replace a new
9V DC battery. (An AC coupling adapter (output voltage is 9~12V) also can be used.)
5. Test
Mete
r must always be grounded to provide an accurate reading and to allow for instant discharge to safe
handling limit. Connect the plug of grounding wire into the grounding jack on the unit and the other
terminal is connected to earth. Press “POWER” button to test the static charge carried by human body.
Test person’s electrostatic:
Touch the stainless steel testing board with hand and the display value is the electrostatic on body. If you
need to discharge the electrostatic, please touch “Ground” socket and the electrostatic will be discharged.
Test the electrostatic potential difference between two persons:
One person touches the testing plate and not releases, the other person also touches the testing board. Here,
the display value is the electrostatic potential difference between two persons.
Test the wrist strap:
Before testing, rub foot on the floor and touch the testing plate. If the wrist strap is not well grounded, the
meter will display the value of electrostatic.
Display value of the static check meter:
The voltage range of the meter is from 0V to19990V (HBM Mode). “0” printed on panel means “1” digit,
so the final Voltage value = Value displaying on LCD X 10.
It can be used to test the voltage of “+” and “-” polarities. When displaying“-”, it means negative voltage,
and when not displaying “+” or “-”means positive voltage.
Warning: The meter must ground reliably when using or checking some values between
0~19990V.
