Vector Fog VECTORFOG H500 - Parts Assembly and Troubleshooting; Resonator and Inlet Nozzle Assembly; Resonator & Chemical Inlet Parts

10
• Unscrew the main chemical inlet nozzle from the resonator and clean it using compressed air to remove any
blockages.
• Check there is no leaks in the chemical tank. Blow compressed air backwards though the chemical tube from the
inlet nozzle to see if any bubbles appear. Replace leaking parts if necessary

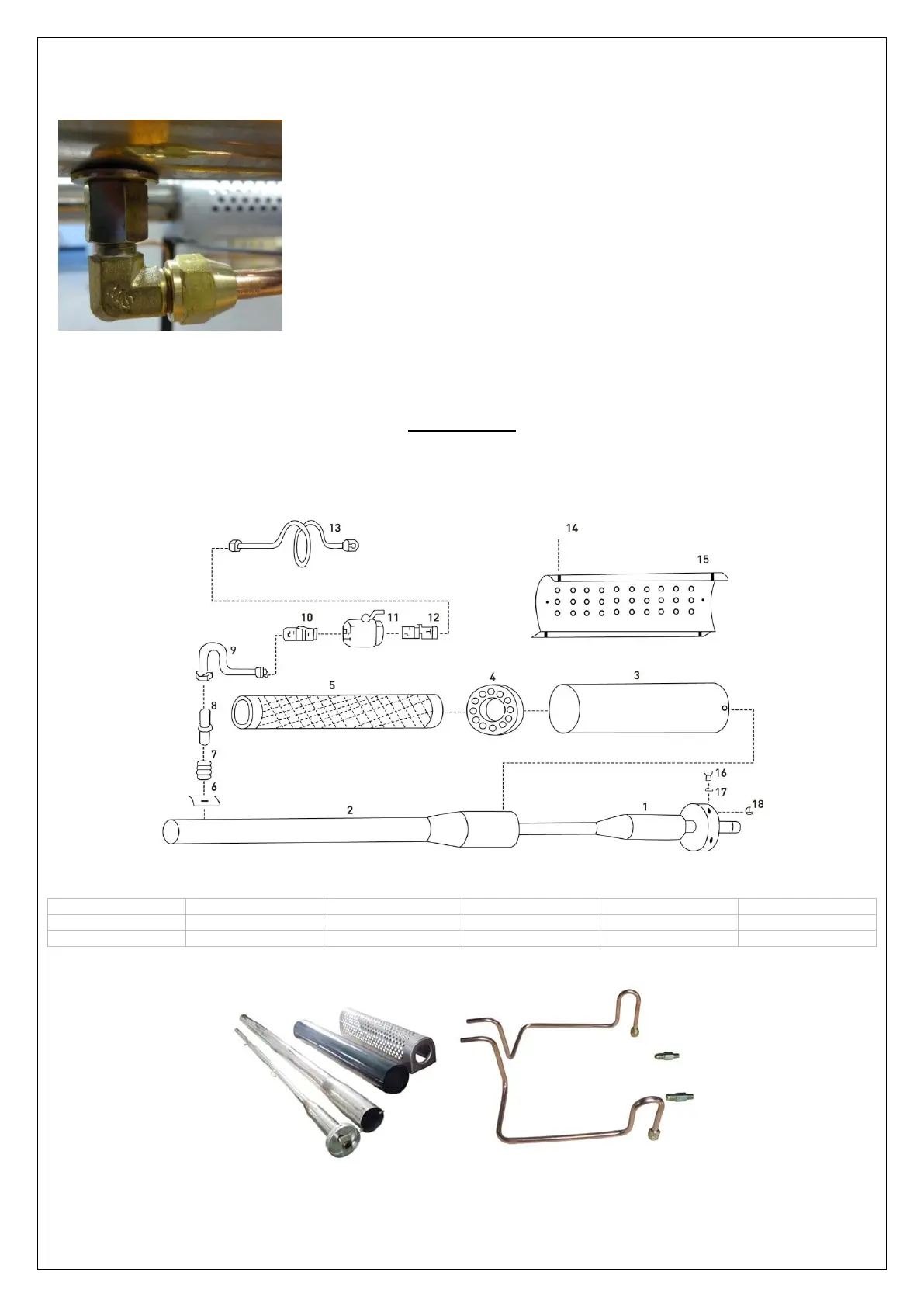

Parts Assembly
01. Resonator & chemical Inlet nozzle
1. Ejection pipe
2. Inner cooling pipe
3. Outer cooling pipe
4. Bracket
5. Safety net
6. Ejection nipple plate
7. Ejection buffer spring
8. Ejection nipple
9. Ejection nipple tube
10. Straight nipple
11. Ball valve
12. Straight nipple
13. Chemical pipe
14. Bolt
15. Protective cover
16. Bolt
17. Flat washer
18. Nut
