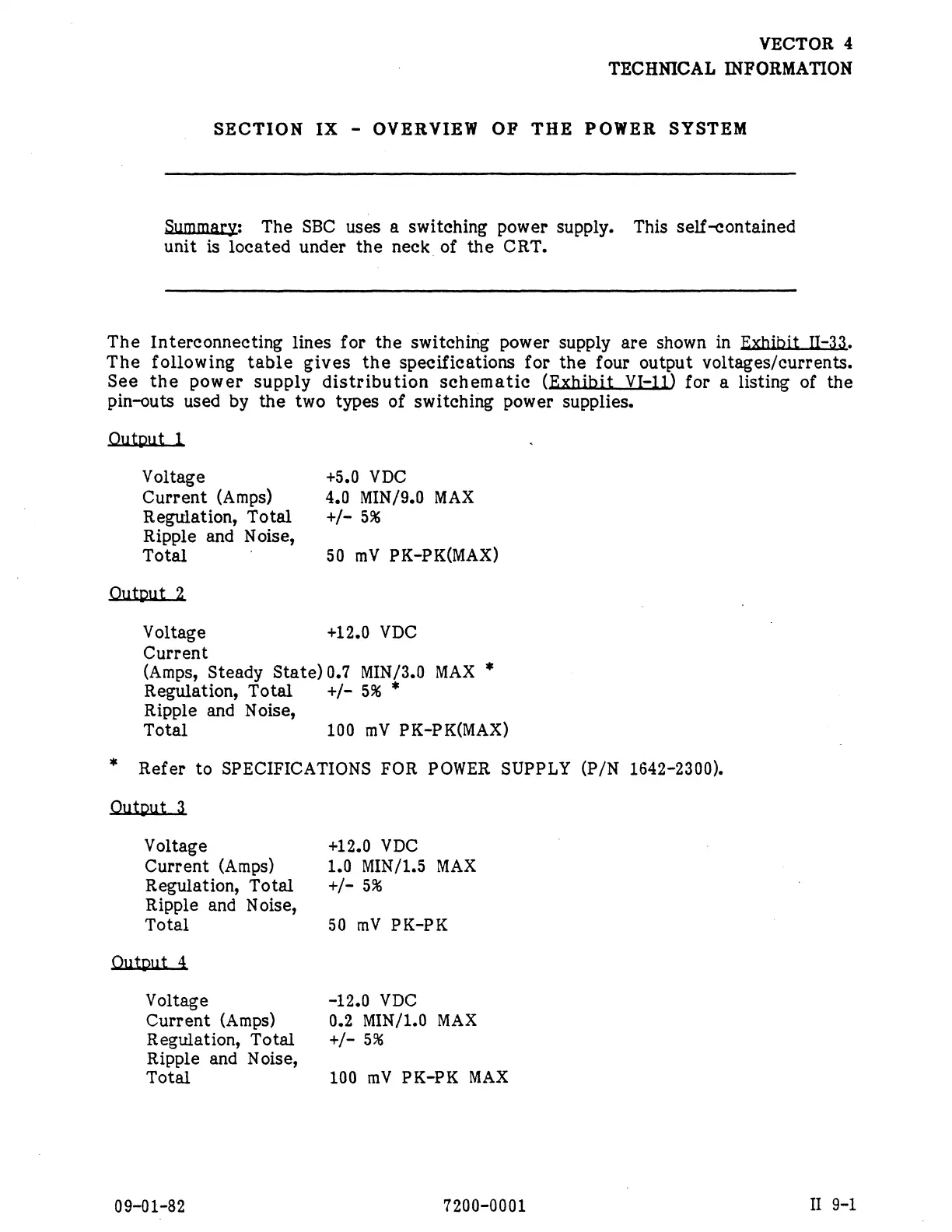

VECTOR 4
TECHNICAL INFORMATION
SECTION IX - OVERVIEW OF THE POWER SYSTEM
Summary: The SBC uses a switehing power supply. This self-contained
unit is located under the neck of the CRT.
The Interconnecting lines for the switching power supply are shown in Exhibit II-33.
The following table gives the specifications for the four output voltages/currents.
See the power supply distribution schematie (Exhibit VI-11) for a listing of the
pin-outs used by the two types of switching power supplies.
Qutput 1
Voltage +3.0 VDC
Current (Amps) 4.0 MIN/9.0 MAX
Regulation, Total +/= 5%
Ripple and Noxse,
Total 50 mV PK-PK(MAX)
Qutput 2
Voltage +12.0 VDC
Current
(Amps, Steady State)0.7 MIN/3 0 MAX *
Regulation, Total +/- 5% *
Ripple and Noise,
Total 100 mV PK-PK(MAX)
*
Refer to SPECIFICATIONS FOR POWER SUPPLY (P/N 1642-2300).
Qutput 3
Voltage +12.0 VDC
Current (Amps) 1.0 MIN/1.5 MAX
Regulation, Total +/= 5%
Ripple and Noise,
Total 50 mV PK-PK
Quiput 4
Voltage -12.0 VDC
Current (Amps) 0.2 MIN/1.0 MAX
Regulation, Total +/- 5%
Ripple and Noise,
Total 100 mV PK-PK MAX
09-01-82 7200-0001 I 9-1
