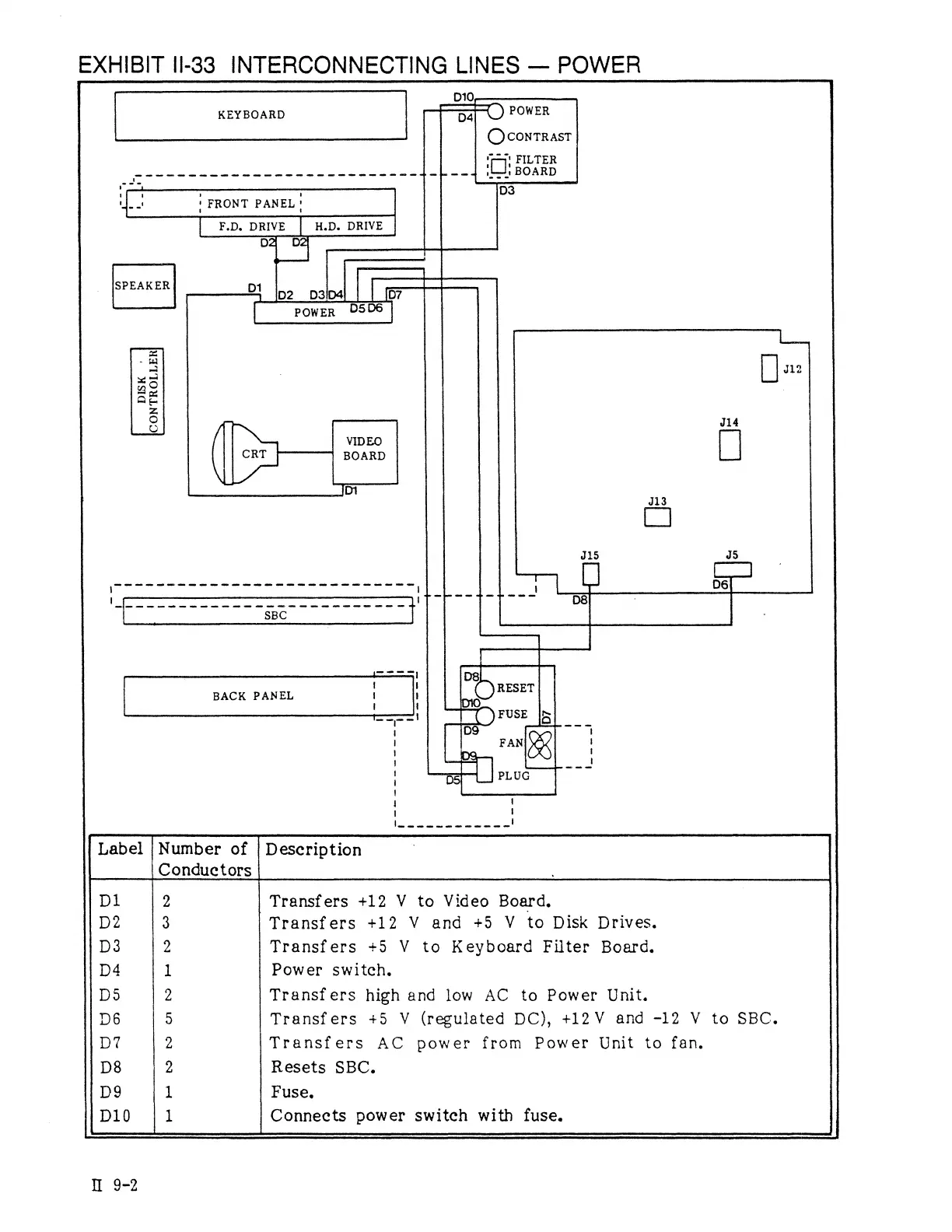

EXHIBIT 1I-33 INTERCONNECTING LINES — POWER
D10
KEYBOARD
=2
POWER
(O CcoNTRAST
;‘fj’; FILTER
L} BOARD
; . D3
I * FRONT PANEL '
| F.D. DRIVE | H.D. DRIVE
D Dfl
1
SPEAKER D1
7 (D2 D3iD4 [AEW
| POWER D506 |
[]le
DISK
CONTROLLER
) J14
VIDEO [:]
BOARD
o1
J13
Jis Jd5
| T T T T T T s T e e e m s m i 1 4 : i l D D6
|
i
BACK PANEL ! !
{
!
Label | Number of | Description
Conductors
D1 2 Transfers +12 V to Video Board.
D2 3 Transfers +12 V and +5 V to Disk Drives.
D3 2 Transfers +5 V to Keyboard Fiiter Board.
D4 1 Power switch.
DS 2 Transfers high and low AC to Power Unit.
D6 S Transfers +5 V (regulated DC), +12V and -12 V to SBC,
D7 2 Transfers AC power from Power Unit to fan.
D38 2 Resets SBC.
D9 1 Fuse,
D10 1 Connects power switeh with fuse.
- !
I 9-2
