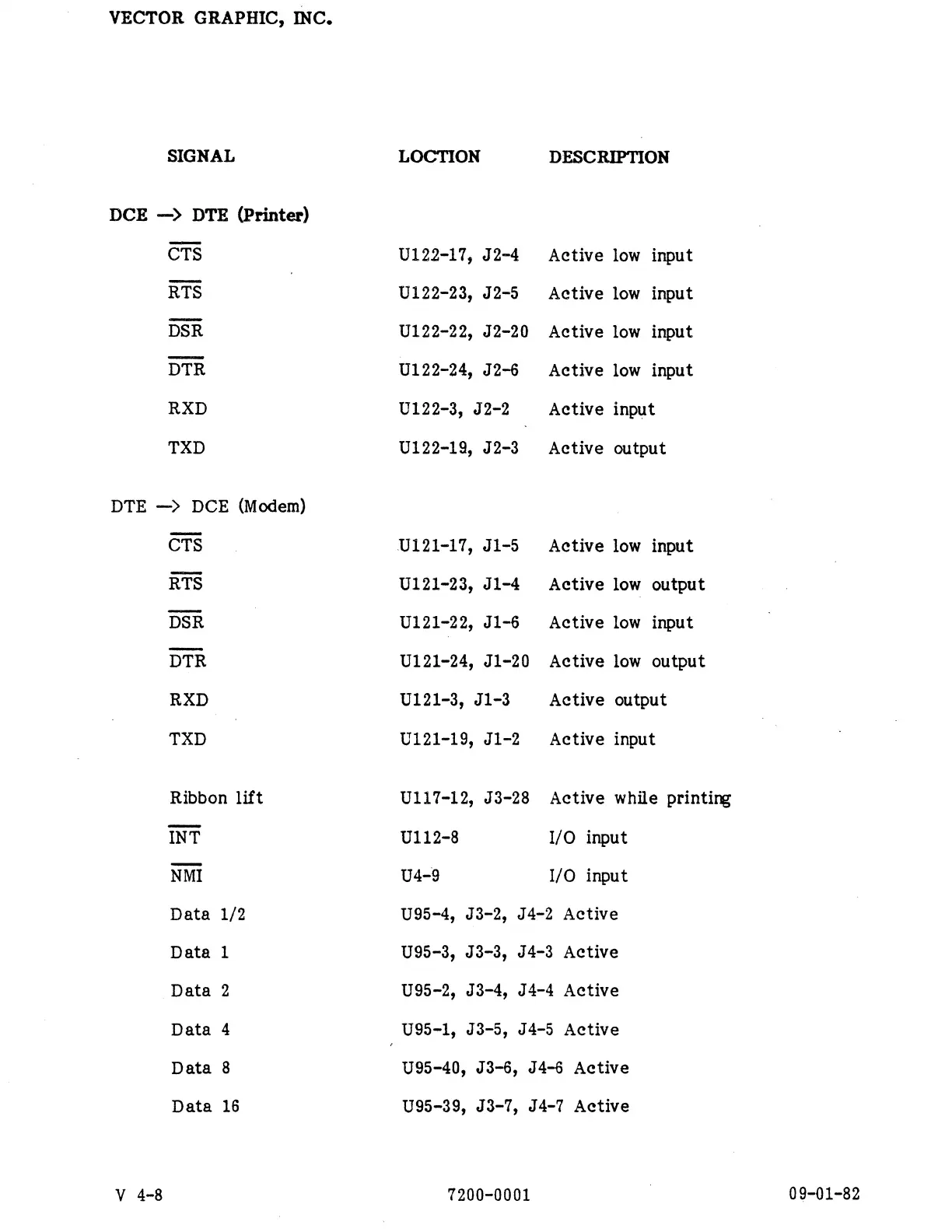

VECTOR GRAPHIC, INC.
DCE —> DTE (Printer)
DTE —> DCE (Modem)
V 4-8
SIGNAL
CTS
RTS
DSR
DTR
RXD
TXD
CTS
RTS
DSR
DTR
RXD
TXD
Ribbon lift
INT
NMI
Data
Data
Data
Data
Data
Data
1/2
16
LOCTION
U122-17, J2-4
U122-23, J2-5
U122-22, J2-20
U122-24, J2-6
U122-3, J2-2
U122-19, J2-3
U121-17, J1-5
U121-23, J1-4
U121-22, J1-6
U121-24, J1-20
U121-3, J1-3
U121-19, J1-2
U117-12, J3-28
U112-8
U4-9
DESCRIPTION
Active low input
Active low input
Active low input
Active low input
Active input
Active output
Active low input
Active low output
Active low input
Active low output
Active output
Active input
Active while printing
I/0 input
I/0 input
U95-4, J3-2, J4-2 Active
U95-3, J3-3, J4-3 Active
U95-2, J3-4, J4-4 Active
U95-1, J3-5, J4-5 Active
U95-40, J3-6, J4-6 Active
U95-39, J3-7, J4-T7 Active
