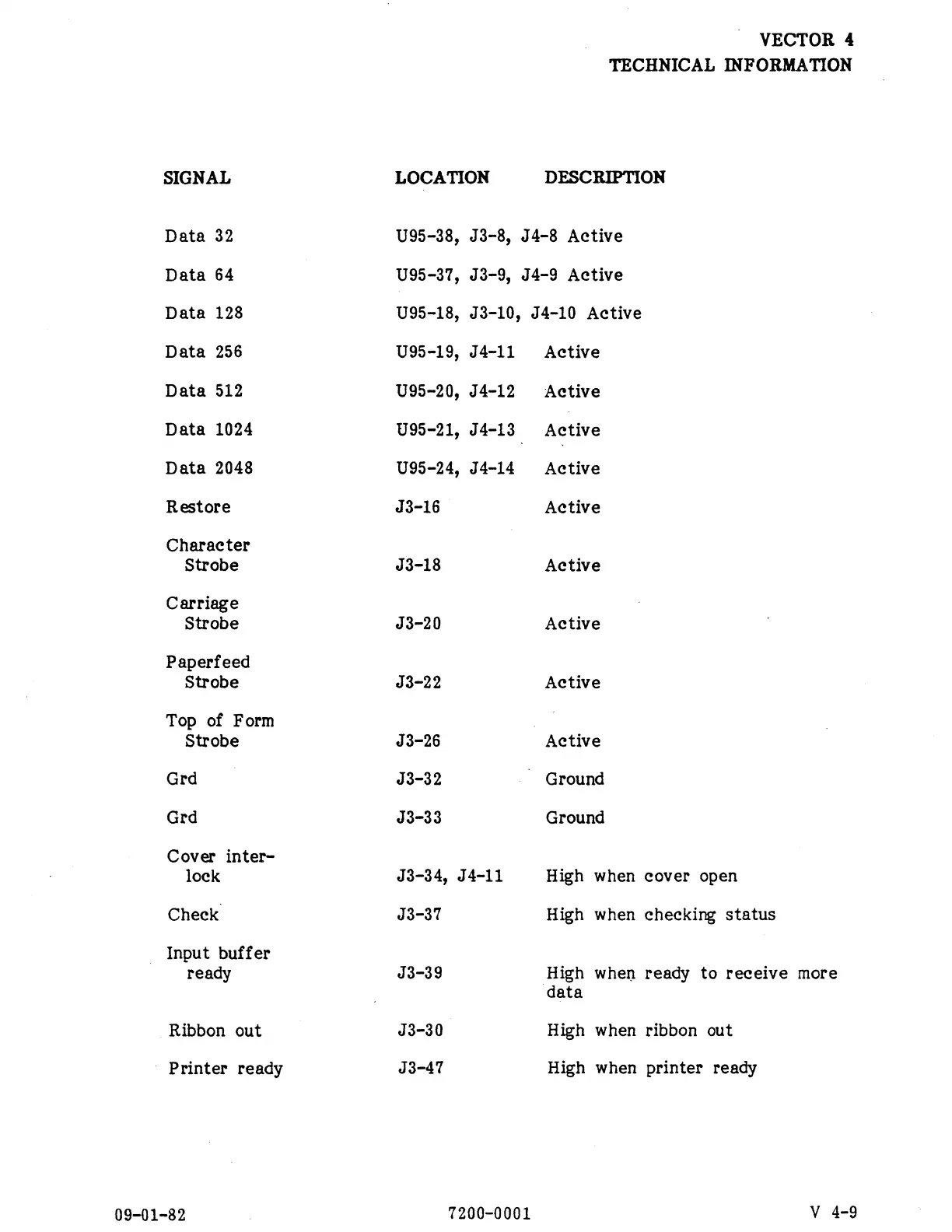

VECTOR 4
TECHNICAL INFORMATION
SIGNAL LOCATION DESCRIPTION
Data 32 U95-38, J3-8, J4-8 Active
Data 64 | U95-37, J3-9, J4-9 Active
Data 128 U95-18, J3-10, J4-10 Active
Data 256 U95-19, J4-11 Active
Data 512 U95-20, J4-12 Active
Data 1024 U95-21, J4-13 Active
Data 2048 U95-24, J4-14 Active
Restore J3-16 Active
Character | '
Strobe J3-18 Active
Carriage
Strobe J3-20 Active
Paperfeed
Strobe J3-22 Active
Top of Form |
Strobe J3-26 Active
Grd J3-32 ~ Ground
Grd J3-33 Ground
Cover inter-
lock J3-34, J4-11 High when cover open
Check J3-37 High when checking status
Input buffer
ready J3-39 ‘High when ready to receive more
data
'Ribbon out | J3-30 High when ribbon out
- Printer ready J3-47 High when printer ready
09-01-82 | 7200-0001 V 4-9
