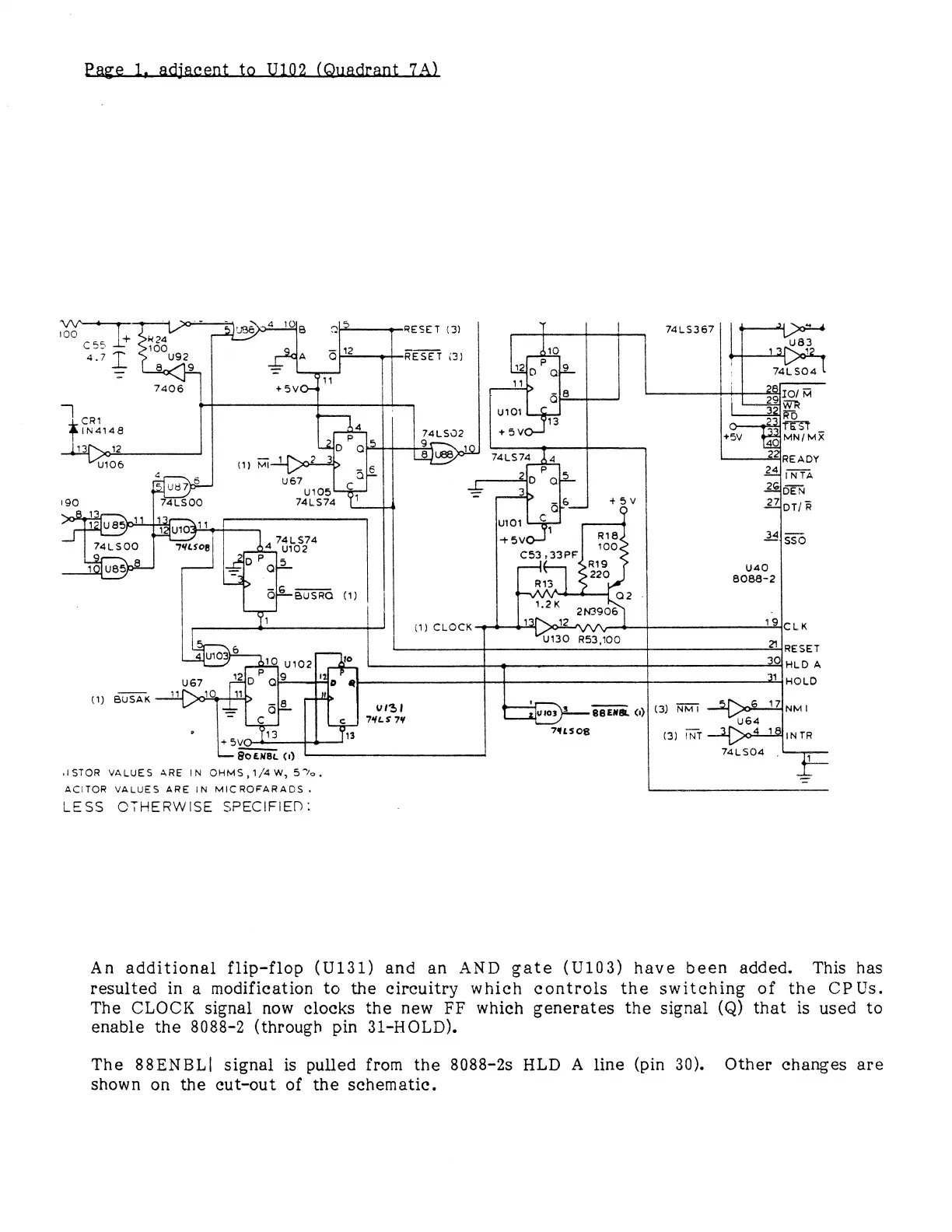

An additional flip-flop (U131) and an AND gate (U103) have been added.
resulted in a modification to the circuitry which controls the switehing of the CPUs.
The CLOCK signal now clocks the new FF which generates the signal (Q) that is used to
enable the 8088-2 (through pin 31-HOLD).
The 88ENBL| signal is pulled from the 8088-2s HLD A line (pin 30).
shown on the cut-out of the schematic.
Other changes are
This has
