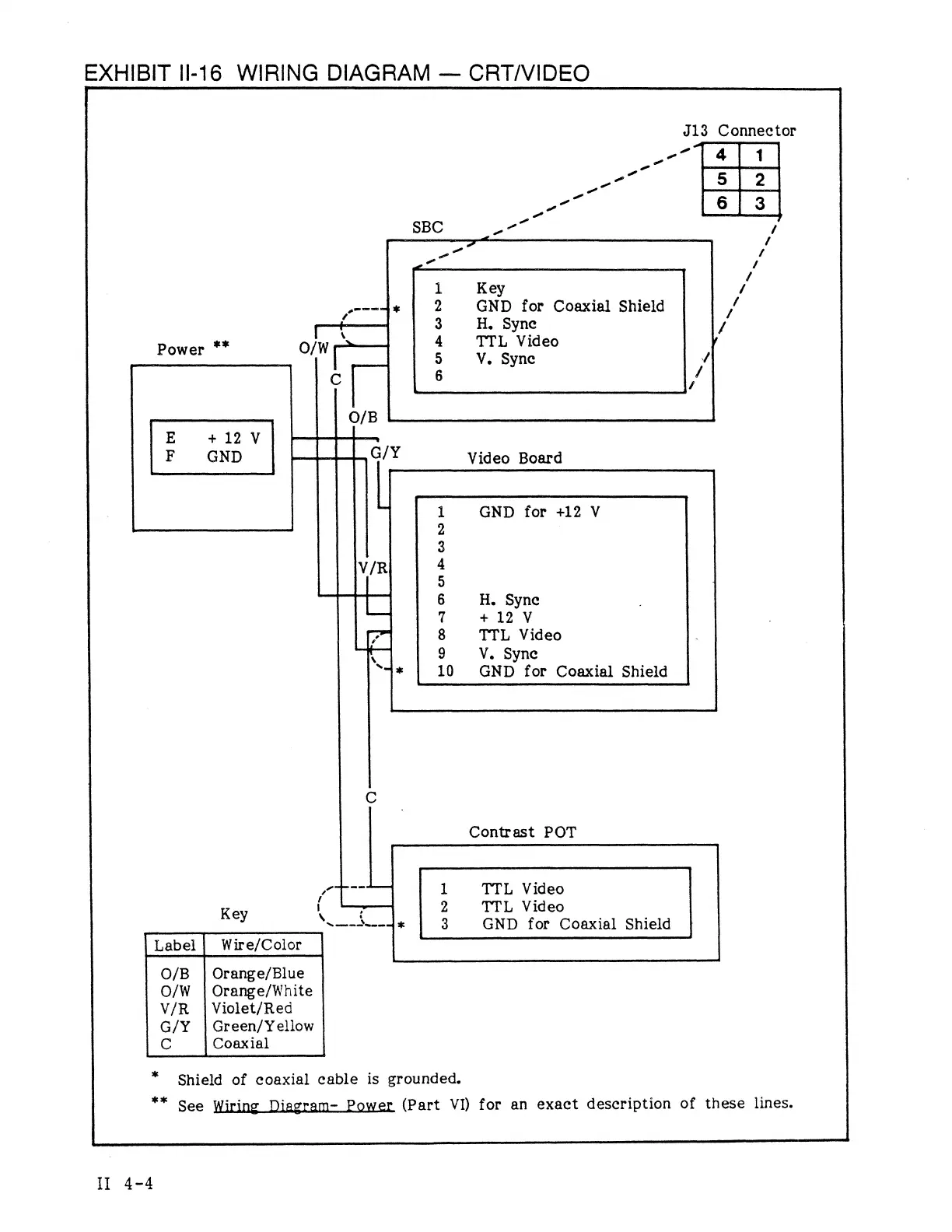

EXHIBIT lI-16 WIRING DIAGRAM — CRT/VIDEO
J13 Connector
_-"1 4 1
/,/’ 51 2
- 6| 3
// w____a..........._:}
SBC . /
et /
- /
- /
/
1 Key /
om——* 2 GND for Coaxial Shield ,’
I — 3 H. Syne /
Power ** O/W : | 4 TTL Video y
l 3 V. Sync o/
C 6 )/
O/B
E +12 Vv | —
F GND G[Y Video Board
1 GND for +12 V
2 .
| 3
V/R 4
5
6 H. Sync
— T +12V
> 8 TTL Video
. 9 V. Sync
S 10 GND for Coaxial Shield
C
Contrast POT
,1" = 1 TTL Video
Key | re 2 TTL Video
Mk 3 GND for Coaxial Shield
Label | Wire/Color
O/B | Orange/Blue
O/W | Orange/White
V/R | Violet/Red
G/Y | Green/Yellow
C Coaxial
* Shield of coaxial cable is grounded.
**
