TCI-W13, TCI-W23 Universal Controller
CONTROL LOOP CONFIGURATION

Doc: 70-00-0365C, V2.0, 20220523   © Vector Controls GmbH, Switzerland   Page 14-22
Subject to alteration

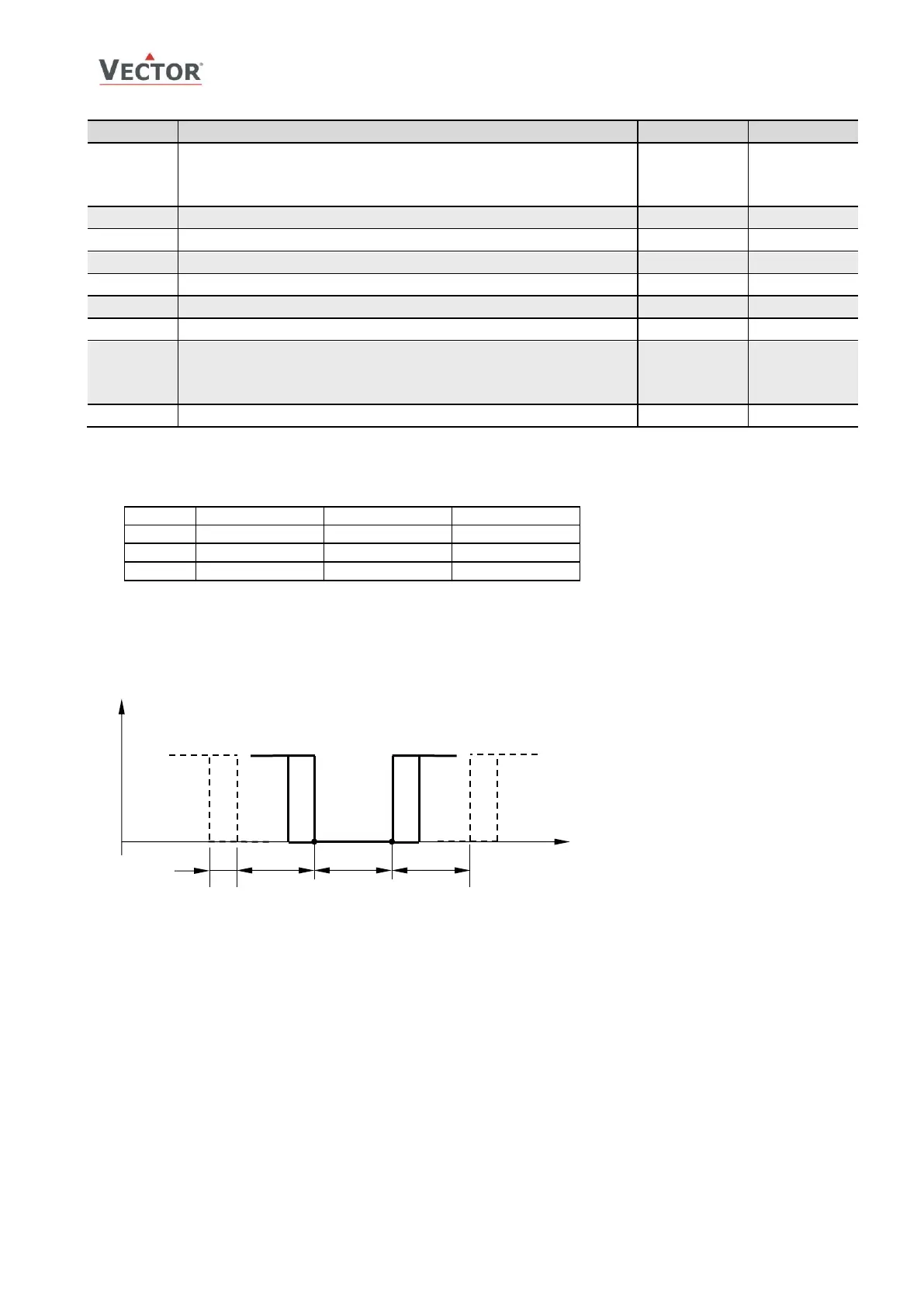

Digital control sequence
Action of stages:
0= cumulative: stage 1 stays on when 2 on comes on
1= single: stage 1 turns off when 2 on comes on
2= digital: stage 1 only, stage 2 only, then stage 1 plus 2
Offset for heating/reverse binary sequences
Offset for cooling/direct binary sequences
Activation of reverse/direct (heat/cool) sequence
OFF=   activates based on demand
ON  =  follows heat/cool state of controller: Set manually or by
auxiliary function (FU20-FU23)
Delay for heat /cool changeover when L23=OFF

➔  Cumulative stage action (L16=0) is typically used in electric heat applications, and single stage action (L16=1) in fan
speed applications. Digital stage action (L16=2) is especially useful in electric heat applications to generate three
steps with just two outputs. For example: Step 1=100W, step 2=200W, step 3=300W.







➔  Switching hysteresis (L21) is the difference between switching on and switching off. A small hysteresis will increase
the number of switching cycles and thus the wear on associated equipment.
➔  With switching delay (L22) cumulative stages will not switch on simultaneously. With a sudden demand or initial
power stage 2 will not start earlier than 10 seconds (default value) after stage 1 has been initiated.



Legend
T, U  Input signal
O
SH
  Offset heating/direct
O
SC
  Offset cooling/reverse
X
DZ

Dead zone
X
SBY

Economy set point shift
W
H
  Set point heating/reverse
W
C
  Set point cooling/direct
Q
C
, Q
D
Binary sequences cooling/direct
Q
H
, Q
R
Binary sequences heating/reverse
