Vector JUMP-START SYSTEM User Manual

5

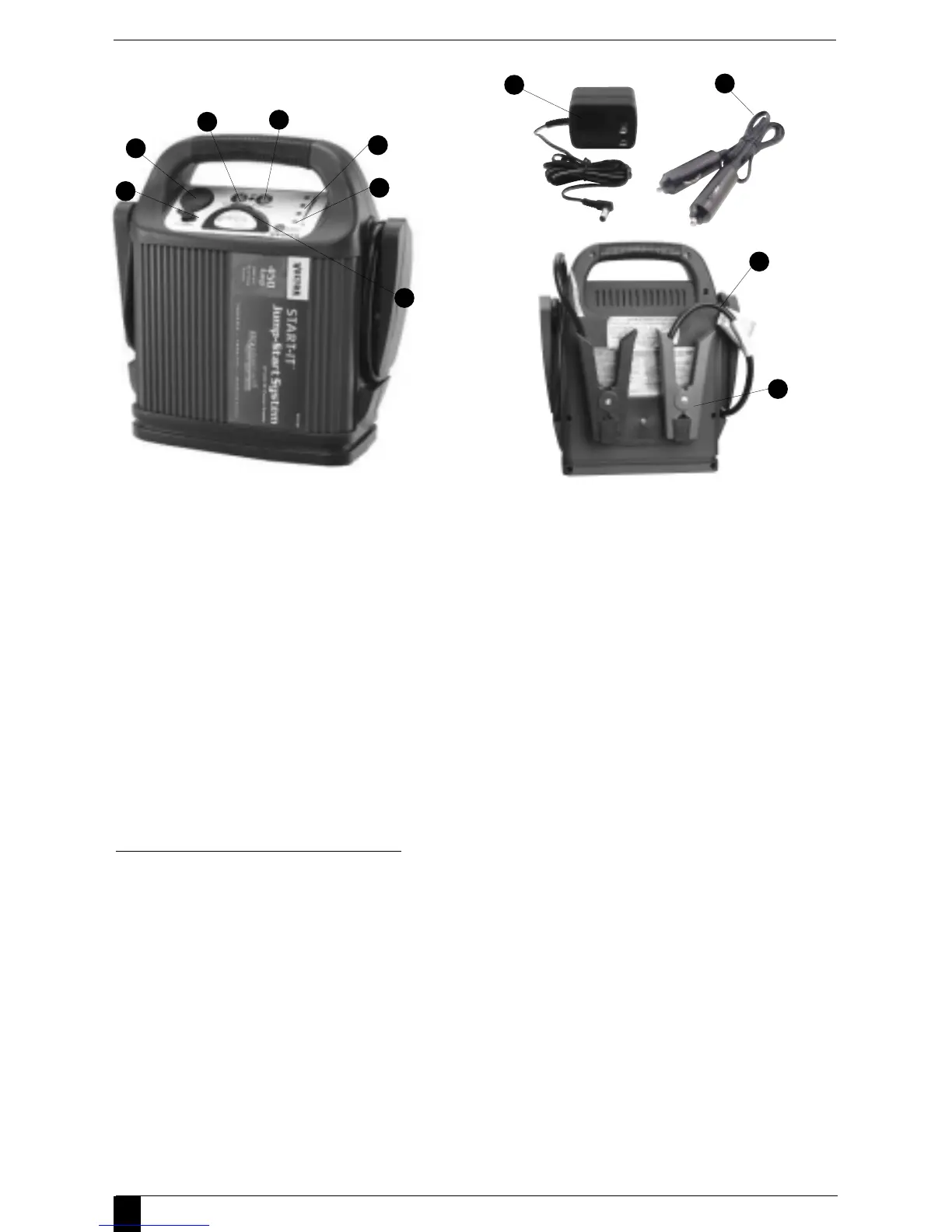

FIGURE 1A (Front View) FIGURE 1B (Rear View)
1. Reverse connection indicator
2. Good connection indicator
3. 12 Volt DC Accessory Socket with 20 amp overload protection
4. Battery Level Push Button
5. LED Charging/Battery Level Indicators
6. Heavy-Duty Welding Quality Jumper Cables
7. Heavy-Duty 450 Amp Clamps
8. 110/120 Volt UL approved AC/DC Charging Adapter
9. 12 Volt DC/DC Charging Adapter
10. Light ON/OFF Switch
11. AC Recharge Adapter barrel connector receptacle
11. Area Worklight
ADDITIONAL FEATURES
•
Includes non-spillable, maintenance-free, heavy-duty, new high energy density
19 Amp hour, sealed battery
•
Sturdy and unique compact design provides up to 35 hours of completely portable
12 Volt DC power
•
Safe to use, transport, and store. Includes an audible polarity alarm
•
Requires no maintenance (other than recharging) for optimum operation
•
Automatic taper charge for AC recharge
•
Audible alarm for reverse polarity
•
Molded high-impact case is tough and durable
•
Built-in emergency/worklight with long lasting LED’s for roadside repairs and
use in remote locations without utility power
CAUTION: Use only adapters supplied with this unit. Never insert any other
adapters into the charging or power receptacles on this unit.
3
1
2
5
11
10
4
9
8
6
7

Vector JUMP-START SYSTEM Specifications

Power

peak ampere	1200 Amps
boost ampere	450 Amps
instantaneous cranking amps	450 Amps

Battery

battery type	12Volt, 19AH/20HR Sealed, Rechargeable Non-Spillable, Maintenance-free
dc charging adapter	12 Volt DC
ac charging adapter	110/120 Volt AC (700mA, 12 Volt DC Output)

Cables and Clamps

jumper cables	Heavy Duty, Welding Cable
cables clamps	450 Amp, Heavy Duty Clamps
reverse polarity detection	2.5 Volts (min)

Weight and Dimensions

height	12.75 in (32.39 cm)
width	11 in (27.94 cm)
depth	5.5 in (13.97 cm)
weight	16 lbs (7.26 Kg)
