Vectronics VEC-1290K - PARTS PLACEMENT DIAGRAM

VEC-1290K Instruction Manual AM
Switches/Jacks/Misc.:
0
Qty Part Description
Radio Transmitter
Kit
Designation
1
DPDT
p
ush-action switch SW1
1 RCA phono jack, PC-mounted J1
1 2.1 mm DC coaxial power jack J2
5 2-pin PC board mount headers JMP1,2,3,4,5
2 2-pin jumpers, shorting
1
16-pin IC socket
18-
p
in IC socket
1 4" nylon cable tie
1PC board
1 6' length of insulated 20-AWG solid wire ANTI

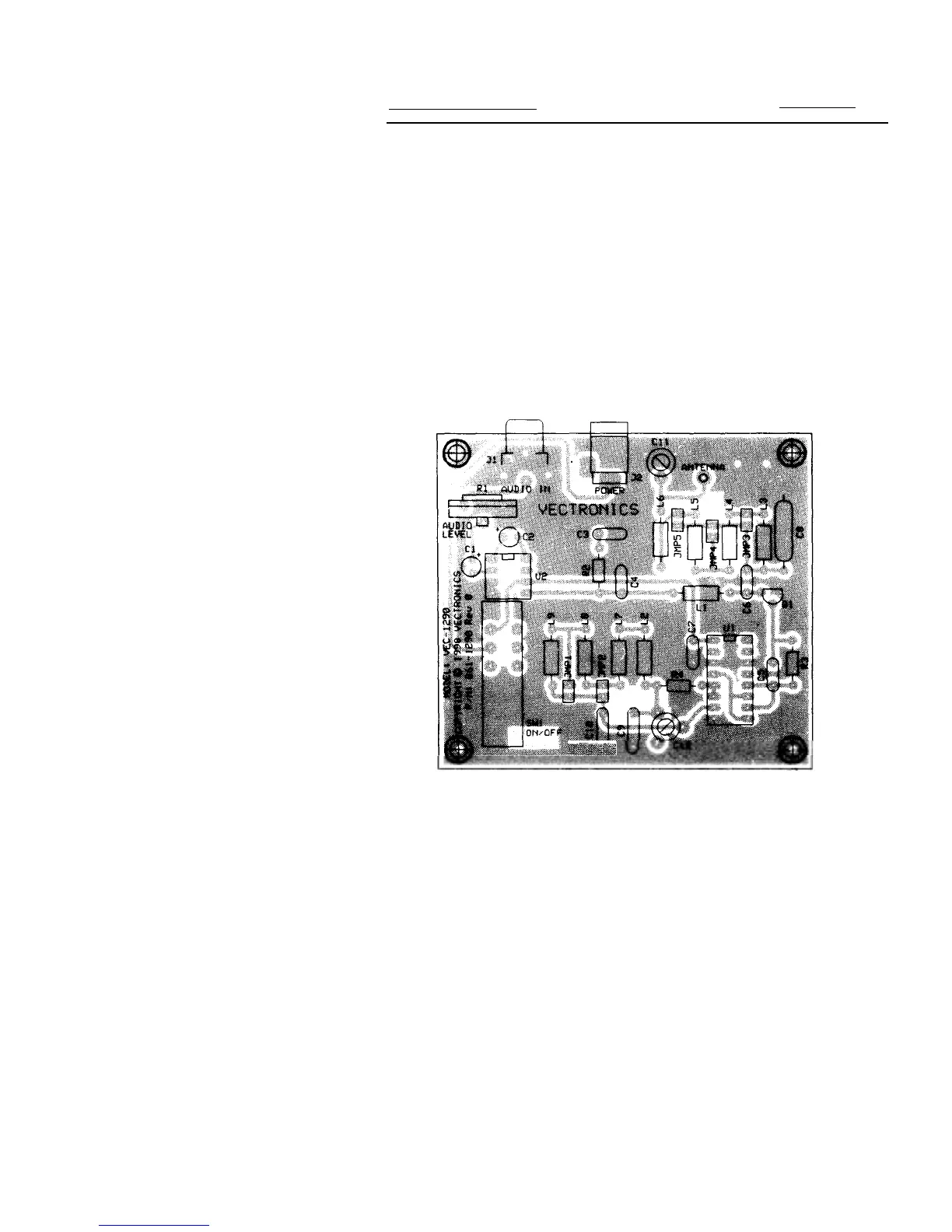

PARTS PLACEMENT DIAGRAM
