7

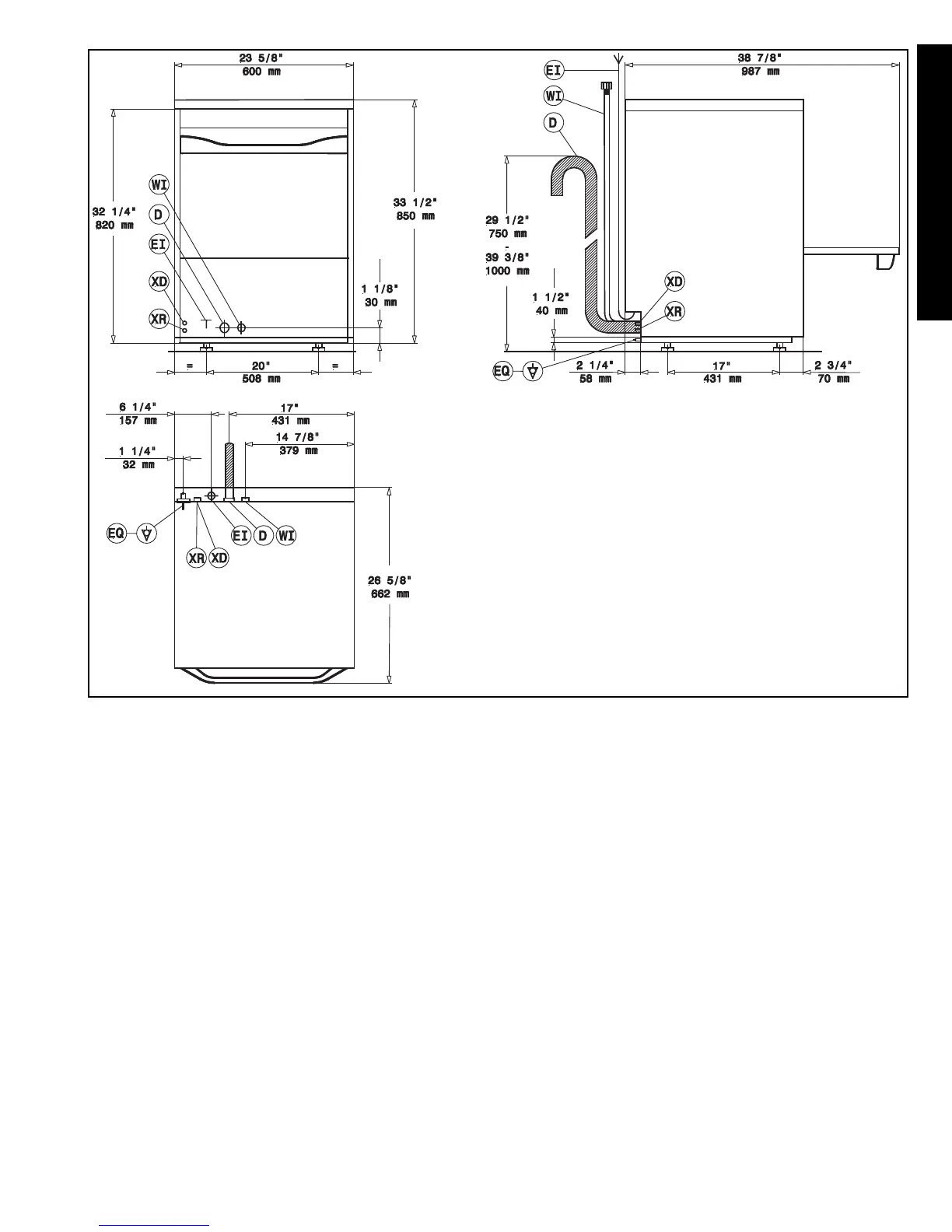

Figure 4
Legend Figure 4
WI - Water inlet pipe with 3/4”dia/19mm fittings
D - Outlet pipe 1 5/8” ID /40 mm (^) –11/16” ID /18 mm (*).
EI - Power supply
XD - Detergent connection
EQ - Equipotential (Ground) screw
XR - Rinse aid connection
(^) - Only for model with free-fall drainage
(*) - Only for model with drain pump
