Pg.5

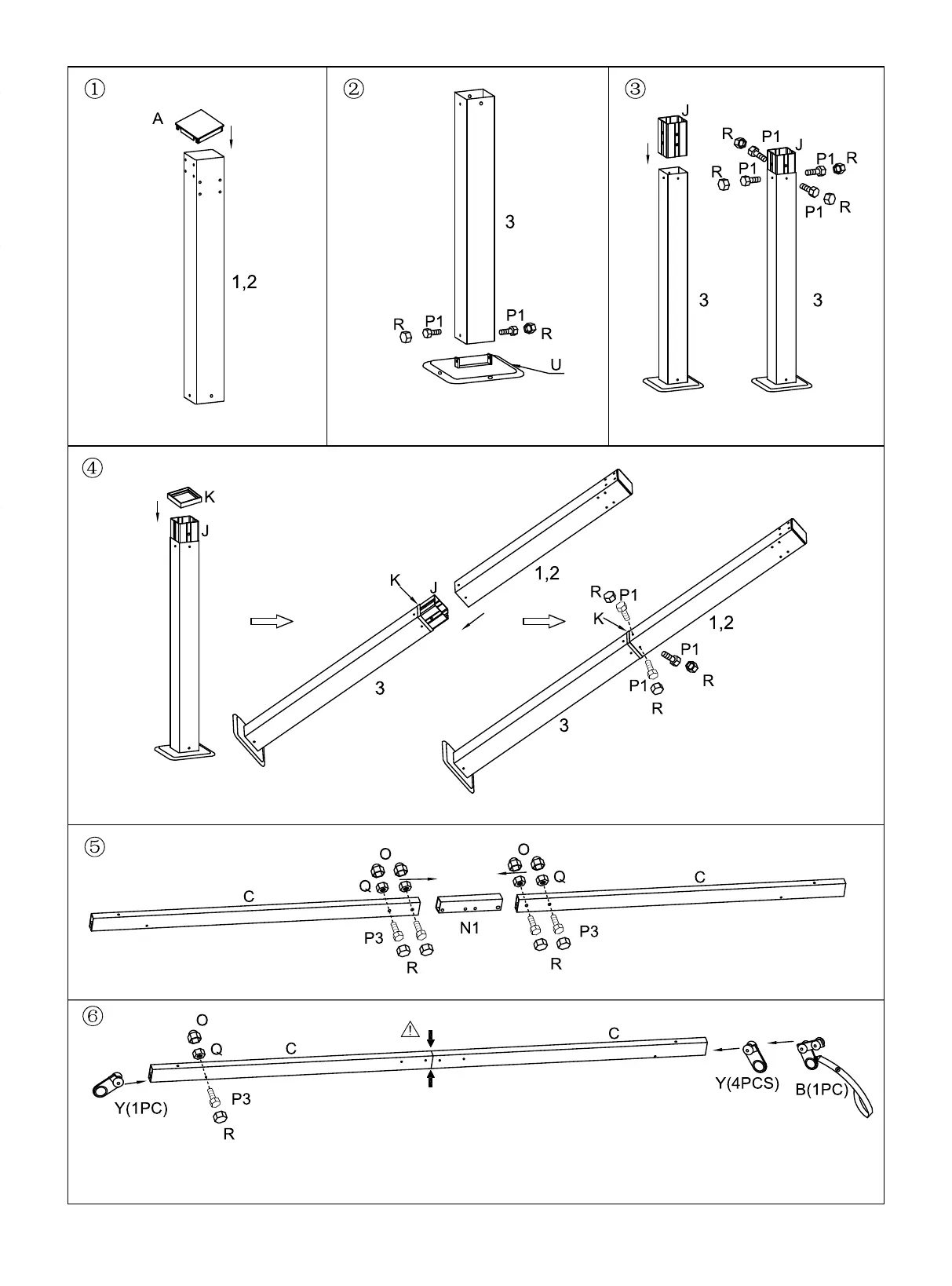

Attach post top cap (A) to post (1 & 2)
Attach and fasten stake piece (U) to the
end of post (3) by bolt (P1) and cap (R)
Insert post connector (J) into post (3) by
bolt (P1) and bolt cap (R)
Attach decorative circle (K) to post (3), and attach post (1 & 2) to post (3) by bolt (P1) and bolt cap (R)
Connect two middle cross beams (C) with inside
connector (N1) by bolt (P3) & nut (Q) & nut cap(O)
& bolt cap (R) to make sure that there is no gap
between the two middle cross beams (C) by tighting
the bolts
Assemble 5pcs of middle glidewheels (Y) and drawstring glidewheels with magnet (B) into
middle cross beam (C). Seperate the middle glidewheels (Y) by using bolt (P3) & nut (Q) &
nut cap (O) & bolt cap (R)
Attention: please joint two tubes together without gap and then assemble the screws
To Next Page
