Pg.6

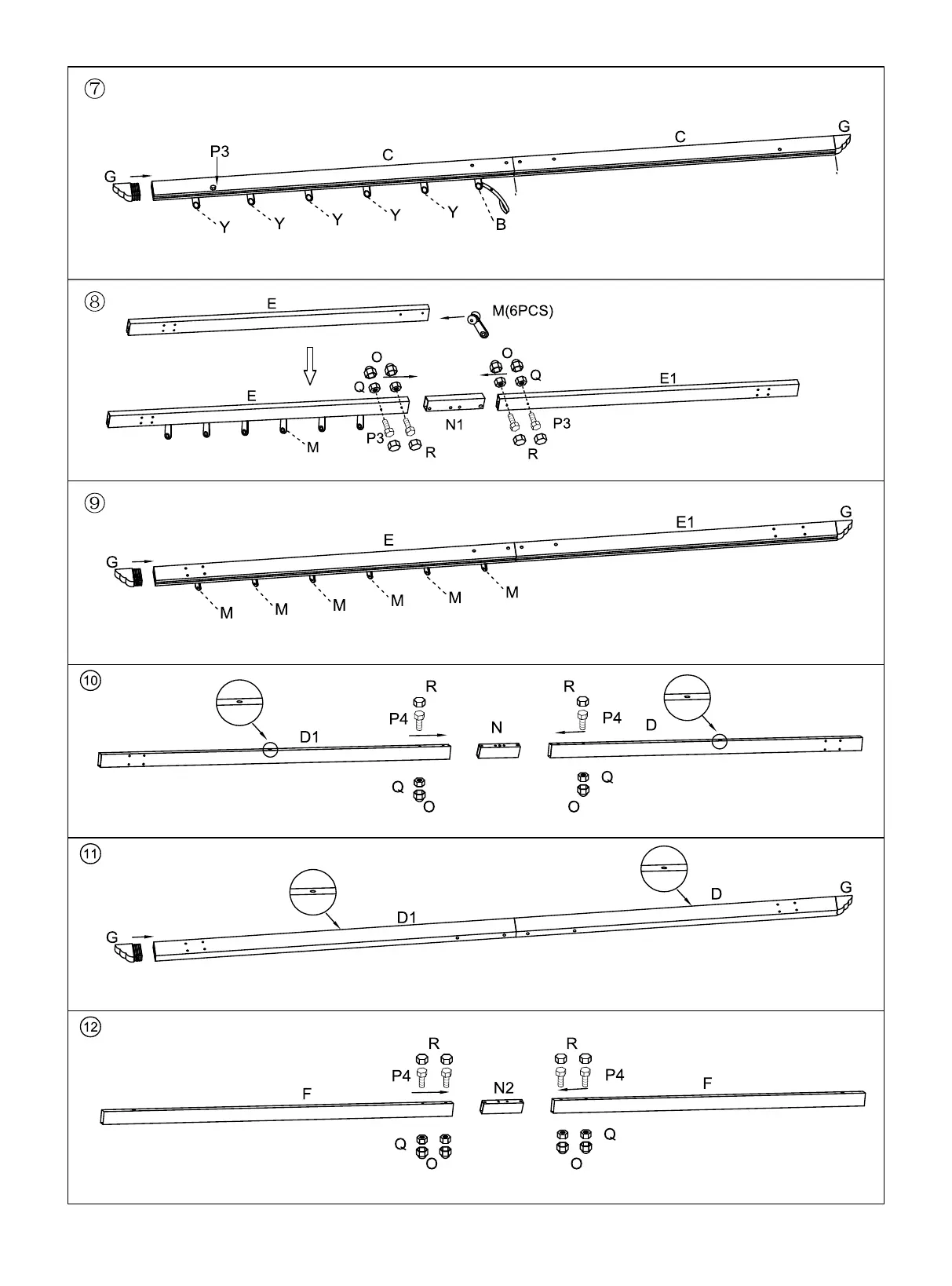

Attach triangle cap (G) to assembled
middle cross beam (C)
Assemble six side glidewheels (M) into side cross beam (E),
and then connect side cross beam 1 (E) & side cross beam
2 (E1) with inside connector (N1) by bolt (P3) & nut (Q) &
nut cap(O) & bolt cap (R) to make sue there is no gap
between the two tubes by tighting the bolt
Connect bottom cross beam 1 (D) and bottom cross
beam 2 (D1) with inside connector (N) by bolt (P4) &
nut (Q) & nut cap(O) & bolt cap(R) to make sue there
is no gap between the two tubes by tighting the bolt.
Make sure the bottom cross beam 1 & 2 (D & D1) is
in the same direction
Connect two enhanced support beams (F) with
inside connector (N2) by bolt (P4) & nut (Q) & nut
cap (O) & bolt cap (R) to make sue there is no gap
between the two tubes by tighting the bolt
Attach triangle cap (G) to side cross beam 1 & 2 (E & E1)
Attach triangle cap (G) to assembled bottom cross beam (D & D1)
