Velleman K2639 - Product Testing Procedures; Power Connection and Initial Checks

7

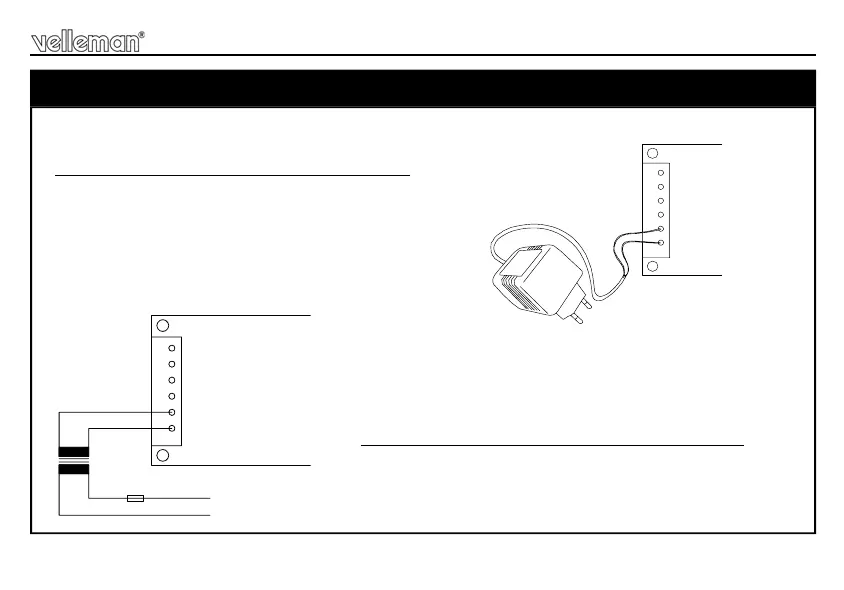

 Inspect the completed board thoroughly before connecting a power supply.
 When applying a DC voltage (16 to 18V/100 mA) :
The positive input should go to the pin nearest “AC IN”, the negative input
to the second pin (Fig 1.0).
 For connecting a transformer (12 to 14V/min 300 mA):
The connection sequence isn’t important (Fig 2.0).
15. Testing
Testing
NO
C
VR1
NC
ACin
ACin
-
+
ADAPTER
(16-18VDC/100mA)
Fig 1.0
NO
C
VR1
NC
ACin
ACin
L
N
120 - 230 VAC
2x 7.5VAC
300mA
Fig 2.0
